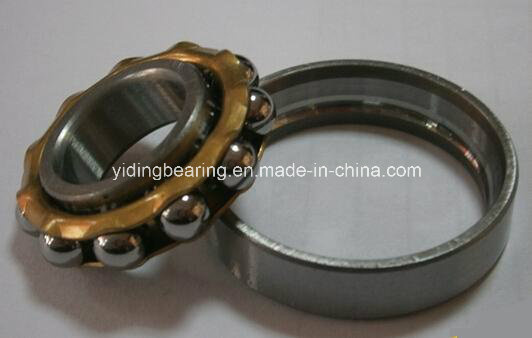

Good quality Magneto bearing M20 E19 E20 L20 motor bearing
Quick Details
Structure: |
Deep Groove |
Type: |
Ball, Copper Paul Magneto Bearings |
Brand Name: |
YD |
Bore Size: |
7 - 120 mm |
Outside Diameter: |
22 - 265 mm |
Model Number: |
E20 E15 EN15 BO17 |
Precision Rating: |
P0 P2 P4 |
Seals Type: |
OPEN ZZ 2RS |
Number of Row: |
Single Row |
Place of Origin: |
Shandong, China (Mainland) |
Brand: |
YD |
Material: |
chrome steel,stainless steel, ceramic |
Package: |
plastic bags,cartons |
Certification: |
ISO9001,BV |
OEM service: |
Yes |
Color: |
black or white |
Name: |
E series Magneto Bearings E20 E15 EN15 BO17 for Engraving machine |
Model number: |
E10 |
used: |
Engraving machine |
Specifications:
electric motor motorcycle magneto bearing E20 E15 EN15 BO17
1.Wide range of use
2.Delivery in time
3.Factory price
4.High qualit
Packaging & Delivery:
Packaging Detail: Standard packaging carton packaging OEM service
Delivery Detail: 5-15days
Advantage of E series Magneto Bearings E20 E15 EN15 BO17 for Engraving machine |
1, excellent corrosion resistance
2, washable
3, can run on liquid: Due to the materials used, we can run the bearings and bearing in the liquid.
4, if the speed and the load is low, there is no need for lubrication.
5 Health: stainless steel natural clean, non-corrosive.
6, high heat resistance: can run at a higher temperature range of 180 ° F to 1000 ° F. |
| Model | Bore (mm) | OD(mm) | Width(mm) |
| E 3 | 3 | 16 | 5 |
| E 4 | 4 | 16 | 5 |
| E 5 | 5 | 16 | 5 |
| E 6 | 6 | 21 | 7 |
| E 7 | 7 | 22 | 7 |
| E 8 | 8 | 24 | 7 |
| E 9 | 9 | 28 | 8 |
| E 10 | 10 | 28 | 8 |
| E 11 | 11 | 32 | 7 |
| E 12 | 12 | 32 | 7 |
| E 13 | 13 | 30 | 7 |
| E 14 | 14 | 35 | 8 |
| E 15 | 15 | 35 | 8 |
| BO 15 | 15 | 40 | 10 |
| E 16 | 16 | 38 | 10 |
| E 17 | 17 | 44 | 11 |
| EA 17 | 17 | 44 | 10 |
| B0 17 | 17 | 44 | 11 |
| L 17 | 17 | 40 | 10 |
| E 18 | 18 | 40 | 9 |
| E 19 | 19 | 40 | 9 |
| E 20 | 20 | 47 | 12 |
| L 20 | 20 | 47 | 14 |
| M 20 | 20 | 52 | 15 |
| L 25 | 25 | 52 | 15 |
| M 25 | 25 | 62 | 17 |
| L 30 | 30 | 62 | 16
|
Bearing No. reference:
Magneto ball bearings |
| | | Size | FED | HOF | HYA/ND | NDP | TOR | RAM | RHP | RIV |
| E4 | EN4 | 4 | 16 | 5 | | | | ND5-4 | | | | N4 |
| E5 | EN5 | 5 | 16 | 5 | FB5 | | ND5 | ND5 | T5 | | EN5 | N5 |
| E6 | EN6 | 6 | 21 | 7 | | A6 | ND6 | | T6 | M6 | EN6 | N6 |
| E7 | EN7 | 7 | 22 | 7 | | A7 | ND7 | | T7 | | EN7 | N7 |
| E8 | EN8 | 8 | 24 | 7 | FB8 | A8 | ND8 | ND8 | T8 | M8 | EN8 | N8 |
| E9 | EN9 | 9 | 28 | 8 | FB9 | A9 | ND9 | ND10-9 | T9 | M9 | EN9 | N9 |
| E10 | EN10 | 10 | 28 | 8 | FB10 | A10 | ND10 | ND10 | T10 | M10 | EN10 | N10 |
| E11 | EN11 | 11 | 32 | 7 | FB11 | A11 | ND11 | ND11 | T11 | M11 | EN11 | N11 |
| E12 | EN12 | 12 | 32 | 7 | FB12 | A12 | ND12 | ND12 | T12 | M12 | EN12 | N12 |
| E13 | EN13 | 13 | 30 | 7 | FB13 | A13 | ND13 | ND13 | T13 | M13 | EN13 | N13 |
| E14 | EN14 | 14 | 35 | 8 | FB14 | | ND14 | | | M14 | EN14 | N14 |
| E15 | EN15 | 15 | 35 | 8 | FB15 | A15 | ND15 | ND15 | T15 | M15 | EN15 | N15 |
| N3048 | - | 15 | 37 | 8 | | | | | | | | |
| BO15 | - | 15 | 40 | 10 | | | | | | | | |
| E16 | EN16 | 16 | 38 | 10 | FB16 | A16 | ND16 | | | M16 | EN16 | N16 |
| L17 | - | 17 | 40 | 10 | FBL17 | | ND17H | | | | | 7828 |
| E17 | EN17 | 17 | 44 | 11 | FB17 | | ND17 | ND17 | T17 | M17 | EN17 | N17 |
| BO17 | - | 17 | 44 | 11 | FB17 | | ND17 | ND17 | T17 | M17 | EN17 | N17 |
| M17 | - | 17 | 44 | 10 | | | | ND17E | | | | |
| E18 | EN18 | 18 | 40 | 9 | | | ND18 | | | | EN18 | N18 |
| E19 | EN19 | 19 | 40 | 9 | | | ND19 | | T19 | | EN19 | N19 |
| E20 | EN20 | 20 | 47 | 12 | | | ND20 | ND20 | | | EN20 | N20 |
| L20 | - | 20 | 47 | 14 | | | | | | | | |
| M20 | - | 20 | 52 | 15 | | | | | | | | |
| L25 | - | 25 | 52 | 15 | | | | | | | | |
| M25 | - | 25 | 62 | 17 | | | | | | | | |
| L30 | - | 30 | 62 | 16 | | | | | | | | |
| M30 | - | 30 | 72 | 19 | | | | | | | |
|
Zaozhuang Yiding Bearing Co., Ltd. is specialized in bearing, Oil seals export, production, selling and after-service. In practice for many years, we established strict quality assurance system.
Our products range covers Deep Groove Ball Bearings, Cylindrical Roller Bearings, Needle Roller Bearings, Tapered Roller Bearings, Thrust Ball Bearings, Thrust Cylindrical Roller Bearings, Angular Contact Ball Bearings (single row & double row), Linear bearing, Plain shaft(Axis ) series, Linear guide bearing, Rod end bearing, Joint bearing, Radial bearing and Beeline Bearings. They are widely used in applications like including Agriculture, Automotive, Steel industry, Pumps & Compressors, Railways, Mining &Construction, Motorcycles, Electric Motors, Printing and Power Tools, etc.
Our principle is service and quality First! By ceaselessly improve our quality and after-sale service, our products win high praise for our favorable price, excellent service and timely delivery. No matter before or after sales, from quality to price, we have the complete and professional management system. Welcome inquiry by phones or emails. We will sincerely serve you!
