Good Quality - Germany Type Axle 12t 14t 16t
Price: |
US $ 500-600/Piece |
Min Order: |
2/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
BPW |
Loading Weight: |
15t |
Tire Number: |
2 |
ABS: |
with ABS |
Color: |
Blue |
Brake Size: |
420X180 420X200 420X220 |
Type: |
Semi-Trailer |
Product Description

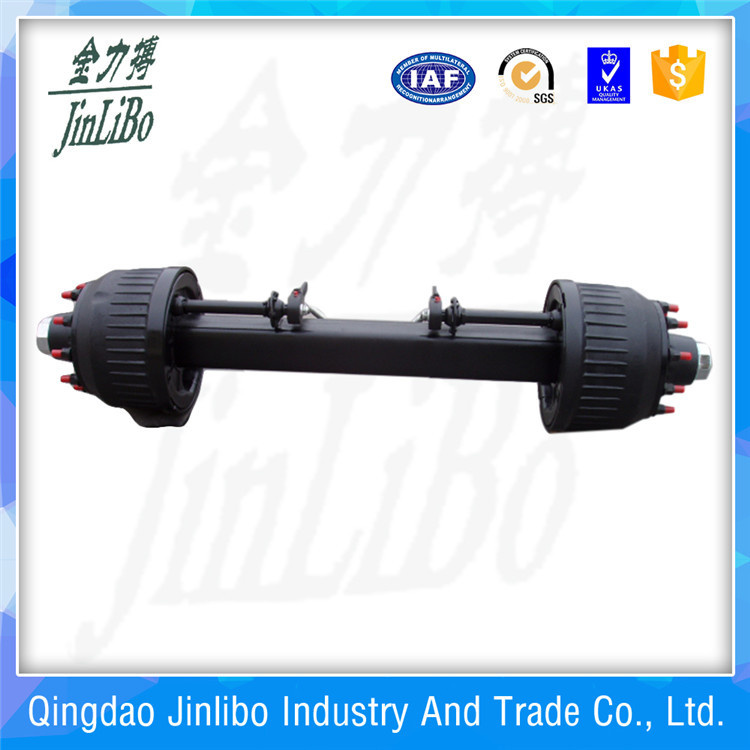

Good quality - Germany type axle 12T 14T 16T
Jin Libo semitrailer axle produced by the company, has reasonable structure, good braking quality, high-intensity, big rigidity, long life, as well as strong bearing capacity, and also passed the national authoritative department's monitor: The fatigue life reaches 1.5 million times without damage, which surpasses national standard. At present, the annul productive ability of Jin Libo semitrailer axle has surpassed ten thousands, widespread using in domestic and overseas, and selling in distant markets in Malaysia, Germany, US, Ecuador and so on.Products features:
1.Special heat-treat,low alloy steel axle beam,it has the vitues of good synthetic
performance,strong loadabilityand lower self weight;
2.High quality alloy solid iserted spindle,through wholy heat treatment,provide
superior fatigue capacity;
3.High performance premium non-asbstos brake linings,extend service life;
4.Easy for ABSinstallation;
5.Camshaft,maching with special seals,can ensure no entry of the grease into the brake
drum,more safety;
6.New tight fit hub cap have O rings,high property for sealing;
7.Grease lubricant is supplied by Mobil that lengthens the time of free maintenance;
8.Full range of stud fixing such as ISO,BSF,and JAP,it can meet the requirements of various wheel rims.We have seven types of axles- American type axles (Inboard type and outboard type )

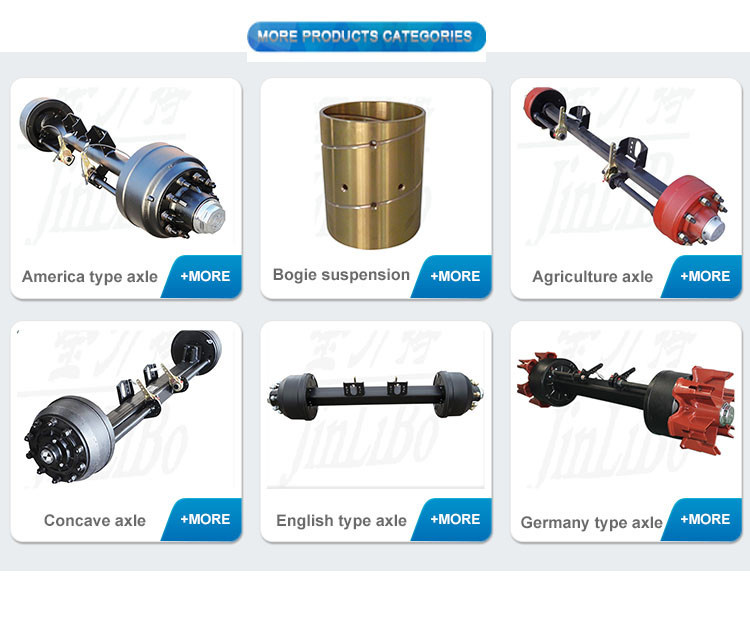

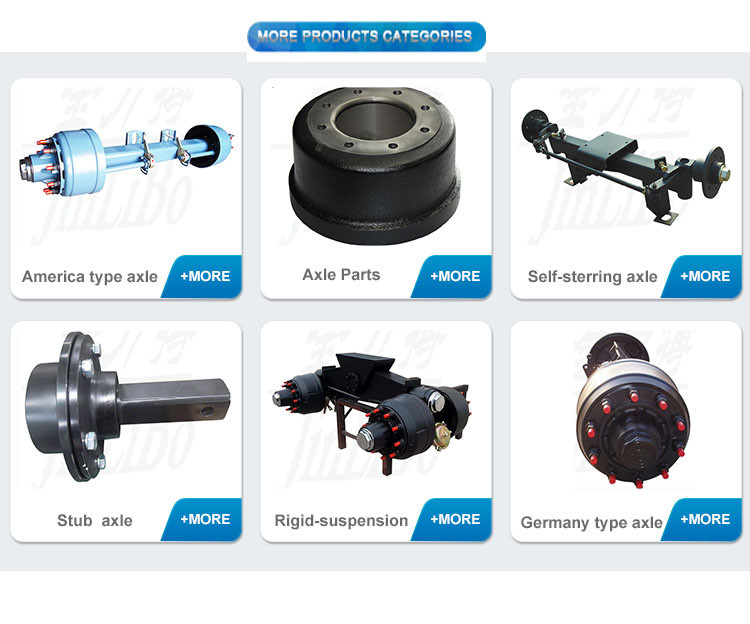

- Germany type axles ( Wheel type and spider type )
- English type axles ( 8 holes, 10 holes / ISO BSF JAP )
- Lowbed axles / concave axles
- Agricultural axles ( With brake, Without brake, Stub axles )
- Steering axles
Type | Germany Type Trailer Axle |
Process | Casting |
Material | Steel |
Capacity | 12T 14T 16T |
Track length | 1840mm, 1850mm, 2040mm, 2050mm, as your requirement |
Axle beam | Round type and square type, 127mm/150mm |
Package | 1.use plastic film winding wheel hub 2.use metal plate fasten between axles 3.axles accessories in the wooden box or carbon boxes Or according to customers' requests |
Delivery | Two weeks after confirm the order |
MOQ | 1 Piece |
Payment | L/C or 30% T/T prepaid, the balance against the copy of B/L |
Certification | ISO9001. TS16948 |
Product& Package | Customization |
Trial order or Sample | Acception |
Axle type | Brake size | Wheel fixing | NO.size of wheel stud | Wheel REG.DIA.(DIM B) | DIM D | Bearing | Min wheel size | Beam size | Axle capacity | Spring seat installation | Weight |
RND1218I | 420x180 | ISO | 10xM22x335 | 281 | 711.5 | 33213 33118 | 8.0-20 | ◊150 | 12t | ≤450 | 370kg |
RN1218J | 420x180 | JAP | 8xM20x285 | 221 | 711.5 | 33213 33118 | 8.0-20 | ◊150 | 12t | ≤450 | 370kg |
RND12220I | 420x200 | ISO | 10xM22x335 | 281 | 721.5 | 33213 33118 | 8.0-20 | ◊150 | 12t | ≤450 | 397kg |
RND1222I | 420x220 | ISO | 10xM22x335 | 281 | 721.5 | 33213 33118 | 8.0-20 | ◊150 | 12t | ≤450 | 410kg |
Q1:Are you a factory?
A:Yes,we are a factory,but not just a factory,as we have sales team,our own offices,and they
all can help the buyers and cooperative partners to decide which products are the best choices
for them,and all your requirements and inquires will be replyed in time.
Q2:What's your Delivery Time?
A:In general, the delivery time is 15-20 days.We will make the delivery as soon as possible with
the guaranted quality.
Q3:What is the convenient way to pay?
A:L/C , T/T,Unionpay,DP are accepted,and if you have a better idea , please be free sharing with us.
Q4:Which type of shipping would be better?
A:Generally,in consideration of the cheap and safe superiorities of sea transportation,we advice
to make delivery by sea.What's more, we respect your views of other transportation as well.
Qingdao Jinlibo Industry And Trade Co., Ltd. is an enterprise primarily in exporting heavy trailer parts. We can produce many kinds of semi-trailer axle and suspension system, supply various semi-trailer parts, skeleton semi-trailer, landing gear, fifth wheel, steel wheel, brake drum, hub, kingpin, brake chamber, adjustment arm, and so on.
Jin Libo semitrailer axle produced by the company, has reasonable structure, good braking quality, high-intensity, big rigidity, long life, as well as strong bearing capacity, and also passed the national authoritative department's monitor: The fatigue life reaches 1.5 million times without damage, which surpasses national standard. At present, the annul productive ability of Jin Libo semitrailer axle has surpassed ten thousands, widespread using in domestic and overseas, and selling in distant markets in Malaysia, Germany, US, Ecuador and so on.
Jin Libo axle is your wise and beneficial choice.
Our main products.
Germany type axle: 16ton 14ton 12ton
English type axle: 16ton 13ton
American type axle 16ton 13ton
Spoke axle, ZM axle, Agriculture axle, Brasilian axle, spoke half axle and axle without brake
SUSPENSION
24ton 28ton 32ton suspension, spoke suspension and 16wheel 45-100t rigid suspension, 45t 65t cross-core suspension. And machinery suspension(3axle and 4axle)
Product characteristics:
1. Specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. High performance premiun non-asbestos brake linings, extend service life
4. Easy fir ABS installation
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. New tight fit hub cap have O rings, high property for sealing
7. Grease lubricant is supplied by Mobil that lengthens the time of free maintance
8. Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims
