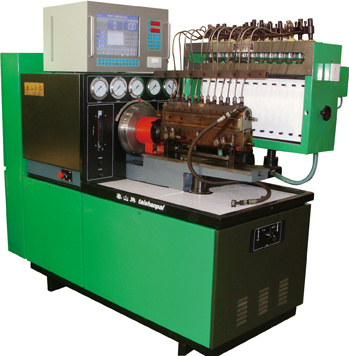

Fuel Injection Pump Test Bench-DB2000 Series

Name: Fuel Injection Pump Test Bench-DB2000 Series
Brand: ibuyautoparts.com
SKU: 621823202
Availability: InStock
Rating: 4.9 (88 reviews)

Price:	Negotiable
Min Order:	1

Contact Supplier

Showroom Product Company Profile

dB2000 series fuel injection pump test bench is is a new digital indicating test stand designed in order to meet customers' demands. It adopts advanced technology of frequency conversion, speed change and industrial controlling computer with the advantages of wide speed-regulation, steady performance and convenience operation. The test stand also has compact structure, reasonable distribution, elegant shape, especially it is easy to install and operate. Technical data includes rotating speed, oil measuring frequency and oil temperature can be indicated digitally and printed easily. It's ideal adjusting equipment of all kinds of injection pump.

MAIN FUNCTIONS

1. The amount and uniformity of oil supply in each cylinder of injection pump

2. The start point and interval angle of oil supply of injection pump

3. The adjusting and testing of speed regulators working performance

4. The test of sealing performance of injection pump

5. The observation of oil return amount of distribution pump at different speed

6. Check pressure compensator of distribution pump

7. Measure the working performance of advance device and air governor

8. Do experiment on air governor with vacuum detector

9. Check the injection pumps electromagnetic valve

TECHNICAL PARAMETERS:

1. Output power: 5.5kw, 7.5kw, 11kw, 15kw, 18.5kw

2. Electronical supply3-Phase 380V/50Hz(or on request)

3. Interaxe height: 125mm

4. Graduates: 45ml, 150ml

5. Volume of fuel tank: 60L

6. Feeding fuel pressure: Low: 0-0.4Mpa High: 0-4Mpa

7. Range of speed: 0-4000RPM

8. Air pressure: 0~0.2

9. Control temperature of fuel oil: 40± 2

10. DC.: 12V/24V

11. Opening pressure: 17.5± 0.2Mpa

12. Testable cylinders of pump: 12
