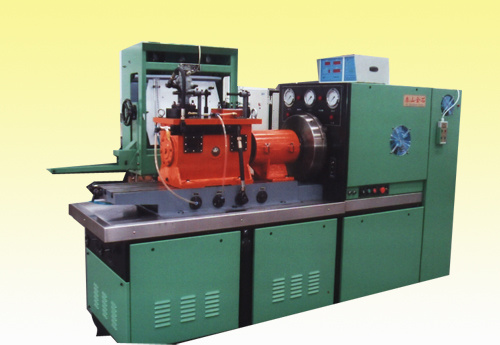

Unit Pump Test Bench

Name: Unit Pump Test Bench
Brand: ibuyautoparts.com
SKU: 621823272
Availability: InStock
Rating: 4.5 (89 reviews)

Price:	Negotiable
Min Order:	1

Contact Supplier

Showroom Product Company Profile

PSD185/220 injection pump test stand adopts advanced technology of frequency conversion speed-adjusting, have excellent speed-adjusting capability. It can be preset speed, stepless variable speed, digital disply of temperature, rotation speed and count. Sound and light timekeeping when pour out the oil. The high temperatures emitted by injector primary was cooled by radiators, the second cooling by refrigeration units can achieve cooling by 40 ± 2 ° C temperature control. The test stand can be adjusted to test the fuel injection pump of diesel locomotive and the corresponding watercrafts fuel injection pump, is a wide using scope, the high-power unit pump test stand.

TECHNICAL PARAMETERS:

1. Output power: 18.5kw, 22kw, 30kw, 37kw

2. Electronical supply-Phase 380V/50Hz(or on request)

3. Fuel supply capacity of fuel system (L / min): 20

4. Graduates: 150ml/260ml, 500ml

5. Volume of fuel tank: ≥ 66L

6. Feeding fuel pressure: Low ≥ 0.4Mpa High ≥ 4Mpa

7. Range of speed: 0-4000RPM

8. Air pressure: -0.1~1

9. Control temperature of fuel oil: 40± 2

10. DC.: 12V/24V

We mainly export automobile maintenance and repair equipments and engine rebuilding machines, such as following:

I. GARAGE EQUIPMNETS
1. Tire changer/ wheel balancer;
2. Nitrogen producing& inflator for tires
3. Car lifts
4. Spray booth/ infrared varnish-baking light series
5. Fuel injection pump test bench
6. Universal collision repair system
7. Four-wheel alignment
8. Auto air-conditioner service machnes
9. Spot welding machine /CO2 protection welding machine
10. Auto parts cleaners series
11. Other equiments

II. ENGINE REBUILDING MACHINES
1. Brake lathe or brake drum/disc cutting machines
2. Valve seats boring machine
3. Cylinder block grinding & milling machine
4. Cylinder fine boring machines
5. Cylinder line boring machines
6. Cylinder body bush boring machine
7. Vertical cylinder honing machine
8. Con-rod boring and grinding machine
9. Crankshaft grinding machines
10. Flywheel & Clutch Plate Grinding Machine
11. Valve grinding machines
12. Brake shoe riveting machines

III. OTHER MACHINES
1. Hydraulic press brake
2. Shearing machines
3. Lathe machines

Welcome to your inquiries, and we're expecting to work with you
