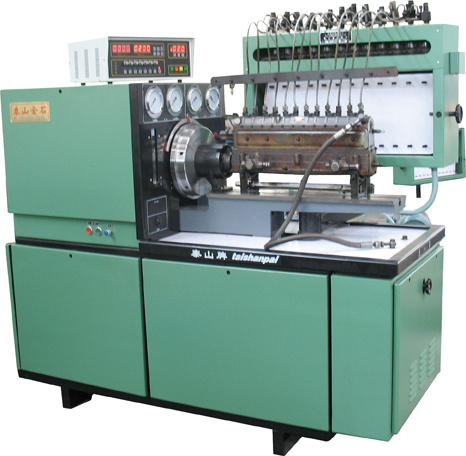

Fuel Injection Pump Test Bench-12PSDB Series

Name: Fuel Injection Pump Test Bench-12PSDB Series
Brand: ibuyautoparts.com
SKU: 621823182
Availability: InStock
Rating: 4.7 (105 reviews)

Price:	Negotiable
Min Order:	1

Contact Supplier

Showroom Product Company Profile

12PSDB series fuel injection pump test bench is design for customer's require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the kind of product with high quality in our business.

Main function

1. The amount and uniformity of oil supply in each cylinder of injection pump

2. The start point and interval angle of oil supply of injection pump

3. The adjusting and testing of speed regulators working performance

4. The test of sealing performance of injection pump

5. The observation of oil return amount of distribution pump at different speed

6. Check pressure compensator of distribution pump

7. Measure the working performance of advance device and air governor

8. Do experiment on air governor with vacuum detector

Technical PARAMETERS:

1. Output power: 5.5kw, 7.5kw, 11kw, 15kw, 18.5kw

2. Electronical supply 3-Phase 380V/50Hz(or on request)

3. Interaxe height: 125mm

4. Graduates: 45ml, 150ml

5. Volume of fuel tank: 60L

6. Feeding fuel pressure: Low: 0-0.4Mpa High: 0-4Mpa

7. Range of speed: 0-4000RPM

8. Air pressure: 0~0.2

9. Control temperature of fuel oil: 40± 2

10. DC.: 12V/24V

11. Testable cylinders of pump: 12

We mainly export automobile maintenance and repair equipments and engine rebuilding machines, such as following:

I. GARAGE EQUIPMNETS
1. Tire changer/ wheel balancer;
2. Nitrogen producing& inflator for tires
3. Car lifts
4. Spray booth/ infrared varnish-baking light series
5. Fuel injection pump test bench
6. Universal collision repair system
7. Four-wheel alignment
8. Auto air-conditioner service machnes
9. Spot welding machine /CO2 protection welding machine
10. Auto parts cleaners series
11. Other equiments

II. ENGINE REBUILDING MACHINES
1. Brake lathe or brake drum/disc cutting machines
2. Valve seats boring machine
3. Cylinder block grinding & milling machine
4. Cylinder fine boring machines
5. Cylinder line boring machines
6. Cylinder body bush boring machine
7. Vertical cylinder honing machine
8. Con-rod boring and grinding machine
9. Crankshaft grinding machines
10. Flywheel & Clutch Plate Grinding Machine
11. Valve grinding machines
12. Brake shoe riveting machines

III. OTHER MACHINES
1. Hydraulic press brake
2. Shearing machines
3. Lathe machines

Welcome to your inquiries, and we're expecting to work with you
