Fsd-L5088 Item Name: Large Tyre Dismounting Machine

Name: Fsd-L5088 Item Name: Large Tyre Dismounting Machine
Brand: ibuyautoparts.com
SKU: 725149522
Availability: InStock
Rating: 4.7 (35 reviews)

Price:	US $ 3500/Set
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Item name: large tyre dismounting machine
Item number: L5088
Product description:

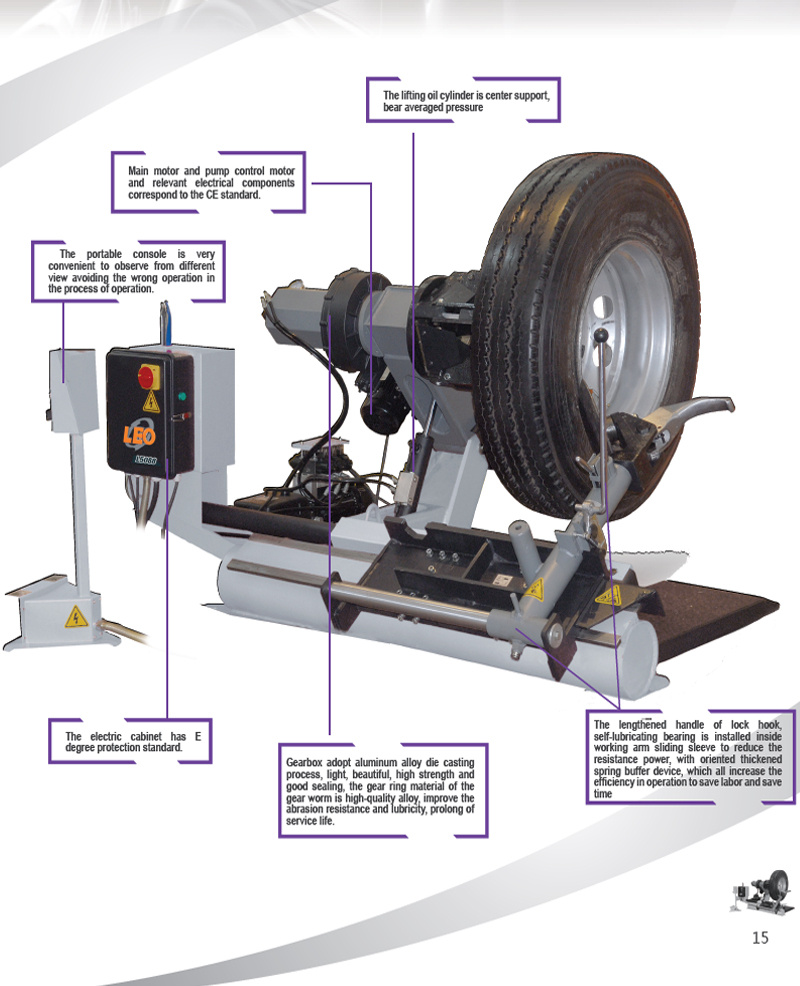

1. the lifting arm cylinder is the center support, the force is even
2. main motor and pumping station motor and related electrical components comply with CE standard
3., light, portable, removable operating table, in the process of operation can be done in all aspects of view, in case of misoperation
4. electric control box adopts E level protection standard
5. , the reducer is made of aluminium alloy village, with light weight, beautiful appearance, high strength, good sealing performance, high quality alloy material for gear ring of worm gear, good wear resistance and lubrication, long service life
6., the elongated hook handle, the tool arm sliding sleeve installed self sliding bearings, moving resistance is small, with the guidance of the thickening of the spring buffer device, so that the operation more labor-saving, time-saving and efficient

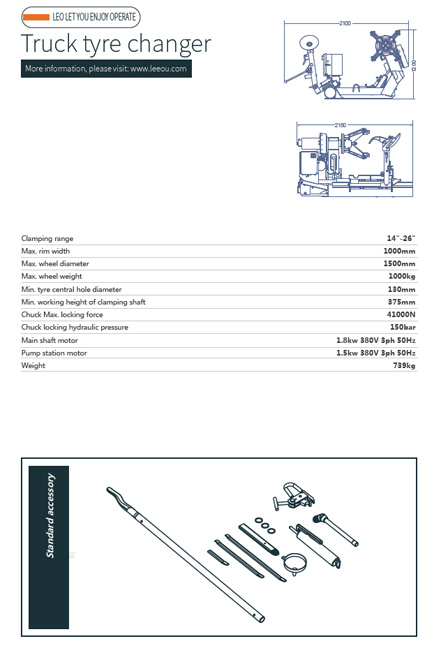

7. main technical parameters
(1) support clamp Rim: 14-26 inches,
(2) maximum tire width: 1000 mm
(3) maximum tire diameter: 1500mm
(4) maximum wheel weight: 1000kg
(5) minimum tire center bore diameter: 130 mm
(6) minimum working height of support clamp shaft: 375 mm
(7) chuck maximum locking force: 41000N.
(8) chuck locking hydraulic pressure: 150bar
(9) claw radial travel: 615 mm
(10) chuck operating opening speed: 102 mm /S.
(11. spindle motor: 1.8KW/380V-3PH, 50HZ
(12) pumping station press: 1.5KW/380v-50hz;
(13) net weight / gross weight 739kg/850kg
(14) standard accessories: see Icon

Prod Model:	FSD-L5088
Colour:	Red, Yellow, Green, Blue
Certification:	ISO
Condition:	New

Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
