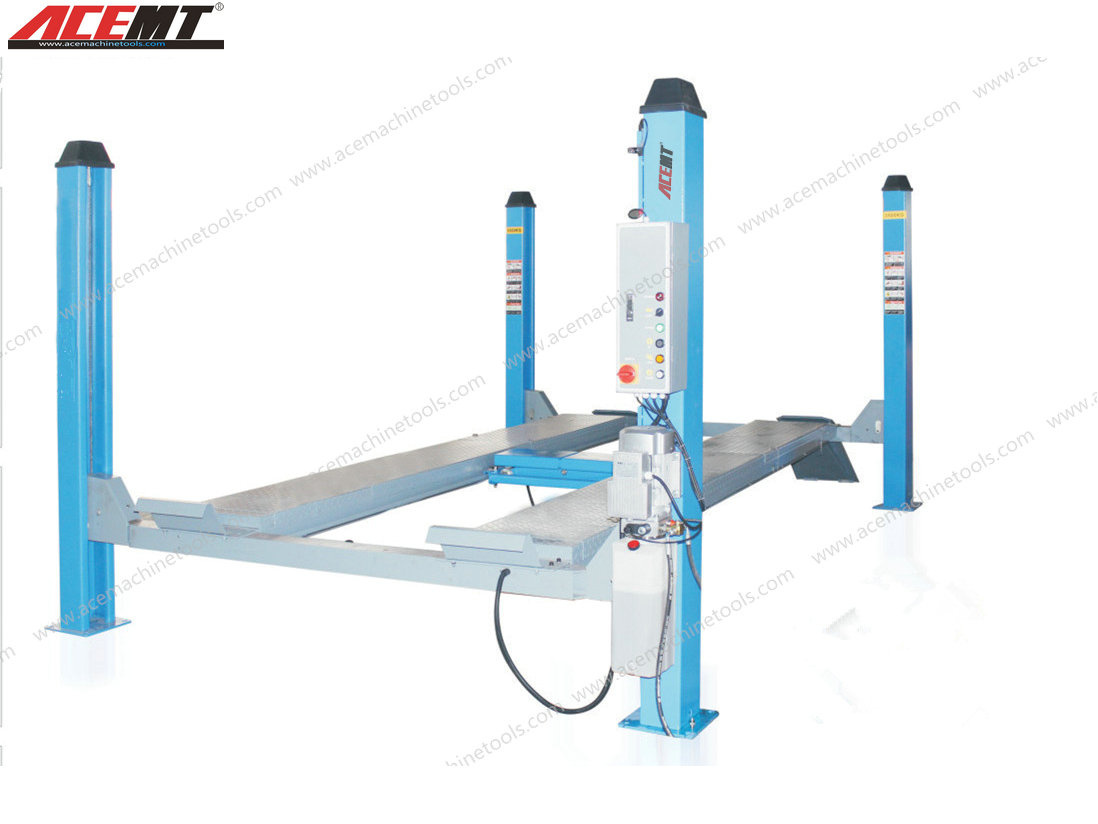

Four Post Lift Electrical Release (ACE435E/440E/450E/455E)

Four Post Lift Electrical Release (ACE435E/440E/450E/455E)
Price: US $ 1000-2000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Contact Supplier
Showroom Product Company Profile

Four Post Lift Electrical Release(ACE435E/440E/450E/455E)
FEATURES:
Adopt hydraulic cylinder drive, quiet and smooth lifting.
Hydraulic power unit configuration throttling device, they can always adjust the rate of decline.
Electrical release.
Adopt electrical Release,four-point locking system. Easy to operate,can be locked in the desired height of operations,safety and reliability.
With wire control security lock set with a wire rope fracture protection,operational safety.
Runway spacing is adjustable for different wheel base vehicles.
With the second lift pulley

TECHNICAL SPECIFICATION:
Liftting Capacity 3500kg/4200kg/5000kg
 Lifting Height1800mm
Min. Height220mm
Overall Length (included slope)5660/5860/5860mm
Overall Width 3150/3230/3230mm
Width Between Columns2750/2930/2930mm
Runway Length4250/4800/4800mm
Runway Width 520/520/500mm
Within the Runway distance860-1200mm
Central jack Height 450mm
Motor Power2.2/2.2/3.0kw
Power Supply220V/240V/380V/415V
Weight1494/1714/1934kg
Packing Size4570*560*730/5100*560*730+820*340*360
Prod Model: ACE435E/440E/450E/455E
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Liftting Capacity: 3500kg/4200kg/5000kg
Lifting Height: 1800mm
Min. Height: 220mm
Type: Double Cylinder Hydraulic Lift
Lifting Capacity: 3.5T
Certification: CE
Design: Two Post
ACE MACHINE TOOLS Co., Ltd, is a specialized exporter and manufacturer of machine tools and accessories with a long history.

Our mechanical products cover more than 80 kinds including lathe, milling machine, drilling machine, grinding machine, power press, hydraulic guillotine, hydraulic press brake, CNC & automotive machines and so on.

Our customers are widespread in more than 30 countries including U. S. A., Germany, Spain, France, England, Greece, Finland, Norway, Canada, south America, Middle East, Australia, Africa and southeast Asia etc.

Our principle to all the customers is high quality and good service. We have quality control team who will carefully inspect every machine in workshop before packing.

Welcome you to visit our website and contact us. We will give you quick response upon any of your need.
