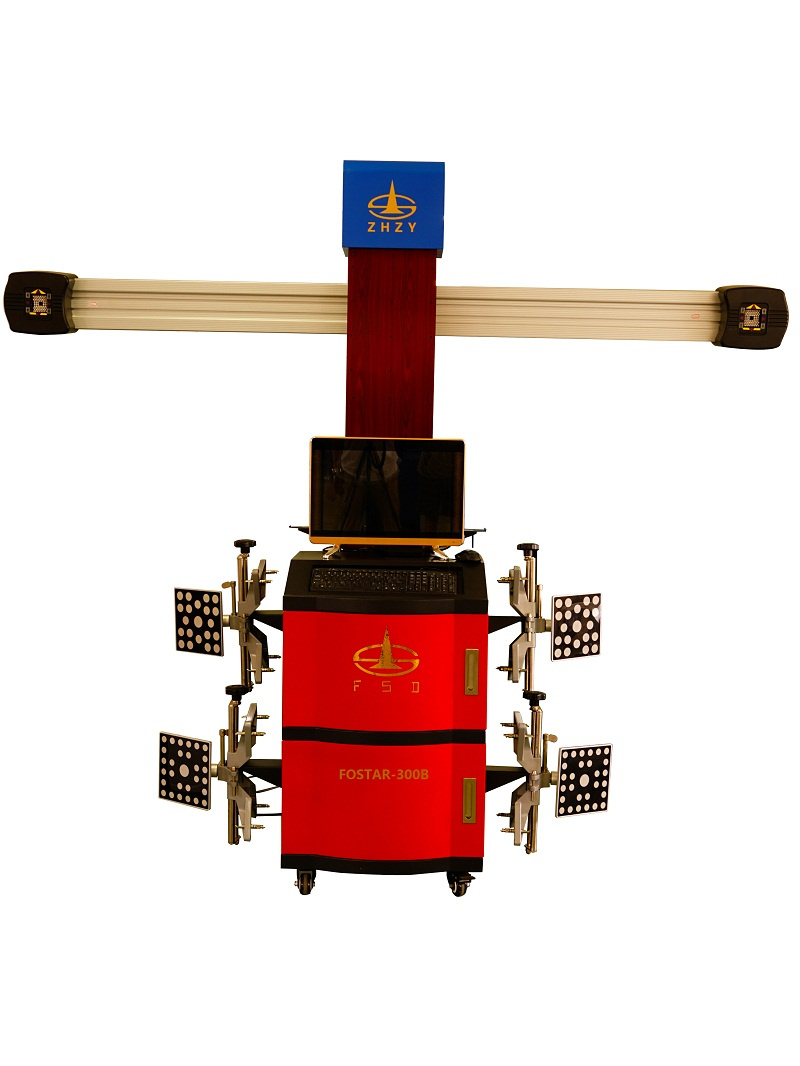

ZHZY-300B
3D wheel alignment
- Easy maintenance
- Low operational cost
- Stability in operations
- CE ISO
Key Features:
Professional, Stable, Durable, Affordable
Professional: Dual camera system (imported from Japan)
Dual-core CPU computer system
Waterproof targets
24 inch clamps
Calibration Free
Auto lift platform compensation
Auto vehicle compensation
Super-big vehicle database covering over 20 000 models.
Height adjustable
Durable: Calibration Free
Long life hi-speed camera system
12 months warranty
Multilingual software-including English, German, Polish, Spanish, Português .
3D camera frame from Germany, lens 20'' from Japan for 5m length car body test high accurate.
Install Data
- charger : 220v (50 /60 Hz) ± 10% output. Better with voltage regulator or UPS
- working temperature: 0~40C
- Relative humidity: 10~85% without dew
- Distance between camera to target : 500mm , between camera to lifter: 800mm, between camera to
- turntable : 2700 ~2800mm
- Power consumption: 0.5kw needs to connect with earthing conductor over 1.5m
- Anti-rust , anti-magnetic parts, getting rid of direct solar radiation.
Specification
| Database: | |
| Windows system: | Windows 7 operation system. |
:,,7075.
Guan Jian pieces of this product: the camera and the lens using SONY technology, reflective board without any electronic original device, its rear cover using 7075 aerospace aluminum alloy material production.
:Guan Jian pieces of this product: the camera and the lens using SONY technology, reflective board without any electronic original device, its rear cover using 7075 aerospace aluminum alloy material production.
:The installation range: 1.6--3.1 meters.
Relative humidity: 3550 degree.
Relative humidity: less than or equal to 85%.
Optional: Black reflector, interchangeable reflector, small front big reflector.
The standard reflector size as reflector pattern before and after.
This machine uses high speed import SONY camera, 5 million phase element, the camera working speed to 30 out of phase speed work per second. Reflector panels have a variety of patterns, software vision calibration accuracy: 0.02mm.
A calibration before leaving the factory, no need to re calibrate. Cart time only takes 3 seconds.
The main technical parameters are as follows:Main Feature1. Independent research and development ability, software upgrade continuous (software function, interface design and database upgrade)2. Imported camera lens with high quality.3. Non-contact, avoid damage to aluminum rim.4. Voice prompt function makes the operation convenient.5. Intellectual property is one of our development value and will realize max. profit.6. All the components are made from moulds, can be installed or replaced at will.7. The software function and interface can be designed at customers' demand.8. The promoter elements under warranty for lift,low price in using.9. HD target board can realize interaction without calibration.10. With vehicle and customer search function,quick and convenient in searching.11. Pure homemade 3D four wheel alignment tester,hight precision in measurement.The main technical parameters are as follows:| Location parameter | Accuracy (center value) | Precision range | Maximum measurement range |
| Display accuracy and measurement accuracy | ±0.01°/0.01mm | Measurement accuracy of 0.01 degrees or 0.01mm |
| Toe | ±0.02° | ±0.01° | ±30° |
| Dip angle | ±0.03° | ±0.01° | ±30° |
| Inclination angle of main pin | ±0.03° | ±0.01° | ±15° |
| Inclination angle of main pin | ±0.04° | ±0.01° | ±20° |
| thrust angle | ±0.02° | ±0.01° | ±6° |
| Maximum turning angle | ±0.02° | ±0.01° | ±30° |
| Withdrawal angle | ±0.02° | ±0.01° | ±6° |
| Tread | ±0.25cm | ±0.01° | 3000mm |
| Wheelbase | ±0.25cm | ±0.01° | 8000mm |
| Diagonal money | ±2mm | ±0.3cm | 12000mm |
| Rolling radius | ±2mm | ±0.3cm | 700mm |
Main feature
-- 3D digital camera measurement system: two 3D digital cameras, four targets
-- Target Features: There is no electronic components on the target, without data transmission,
-- no batteries facilitate the complete elimination of circuit failure. The product is more stable
-- Equipment Calibration: Equipment calibration is done once only when the installation is complete, which is not necessary to regularly repeat.
-- dynamic measurement: dynamic measurement based on pushing. Without raising its body, the vehicle is at a natural state. Simultaneous detection of four wheels would reduce measurement time and improve the accuracy.
Software system: simple operation, to read the basic wheel alignment data within two minutes.
-- Low demand for horizontal level of lift: for the list, the levelness difference of 5cm or less has little impact on the measurement results, different from the traditional technology with over-reliance on gravity optical platform levelness degrees.
-- all-model measurement: it can detect long body, low chassis vehicles.
-- maintenance: Maintenance is simple, the device doesn't need periodic calibration.
Freight Policy
We can accept EXW, FOB terms which means you can use your own shipping agent. We can also find shipping agent for you to do CIF terms and we pay freight for you.
OUR VALUE MESSAGE IS "QUALITY IS OUR CULTURE""WITH US YOUR MONEY IN SAFE AND YOUR BUSINESS IN SAFE"Wheel Alignment is our (core competencies)1.Competitive Advantage Products2.FULL REFUND in case of Bad Quality OR LATE delivery 3.Payment BY PAYPAL/T/T or Western Union4.Confidentiality Agreement "Business secrect CONTRACT"5.Quality Assurance CONTRACT6.Offter Sample order for testing the market & Small order welcomed7.After Sales Service 24*7FAQ:Q1: What is the Warranty for the Wheel Aligner? A1: For the Wheel Aligner, we have 3 years warranty.For Wheel Aligner Spare Parts with Lifetime Warranty . If any quality problems on our side occured in this period,
we will send the free item to you for the replacementQ2:Is there cheap shipping cost to import to our country? A2: For the spare parts,express will be best.And for the whole machine and bulk order,sea ship way is cheap and best choice for you .Q3:Can we get support if we have our own market position? A3: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.Q4:OEM is available?Yes, we can put your logo on the machine if needed.And we can make the machine structure as your design request.Q5: How can you guarantee the quality?A5: We have a powerful QC team to control the quality in every production process. We believe the best quality is our enterprise life.That's why we have lots of big group companies.
Q6: Could you give me your best price?A6: Of course yes, we are a professional manufacturer, so we could supply the best price without many middlemen.We strong believe that "Reasonable price = High quality + Best service."
Welcome your inquiry!
Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
