Prod Model: |
FOSTAR-300A |
Communication Mode: |
Infrared Wireless Communication |
Condition: |
New |
Product Description

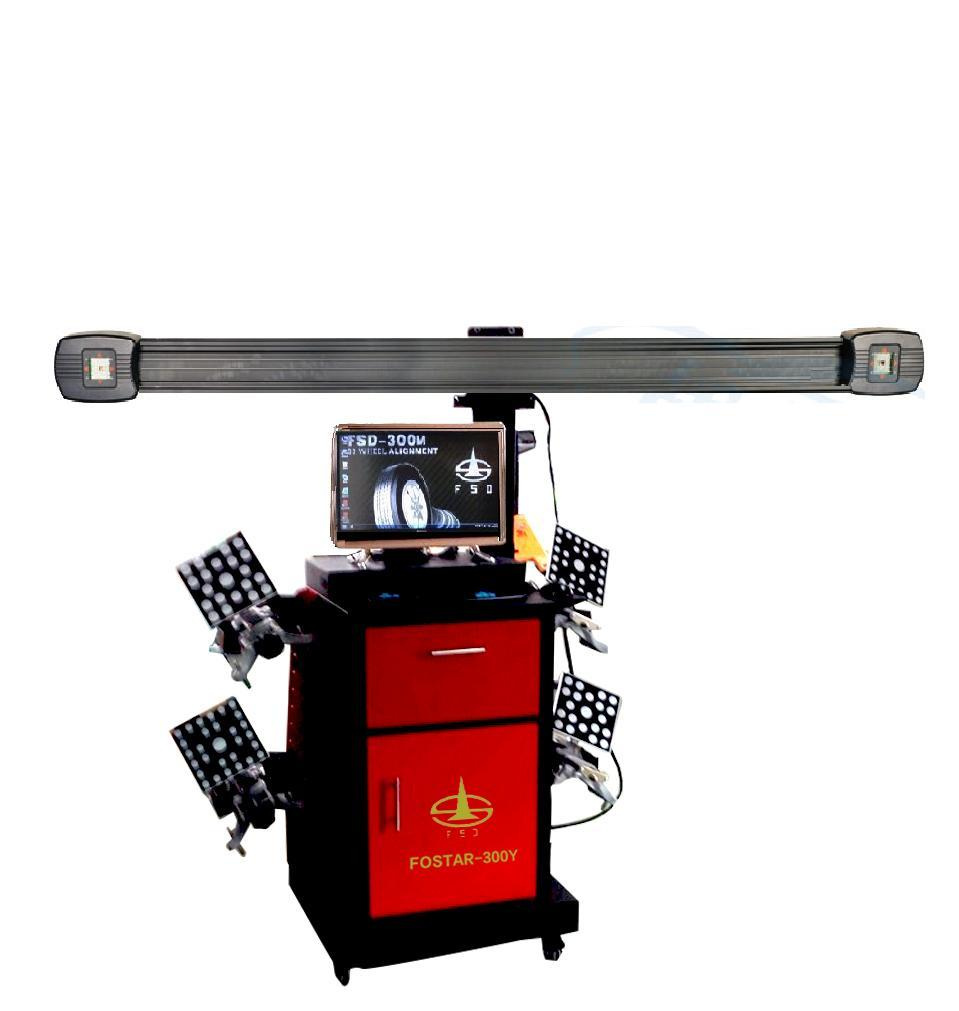

1.FOSTAR-300A 3D Wheel Alignment
Product type: FOSTAR-300A, brand: FOSTAR; origin: Zhuhai, China
3D wheel alignment
- Easy maintenance
- Low operational cost
- Stability in operations
- CE ISO
Key Features:
Professional, Stable, Durable, Affordable
Professional: Dual camera system (imported from Japan)
Dual-core CPU computer system
Waterproof targets
24 inch clamps
Calibration Free
Auto lift platform compensation
Auto vehicle compensation
Super-big vehicle database covering over 20 000 models.
Height adjustable
Durable: Calibration Free
Long life hi-speed camera system
12 months warranty
Multilingual software-including English, German, Polish, Spanish, Português .
3D camera frame from Germany, lens 20'' from Japan for 5m length car body test high accurate.
2.Product introduction 7075.
Guan Jian pieces of this product: the camera and the lens using SONY technology, reflective board without any electronic original device, its rear cover using 7075 aerospace aluminum alloy material production.
:Guan Jian pieces of this product: the camera and the lens using SONY technology, reflective board without any electronic original device, its rear cover using 7075 aerospace aluminum alloy material production.
:The installation range: 1.6--3.1 meters.
Relative humidity: 3550 degree.
Relative humidity: less than or equal to 85%.
Optional: Black reflector, interchangeable reflector, small front big reflector.
The standard reflector size as reflector pattern before and after.
This machine uses high speed import SONY camera, 5 million phase element, the camera working speed to 30 out of phase speed work per second. Reflector panels have a variety of patterns, software vision calibration accuracy: 0.02mm.
A calibration before leaving the factory, no need to re calibrate. Cart time only takes 3 seconds.

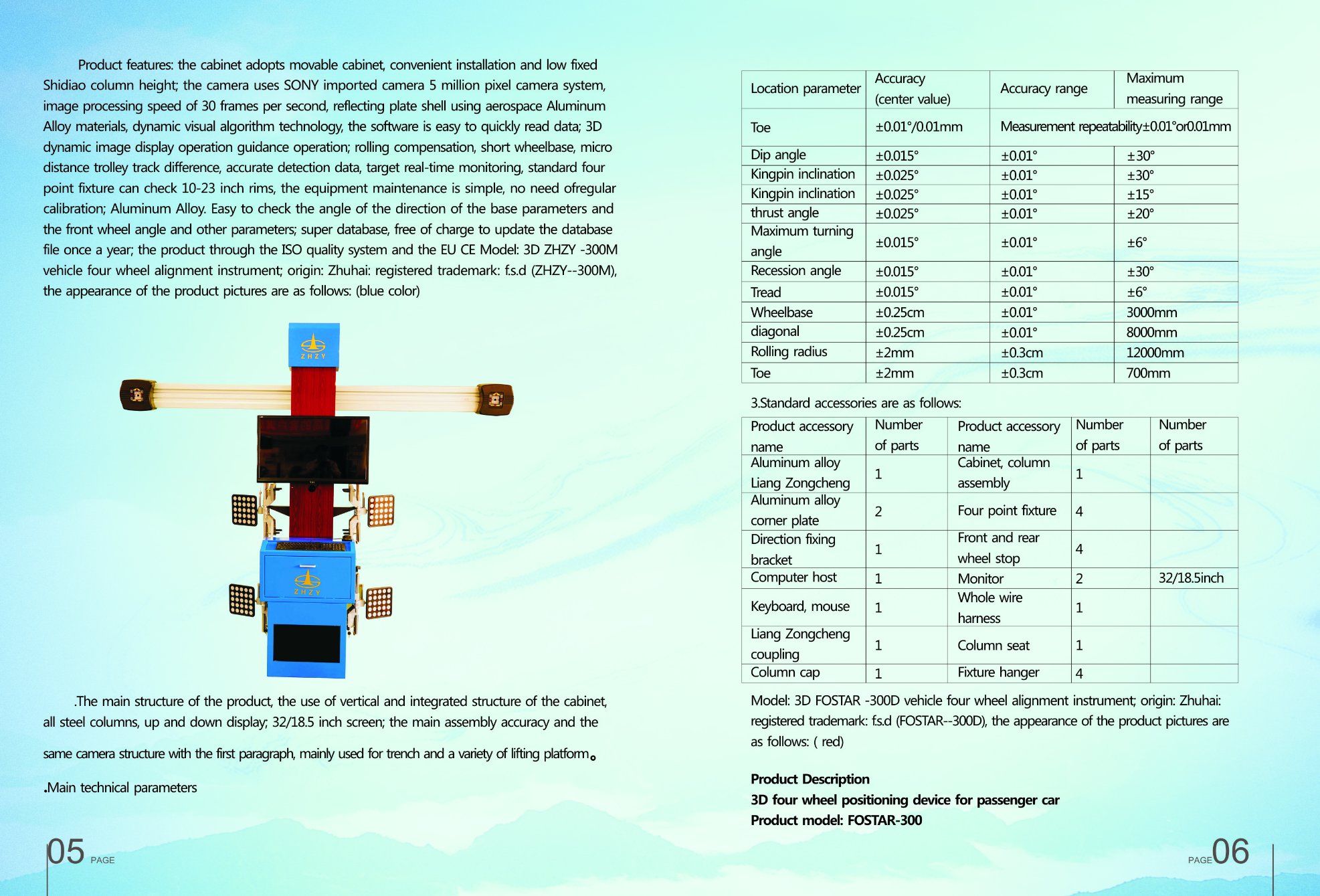

The main technical parameters are as follows:
Location parameter | Accuracy (center value) | Accuracy range | Maximum measuring range |
Display accuracy and measurement accuracy | ±0.01°/0.01mm | Measurement repeatability±0.01°or0.01mm |
Toe | ±0.015° | ±0.01° | ±30° |
Dip angle | ±0.025° | ±0.01° | ±30° |
Kingpin inclination | ±0.025° | ±0.01° | ±15° |
Kingpin inclination | ±0.025° | ±0.01° | ±20° |
thrust angle | ±0.015° | ±0.01° | ±6° |
Maximum turning angle | ±0.015° | ±0.01° | ±30° |
Recession angle | ±0.015° | ±0.01° | ±6° |
Tread | ±0.25cm | ±0.01° | 3000mm |
Wheelbase | ±0.25cm | ±0.01° | 8000mm |
diagonal | ±2mm | ±0.3cm | 12000mm |
Rolling radius | ±2mm | ±0.3cm | 700mm |
3. Standard accessories are as follows:
Product accessory name | Number of parts | Product accessory name | Number of parts | Remarks |
Aluminum alloy Liang Zongcheng | 1 | Cabinet, column assembly | 1 | |
Aluminum alloy corner plate | 2 | Four point fixture | 4 | |
Direction fixing bracket | 1 | Front and rear wheel stop | 4 | |
Computer host | 1 | Monitor | 1 | 19" |
Keyboard, mouse | 1 | Whole wire harness | 1 | |
Liang Zongcheng coupling | 1 | Column seat | 1 | |
Column cap | 1 | Fixture hanger | 4 | |
4 main features of the product
0.1. The camera has fast response, low temperature performance and good, can work at subzero temperature of about 30 degrees, the cart time is only 3S, the camera speed of 30 photos per second speed
0.2. Reflective board over the horizon, can be in the range of about 12 meters to find the target, you can do longer vehicle detection;
0.3. Measurement accuracy in the industry first-class;
0.4. Software supports a variety of reflective patterns;
0.5. The product has passed ISO quality system certification and export CE certification;
0.6. Guan Jian for aerospace aluminum alloy 7075-T6 super hard aluminum to do
0.7. Computer attached to the 3D operation of the screen, simple and convenient operation. With its own installation and operation guide function
0.8. The software is easy to operate, easy to use, intuitive 3D display
0.9. National UNPROFOR, remote service system
10. All over the country are equipped with after-sales service outlets, remote technical support
11. Regular return visit system of products, continuous innovation, once a year free update data packets
12. The product is specially designed for the drainage design. It is convenient to check the data
13) free training staff14).Dynamic calculation of the body parameters, not affected by the lifting machine
15. Automatic calculation of body parameters and rolling compensation body parameters
16. Software intuitive response to the four round of the condition and need to solve the problem of repair

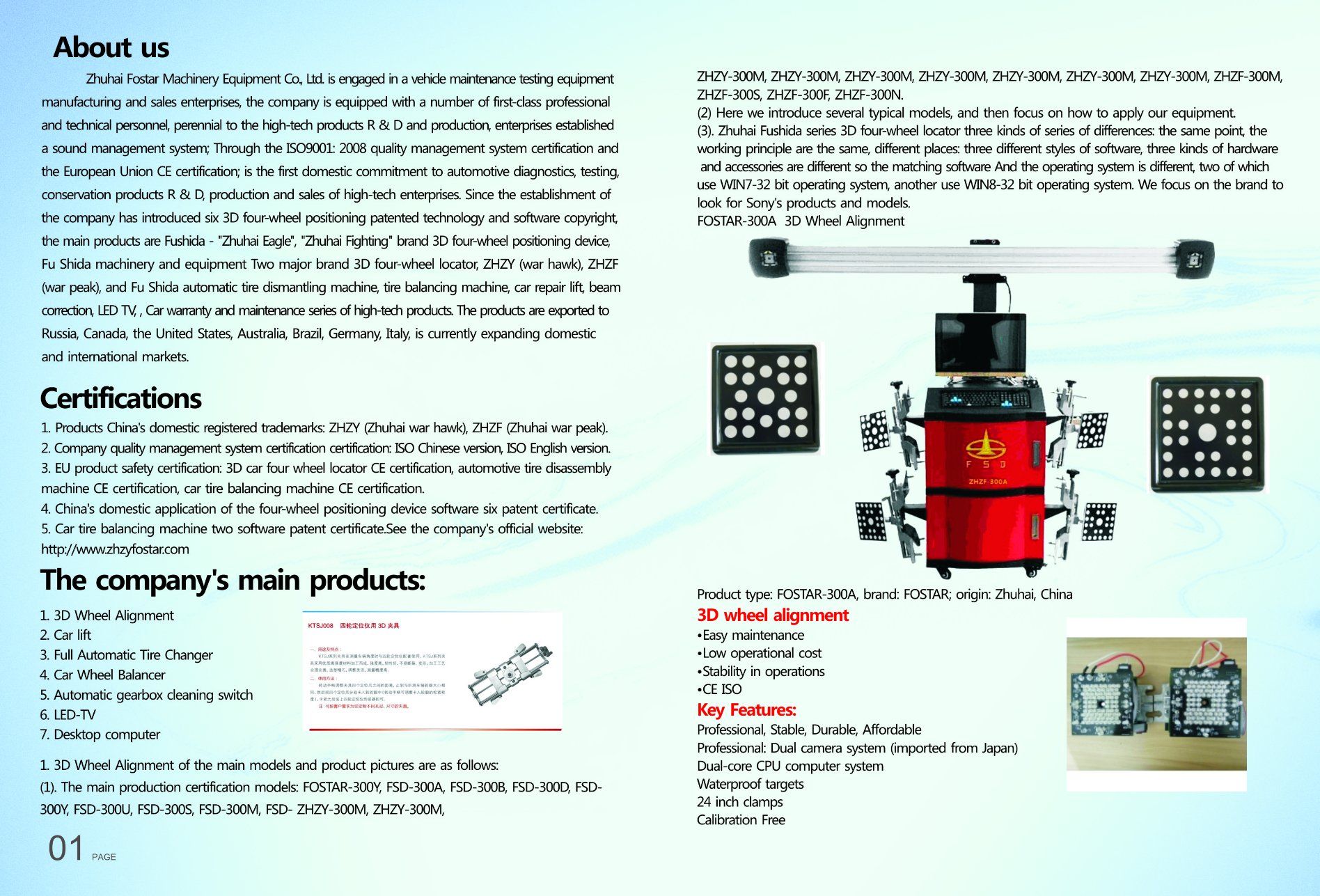

Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
