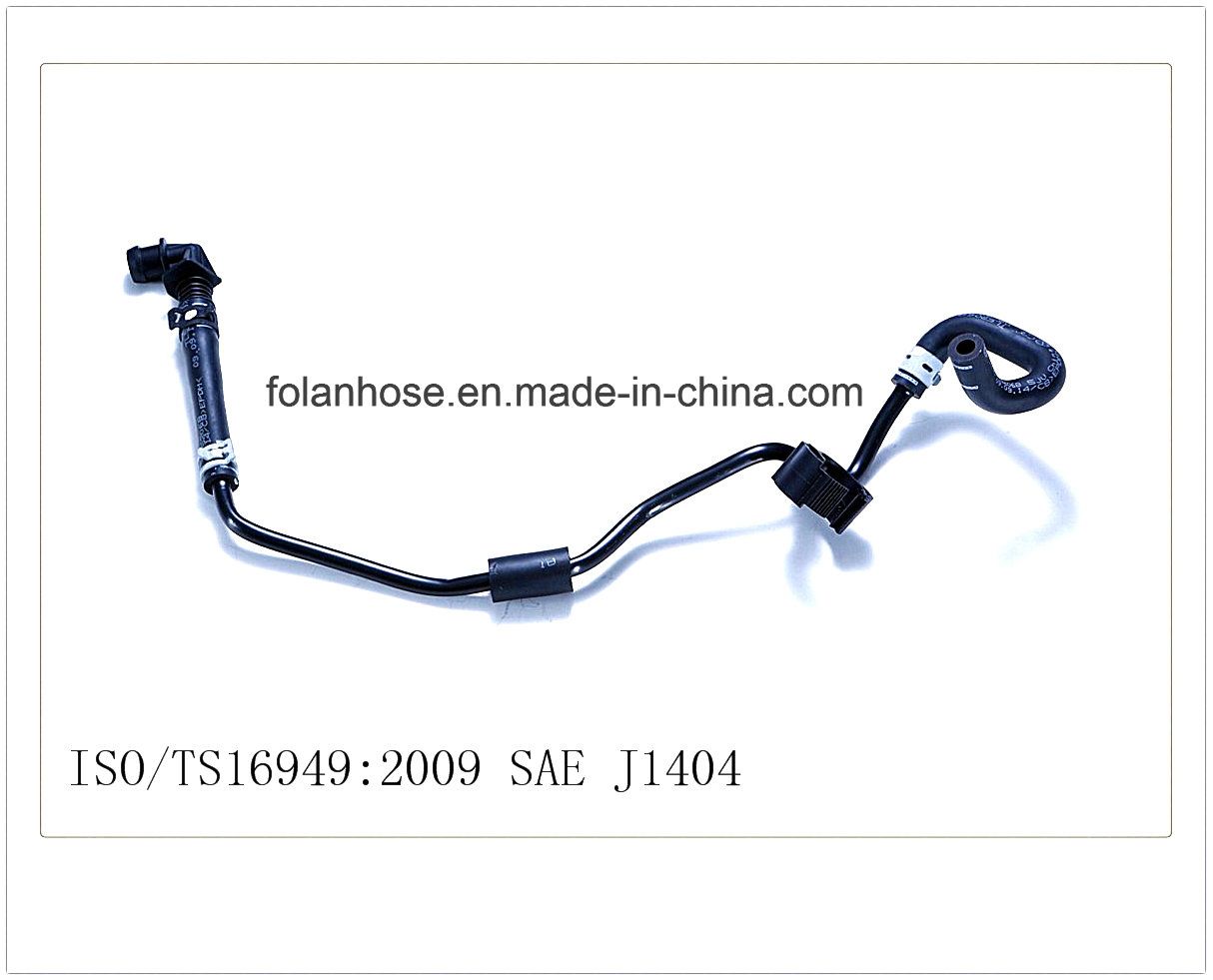

Fmvss106 Flexible Rubber Brake Hose Fitting Assembly for Auto Chassis

Name: Fmvss106 Flexible Rubber Brake Hose Fitting Assembly for Auto Chassis
Brand: ibuyautoparts.com
SKU: 731978002
Availability: InStock
Rating: 4.3 (119 reviews)

Price:	US $ 2/Meter
Min Order:	50/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

OEM service sae j1401 brake hose assembly for car parts
Product Description
Application

Transporting pressure for cars,sport cars ,SUV and minicar in hydraulic system

for braking.

Construction:

Consist of several high strength,low shrink braided fiber

Burst pressure: 55MPa

tensile strength :1600N,

Whip test: 35H

low expansion meet "- HL"

Super low expansion amount to meet:

6.9MPa:0.33cm3/m

10.3MPa:0.42cm3/m

standard: SAE J1401

The surface of metal parts is treated with:

Electroplate with white zinc for salt spray test for 48h but no base metal corrosion

Electroplate with zinc-nickel alloys for salt spray test for more than 1000h but no base metal corrosion

The surface has been environmental treated,meets ROHS requirement.
Size and technical parameters:

No.	I.D			O.D			W.P		B.P
No.	inch	mm	Tolerance (mm)	inch	mm	Tolerance (mm)	Bar	PSI	Bar	PSI
1	1/8	3.2	±0.2	13/32	10.5	±0.3	100	1450	490	7000

Product Test and Certification
The factory inspection:
100% Pressure Inspection
100% Throughput Inspection
100% Pass and Stop Inspection
100% Length,Surface Inspection
100% Internal Gassing clean
Packing and Shipping
1,Conventional core is 100 meters.Press the length of the rubber core cut, PVC coating, into the woven bag or carton, playing the tray.
2,According to customer requirements packaging.

OEM Service SAE J1401 Brake Hose Assembly for Car Parts

Prod Model:	GLC007
Type:	Brake System
Material:	Semi-Metal
Position:	Front
Certification:	DOT

Qingdao Folan Trade Co., Ltd was found in 2016. Since 2008, our factory are exported and supplied in the fitting of engine Parts. We have two foundries and 20-30 fully automatic CNC machining centers in order to meet our customer's production capacity.

Such as automotive coolant/fuel hose assembly, automotive air-condition hose assembly, automotive power steering hose assembly, automotive turbo charger hose assembly, automotive sunroof drain hose and automotive molding press hose assembly and other series over 2000 kinds of specifications. Its main customers are: FAW Volkswagen, DFCV, SAIC Volkswagen, Nissan(China), JAC group, Volkswagen AG, Italy FIAT, etc., integrated product market share up to 30%.
