Air Hose Automotive Engine, Radiator, Heater, Coolding System

Name: Air Hose Automotive Engine, Radiator, Heater, Coolding System
Brand: ibuyautoparts.com
SKU: 731976312
Availability: InStock
Rating: 5 (43 reviews)

Price:	US $ 3/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

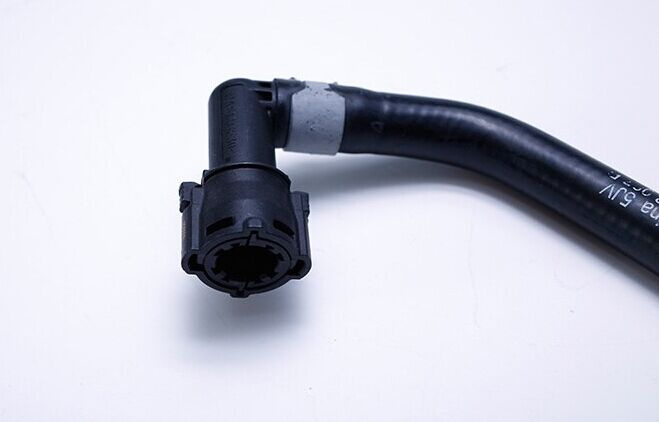

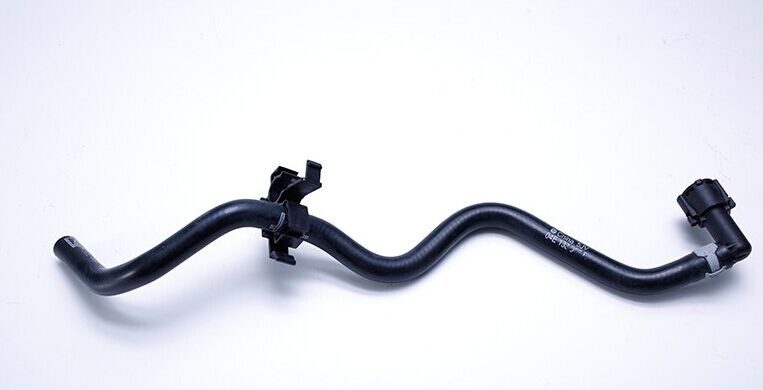

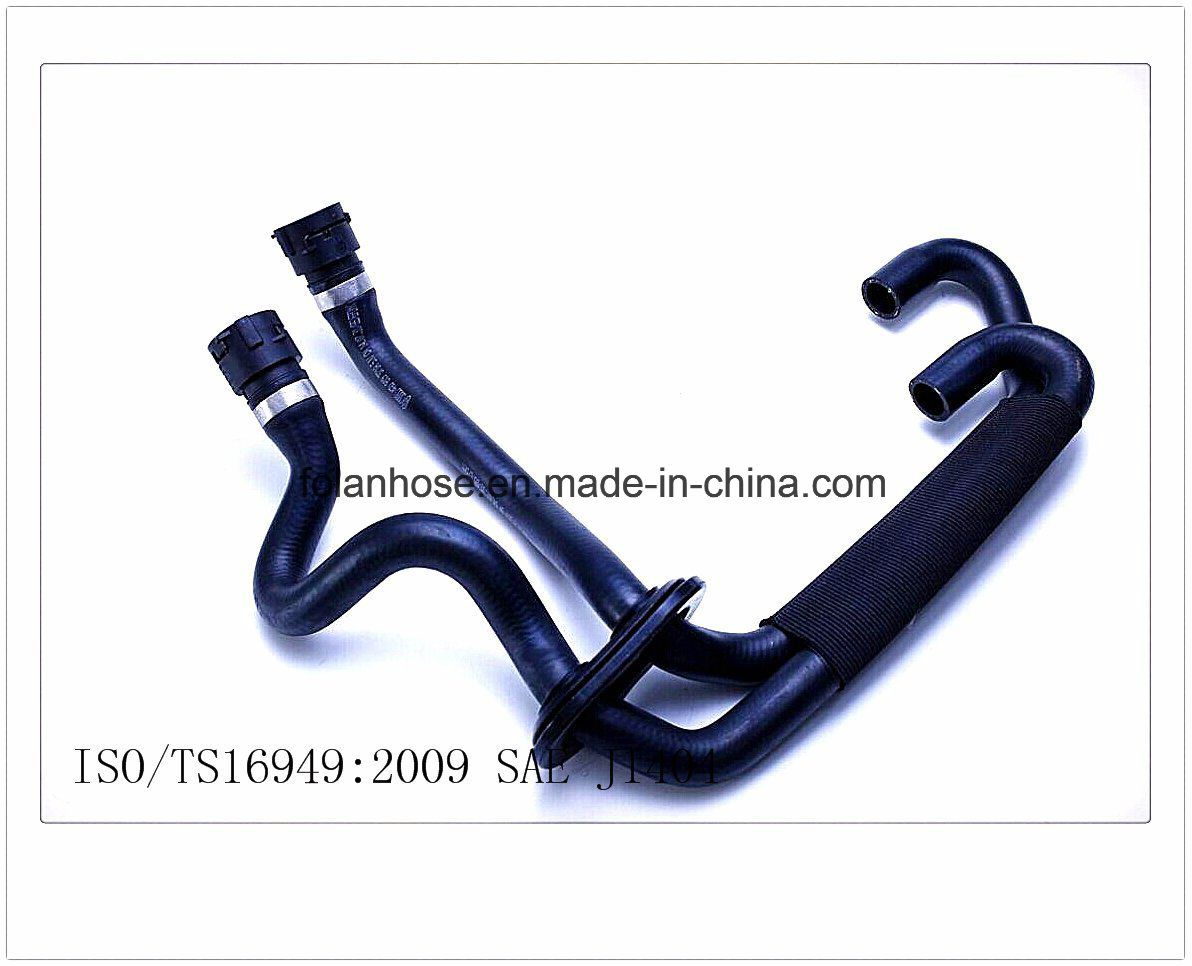

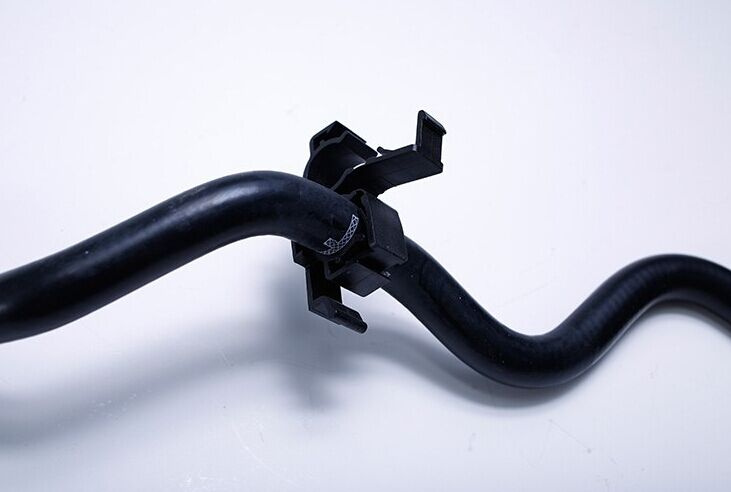

Automotive Coolant Hose Assembly
It is applied in automotive engine cooling system, to connect engine, radiator, heater and other major components, through convey the coolant to transfer the heat from engine to radiator for cooling and transfer to heater for supplying heat for driving cabinet, then convey the coolant which has been cooled back to engine for next heat cycling.

ID mm	First layer	Second layer	Third layer	Low temperatureºC	High temperatureºC (long time)	High temperatureºC (short time)	Notes
5~70	S-EPDM	--	--	-40	110	130	S-EPDM:CV system EPDM
5~70	S-EPDM	--	--	-40	130	150	S-EPDM:EV system EPDM
5~70	P-EPDM	--	--	-40	150	165	P-EPDM:Peroxide system EPDM
5~70	S-EPDM	AR /PET line	S-EPDM	-40	110	130	S-EPDM:CV system EPDM
5~70	S-EPDM	AR /PET line	S-EPDM	-40	130	150	S-EPDM:EV system EPDM
5~70	P-EPDM	AR line	P-EPDM	-40	150	165	P-EPDM:Peroxide system
5~70	VMQ	AR line	VMQ	-50	200	230	VMQ:
5~20	PA11	--	--	-40	125	150	single layer nylon tube for coolant hose system air hose
5~20	PA12	--	--	-40	125	150	single layer nylon tube for coolant hose system air hose
5~20	PA612	--	--	-40	150	170	single layer nylon tube
5~20	PP	adhesive agen	PA12	-40	125	150	single layer nylon tube

Trade Terms
Date of Delivery:Based on order quantity
Minimum Quantity:100 m
Packaging:Cartons
Payment:Irrevocable L/C
Port of Loading:Tianjin OR QINGDAO

Prod Model:	GLC002
Quality:	Superior
Sample:	Acceptable
Drawing:	Acceptable
Delivery:	Quaranteed
Component:	Coolant
Cold Style:	Water-cooled
Certification:	CCC
Structure:	Sealed Type
Body Material:	Rubber-Alloy

Qingdao Folan Trade Co., Ltd was found in 2016. Since 2008, our factory are exported and supplied in the fitting of engine Parts. We have two foundries and 20-30 fully automatic CNC machining centers in order to meet our customer's production capacity.

Such as automotive coolant/fuel hose assembly, automotive air-condition hose assembly, automotive power steering hose assembly, automotive turbo charger hose assembly, automotive sunroof drain hose and automotive molding press hose assembly and other series over 2000 kinds of specifications. Its main customers are: FAW Volkswagen, DFCV, SAIC Volkswagen, Nissan(China), JAC group, Volkswagen AG, Italy FIAT, etc., integrated product market share up to 30%.
