Fast Speed Powerful Pulling 12000 Lb Electric Winch

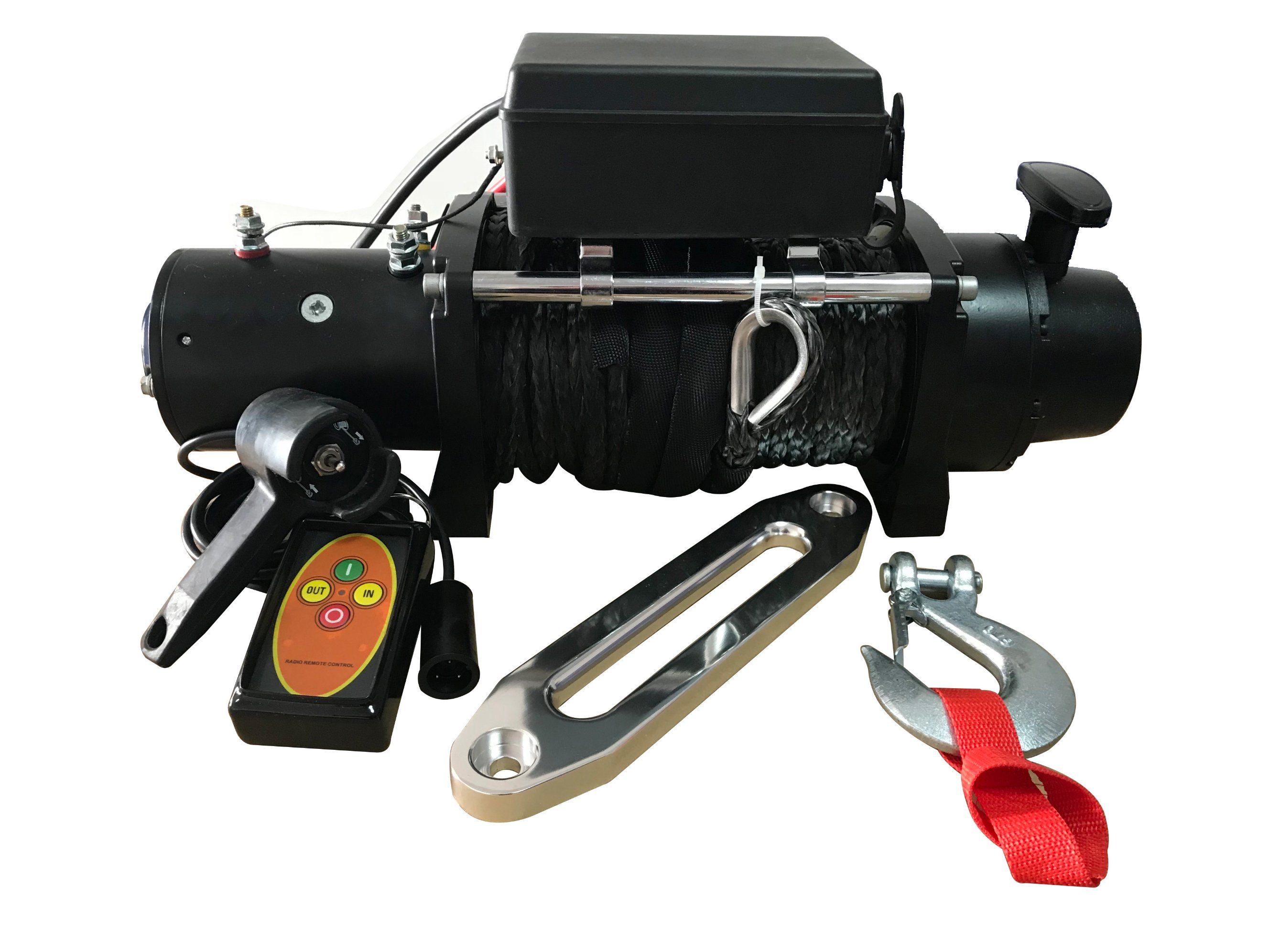

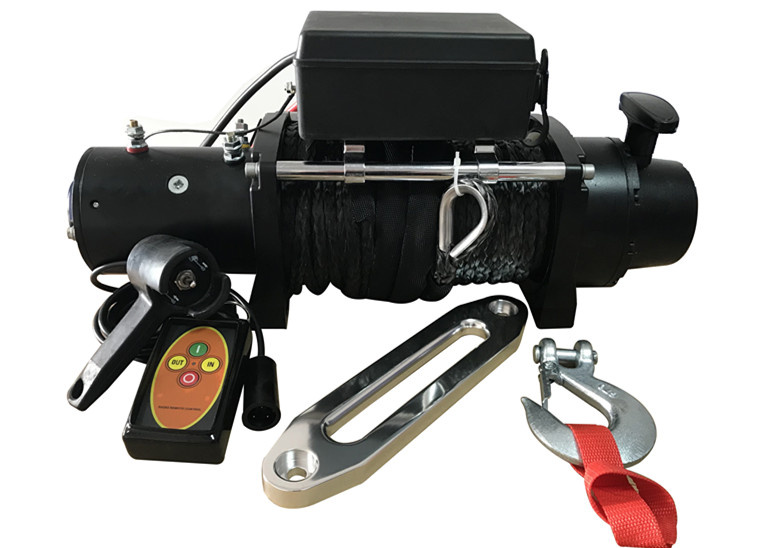

Name: Fast Speed Powerful Pulling 12000 Lb Electric Winch
Brand: ibuyautoparts.com
SKU: 838708315
Availability: InStock
Rating: 4.3 (113 reviews)

Price:	US $ 172-179PCS
Min Order:	24PCS
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

This kind of truck winch newly designs to customers who love off road driving for Entry Level .Classic design ,Pre-set solenoid control box seated on the motor , Sliding ring gear for freespooling by handle-turn ,three gears drive train with 216: 1 gear reduction ration .Appropriate speed line with safe operation .Both wired cord remote and wireless remote control. 4-way roller fairlead .Reliable performance and durable make your driving happily . The economic price is more advantage that you choose it !
Features and Specifications :
PN: XM-TE913
Performance:                 DC 12 V or 24 V
Single line rated pull:    12,000lbs ( 5436kg)
Motor:                             5.8hp/4.5kw series -wound sealed
Braking action:               Automatic locking
Clutch:                            Sliding ring gear (Flip-up or Flip Down )
Gear train :                    3 -stage planetary
Gear ratio:                       216: 1
Remote Switch:             11ft ,wire remote control with black handbar ,
wireless remote control included
Battery: Recommended:650CCA minimum for winching
Battery Leads: 2 Gauge 72"(1.83m)
Fairlead:                           4-way roller fairlead
Steel cable:                      Ф9.5 x 72 ft (Ф9.5 x 24 m ) or synthetic rope (optional )
Weight:                             80 pound (36.5kg )
Overall dimension:           21.3" x 10.3" x 6.3" (540mm x 260mm x 160mm)
Mounting bolt pattern:      10" x 4.5" (254mm x 114.3mm)

Prod Model:	XM-TE913
Weight:	35.50 Kg
Warterproof:	IP67
Durable Cycle:	10000 Times
Warranty:	13 Months
Pulling:	12000lb
Type:	Electric Winch
Power Type:	Series Motor DC
Certification:	RoHS
Pull Direction:	Forward and Backward
Brand:	Xi Man
Applicable Environment:	All
Working Voltage Of Electric Winch:	12 or 24 V
Electric Winch Model:	Truck Jeep Trailer

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.
