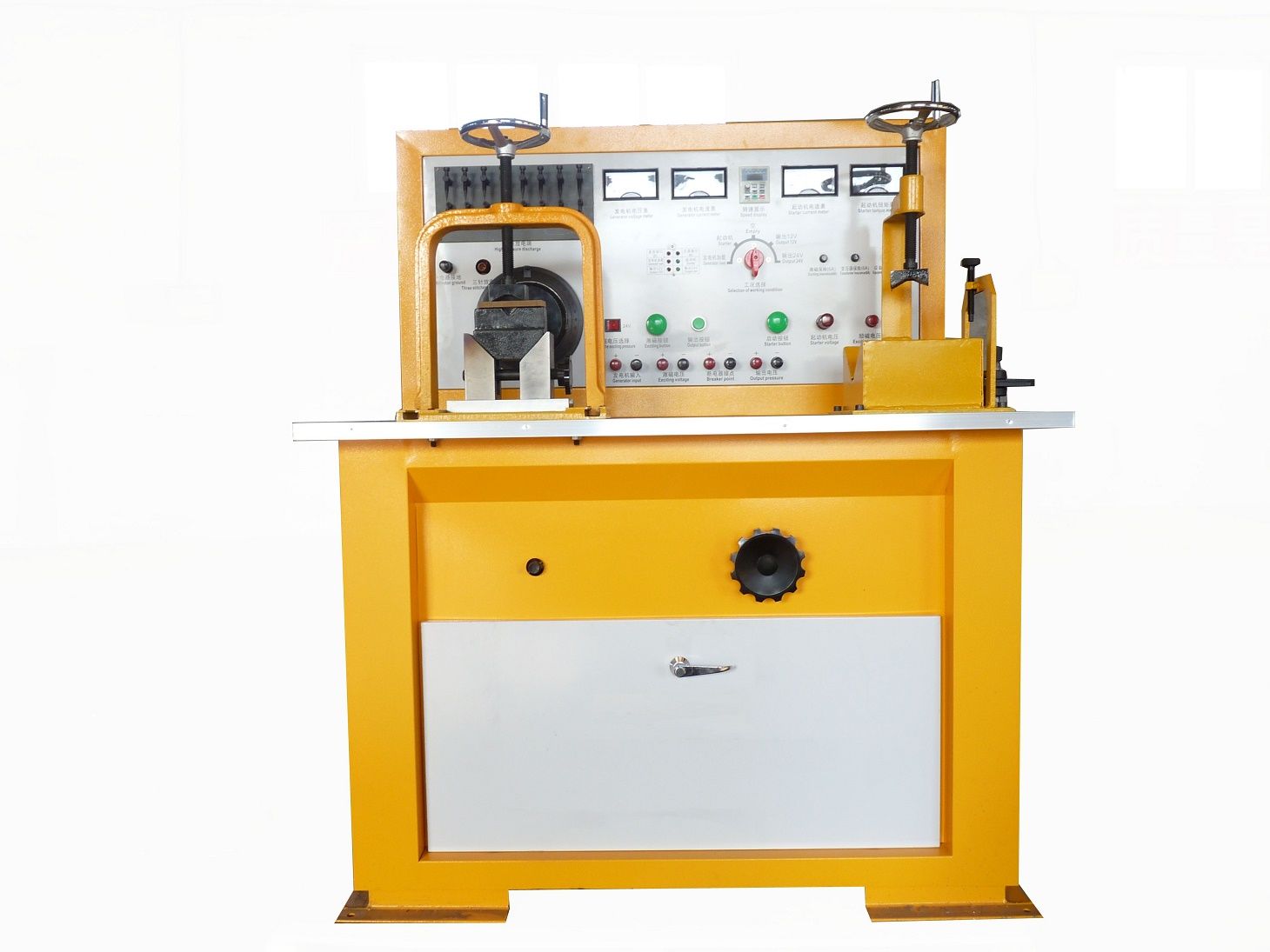

ETB-100 Automobile Electric Alternator Starter Tester

1. Introduction
This test bench uses variable frequency speed regulation LED digital display. It is used to test electrical appliances of automobile like generator, starter, distributor, ignition coil, electric wiper and electric horn etc.

2. Technical Parameter
Power: AC: AC220V 50HZ single-phase, if your local not 220v, inform us to adjust it.
External:DC12V,24V,
Motor power: Variable frequency speed regulation 1.5KW
Variable frequency speed regulation: Range:0-3000r/min
Turning direction:Positive and negative
Adjusting mode: Rotary
Three-pin discharge unit: Three-pin discharge: 8 groups in parallel ignition angle index plate : 360°division range of adjusting clearance: 0-15mm
Testing range of starter braking unit:
Maximum braking current:1000A
Maximum braking torque:100N.M

3. Function:
Range of generator testing device: All generators with less than 1KW power
Test items: Test generator: no load, load; test electronic regulator: regulate voltage and current, limit current;
Test starter: no load, load, braking torque;

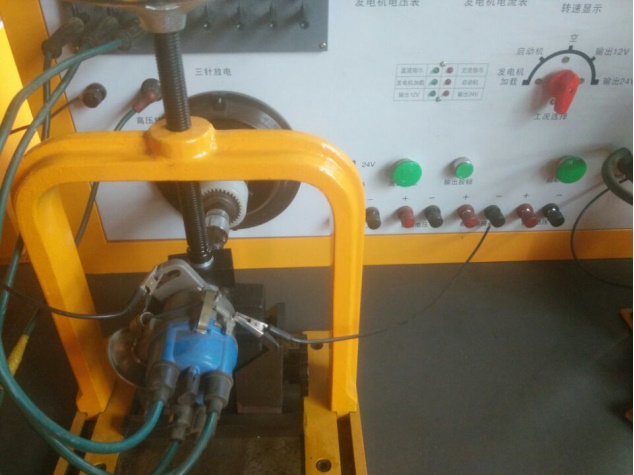

Test distributor: ignition intensity, uniformity and ignition advance angle, applicable for testing distributor with contact or without contact;
Test battery: voltage; test electric horn: sound

Prod Model:	ETB-100
Test Function:	Starter and Alternator
Testing:	Starter and Alternator
Output Power:	1.5kw
Voltage:	380V 220V 415V
Power Phase:	1-Phase
Equipment:	Etb-100 Electrical Tester for Starter & Alternator
Certification:	ISO
Update Method:	by Hard Disk
