Atb-200 Automobile Turbocharger Test Bench, Computer Control. Air Heating System

Atb-200 Automobile Turbocharger Test Bench, Computer Control. Air Heating System
Price: US $ 6000-7000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram

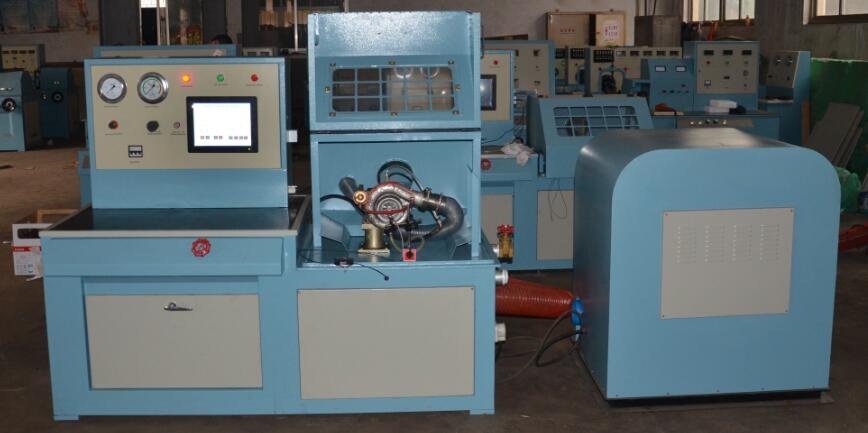

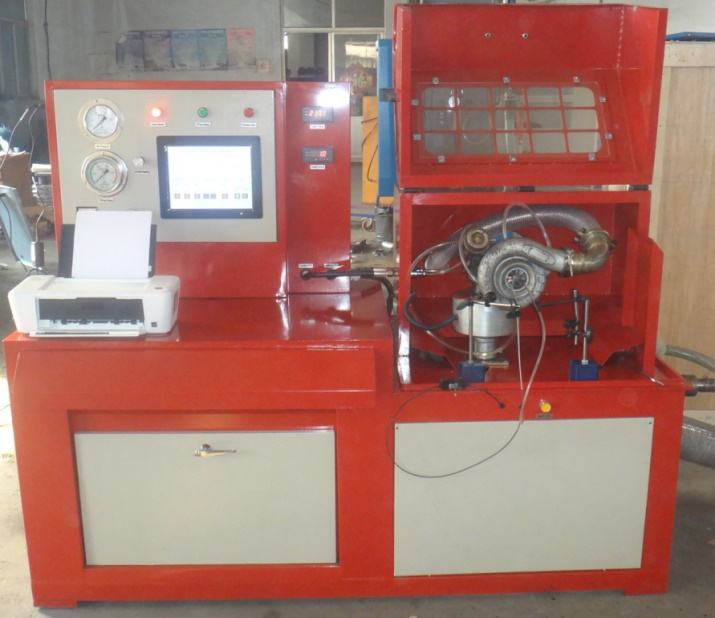

ATB-200 Automobile Turbocharger Test Bench, Computer Control. Air Heating System

1. Introduce
This test bench is applicable for testing performance of turbocharger on various models truck engines and can carry out dynamic test of boost pressure, air flow and lubrication of turbocharger and display measured data by digital instrument.
It can carry out contrast test of inlet & outlet air pressure difference of various turbochargers and read the values
It can be matched with computer to process data, display on the computer, store & print test results and wave form curve and achieve dynamic test of various models turbochargers.

2. Test function:
1. Test the speed of turbocharger
2. Test the air flow of of turbocharger
3. Test the boost pressure of turbocharger
4. Test inlet pressure of turbocharger
5. Test the lubrication state of turbocharger

3. Technical Parameter
 Power: AC AC380V 50HZ (made to Measure)
 Power of airflow generator: 5.5KW (made to order)
 Frequency converter: 7.5KW
 RPM of airflow generator: 0--20000r/min(If it requires high speed, it will be customized.)
 Maximum air pressure of airflow generator: 5KPa
 Maximum flow of of airflow generator: 1500cbm/h
 Power of oil pump: 370W
 Rated pressure of oil pump: 0-1.6Mpa




Prod Model: ATB-200
Test Function: Turbocharger
Testing: Turbo Speed, Flow, Pressure, Lubrication Status
Output Power: 7.5kw
Voltage: 380V 220V 415V
Power Phase: 3-Phase
Equipment: Automobile Turbocharger Test Bench
Certification: ISO
Update Method: by Hard Disk
