Ningbo Lianda Winch Co., Ltd. >> Electric Winch (LD6000)

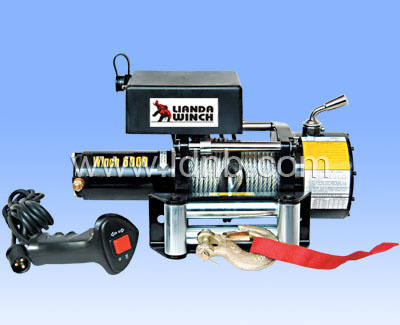

Electric Winch (LD6000)

Name: Electric Winch (LD6000)
Brand: ibuyautoparts.com
SKU: 200009355
Availability: InStock
Rating: 4.7 (114 reviews)

Price:	Negotiable
Min Order:	1

Contact Supplier

Showroom Product Company Profile

LD6000
Rated line pull 6000lb(2720kg)
Motor 1. 2hp/900kw, 12DC Permanent Magnet
Control Remote switch 12ft(3. 7m)lead
Gear train 3 Stage Planetary
Gear reduction ratio 307: 1
Clutch Sliding Ring Gear
Braking Action Automatic In-The Drum
Drum size Diameter2. 52"(64mm)Length5. 26"(134mm)
Cable 24m of 6. 4mm diameter
Fairlead 4-Way Roller Fairlead
Remote Control Include
Battery Leads 2 gauge, 59"(1. 5m)
NW/GW 25kg/29KG
Overall dimensions (LxWxH) 16. 9"x6. 3"x8. 6" (430x160x218mm)

Electric winch with permanent magnetic motor
Model Capcity Power Steel cable Size (L X W X H) NW
LD6000 6000LB DC12V 6. 4mm X 24m 430 X160 X 218mm 27KG

Line Pull And Rope Capacity In Layer
Layer Rated Line Pull (lbs. /kgs) Tatal Rope On Drum (ft/m )
1 5000 (2270) 15. 0 (4. 6)
2 4230 (1920) 33. 0 (10. 0)
3 3660 (1660) 55. 0 (16. 5)
4 3230 (1460) 80. 0 (24. 0)

Pull, Speed, Amperes, Volts (First Layer)
Line Pull (lbs. / kg) Line Speed FPM(m/min) Motor (Amps)
0 14. 0ft (4. 2m) 40
1500 (680) 11. 0ft (3. 3m) 75
3000 (1360) 8. 8ft (2. 6m) 150
4500 (2040) 6. 0ft (1. 8m) 250
6000(2720) 4. 2ft (1. 2m) 360

Prod Model:	LD6000

Ningbo Lianda Winch Co., Ltd. is the leading winch factory in China, specialized in manufacturing electric winch, trailer winch, ATV/UTV winch of Lianda Brand for about 20 years. We have strong technical force, advanced prodction & testing equipment, enough production capacity and complete quality guarantee system. Our main products are including hydraulic winches, electric winches, ATV/UTV winches, trailer winches, off-road car winches, hand winches, we can accept OEM.

According to our establishment idea of "Person Principal, Technology Innovation". We insist on the international highest standard, establish happy culture, adopt most effective management model and integrate social resource.

Our mission is to supply high-quality products to our customers. We can supply four series about two hundred special products. Our products export far to Germany, British, France, USA, Australia, Japan and other countries.

"Customer Upmost, Reputation First" is our motto. We show warm welcome to all the friends both at home and abroad to visiting our company.

In 2008, we exported 240000 units winches to the USA.
