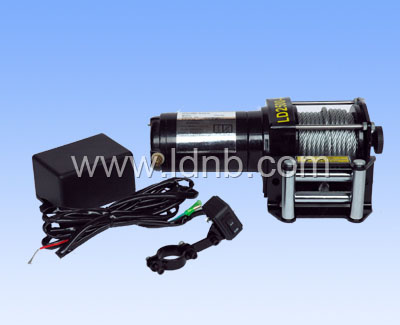

Electric Winch (LD2500-A)

Name: Electric Winch (LD2500-A)
Brand: ibuyautoparts.com
SKU: 200009359
Availability: InStock
Rating: 4.9 (84 reviews)

Price:	Negotiable/Piece
Min Order:	1 /Piece

Contact Supplier

Showroom Product Company Profile

LD2500-A
Rated line pull 2500lb (1130kg)
Motor 0. 9kw, 12DC Permanent Magnet
Gearing Differential Planetary
Gear ratio 153: 1
Freespooling clutch Pull and turn
Braking Action Dynamic
Wire Rope 4. 8mm*15. 2m
Dimensions 340mm(L) x 105mm(W) x 105mm(H)
Drum Diameter 1. 25"(31. 75)
Drum Length 2. 9"(74mm)
NW/GW 6. 5KG/7. 5KG
Meas 38. 5x 24. 5 X 19. 5cm

Electric winch with Permanent Magnet
Model Capcity Power Steel cable Size (L X W X H) NW
LD2500-A 2500LB DC12V 4. 8mm X 15. 2m 340 X 105 X 105mm 6. 5KG

Pull, Speed, Amperes, Volts (First Layer)
Line Pull (lbs. / kg) Line Speed FPM(m/min) Motor (Amps)
0 10. 5ft (3. 2m) 10
500 (227) 9. 2ft (2. 8m) 25
1, 000 (454) 7. 5ft (2. 3m) 50
1, 500 (680) 5. 9ft (1. 8m) 90
2500 (1133) 3. 2ft (1. 0m) 120
3000 (1361) 2. 3ft (0. 7m) 150

Line Pull And Rope Capacity In Layer
Layer Rated Line Pull (lbs. /kgs) Tatal Rope On Drum (ft/m )
1 2500 (1133) 5. 5 (1. 7)
2 1980 (895) 12. 4 (3. 8)
3 1640 (740) 20. 9 (6. 4)
4 1400 (630) 30. 7 (9. 4)
5 1220 (550) 42. 5 (13)
6 1084 (490) 49. 7 (15. 2)

Prod Model:	LD2500-A

Ningbo Lianda Winch Co., Ltd. is the leading winch factory in China, specialized in manufacturing electric winch, trailer winch, ATV/UTV winch of Lianda Brand for about 20 years. We have strong technical force, advanced prodction & testing equipment, enough production capacity and complete quality guarantee system. Our main products are including hydraulic winches, electric winches, ATV/UTV winches, trailer winches, off-road car winches, hand winches, we can accept OEM.

According to our establishment idea of "Person Principal, Technology Innovation". We insist on the international highest standard, establish happy culture, adopt most effective management model and integrate social resource.

Our mission is to supply high-quality products to our customers. We can supply four series about two hundred special products. Our products export far to Germany, British, France, USA, Australia, Japan and other countries.

"Customer Upmost, Reputation First" is our motto. We show warm welcome to all the friends both at home and abroad to visiting our company.

In 2008, we exported 240000 units winches to the USA.
