Dust Collector Painting Designed Filter
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union |
Spray Booth Filter Fiberglass Filter Paint Stop Filter
Product Description

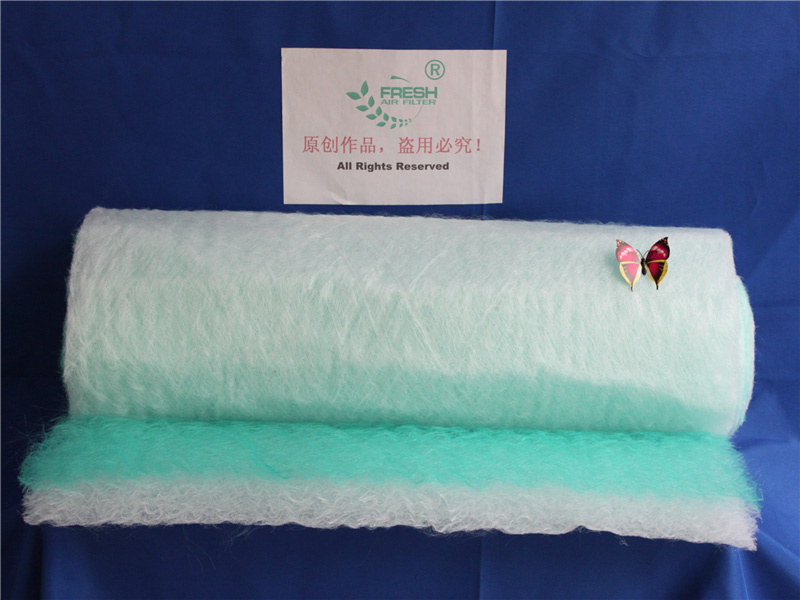

FORSTF Paint Stop Fiberglass Floor Filter:
Characteristic:
1.Fiberglass filter media
2.Large ventilation quantity
3.Small resistance
4.High dust holding capacity
5.Long operating life Speciality:1. Fiberglass filter media is made of long fiberglass in non-woven way, large ventilation quantity, small resistance, good efficiency of the dust arrestance for the over-spray.
2. It is applied to the superficial spray coating high quality painting-spray filtration, high dust catching for PA-50/60/PA-100, especially suitable for using heat recovery system;

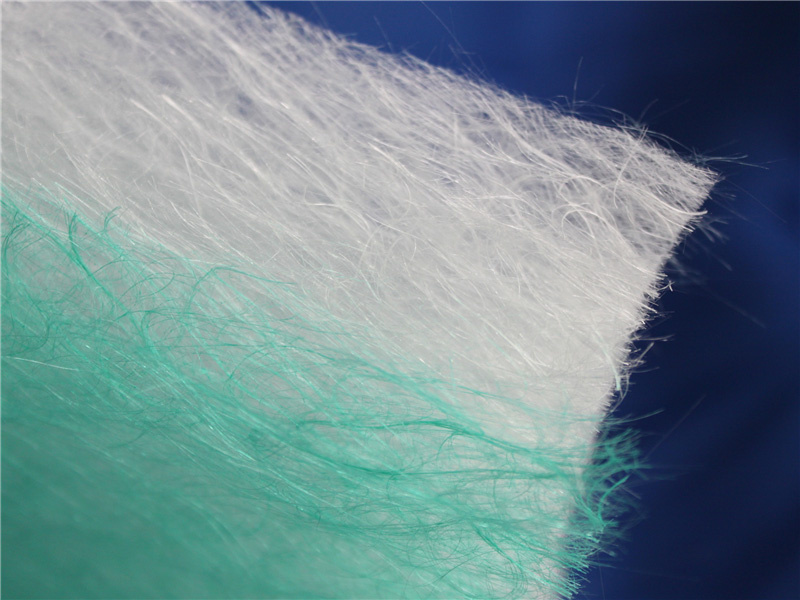

3. High strength fiberglass increasing structure; the windward side is green, the leeward side is white;
4. The low compression preformance maintains its outlook, which is completely useful for the filtration fiber to keep the oil mist and the dust;
5. Nonflammability, temperature resistance at 170°C;

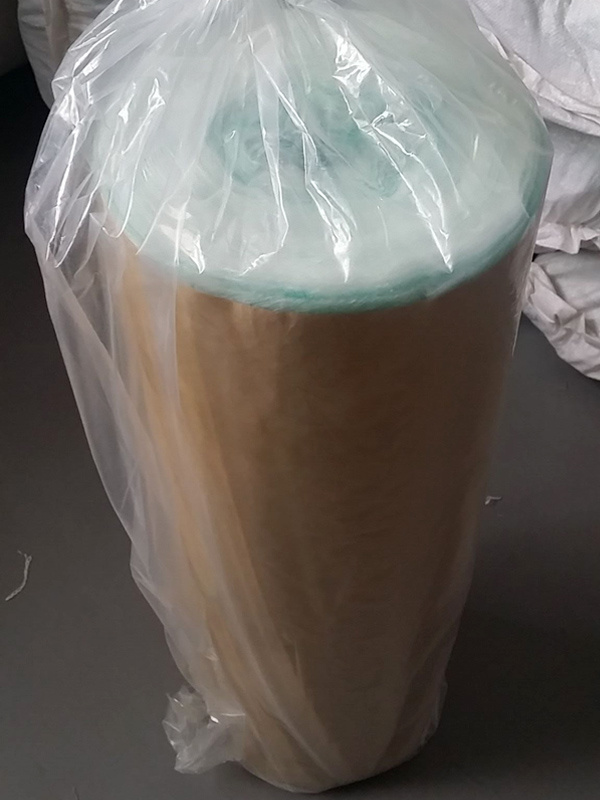

6. The compression packing may save the fare and the storage in the transportation. After decompression, it will regain its original condition;

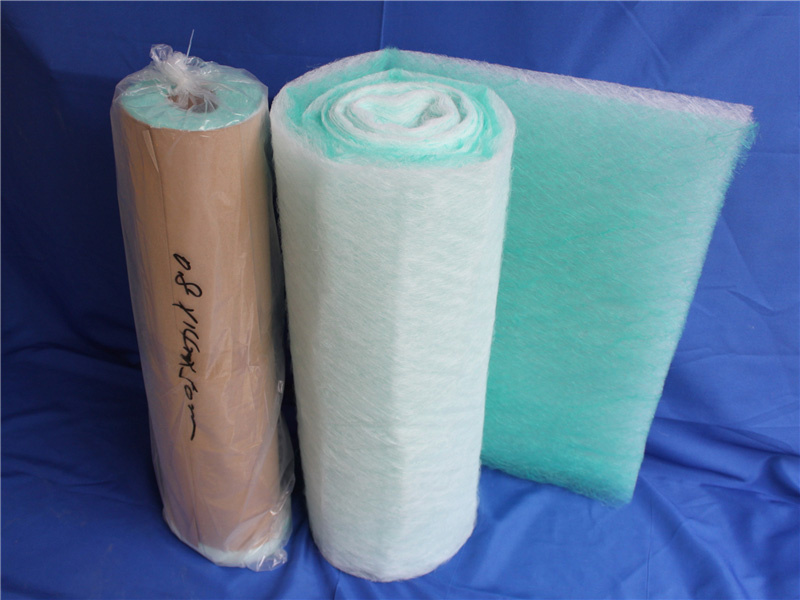

7. Outer frame may choose the paper frame, the falvanization iron frame, or aluminium alloy frame. Functions:1.Main application to the auto electrophoretic paint filter and the fire-resistant steel casting plant for the flue gas dust removal processing system;
2.Used for the explosion grinding bag dust collector in the blast furnace and cement plant.
Performance parameters:| Model | SFF/PA-50/60 | SFF/PA-100 |
| Average arrestance | 92%-96% | 97%-99% |
| Initial pressure drop | 15Pa | 20Pa |
| Final pressure drop | 250 Pa | 280 Pa |
| Air velocity | 0.7-1.5.m/s | 0.7-1.75.m/s |
| Dust holding at final | 3200-3600g/m2 | 3600-4900g/m2 |
| Temperature resistance | 170°C | 170°C |
| Temperature short peaks | 190°C | 190°C |
| Normal thickness | 50/60mm | 100mm |
| Normal size | 0.8m*20
1.0m*20m
2.0m*20m | 0.8m*20
1.0m*20m
2.0m*20m |
Pictures
| Name: |
Fresh Paint Stop Fiberglass Floor Filter |
| Application: |
Paint Spray Booth |
| Color: |
Green-White |
| Material: |
Fiberglass Media |
| Temperature Resistance: |
300°c |
| Weigh: |
160g~500g |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Electric |
| Paint Mist Treatment: |
Wet-type |
| Condition: |
New |
| Type: |
Spray Booth Filter Media |
| Certification: |
ISO/Ts 16949 |
| Substrate: |
Fiberglass |
| Brand: |
Fresh |
