Fiberglass Paper V Bank Furnace HEPA Filter with Plastic Frame

Fiberglass Paper V Bank Furnace HEPA Filter with Plastic Frame
Price: Negotiable/Piece
Min Order: 5/Piece
Pay Type: T/T,Money Gram
Fiberglass Paper V Bank Furnace HEPA Filter with Plastic Frame


Specification:

·Large air flow

·Low resistance, can be exchanged with pocket filter

·Flange frame

·Each filter has scanning test

·Expanded filter area


Application: pre-filter through air filter program, and also

for HEPA filter of the equipments with large air flow

Type: multi-layer V-combined foldaway filter

Final resistance: (suggested) ≤600PA

Temp. resistance: ≤70ºC

Humidity: ≤100%RH



Normal Size:

Dimensions(mm)

Rated air flow(m3/h)

Initial pressure (Pa)

Filter efficiency %

Material

Width*Height*Depth

Frame

Filters material

Partition material

Sealant

295*595*295

1000

≤220

≥99.99%

Sodium flame

Polystyrene

Galvanized Steel Plate

Fiberglass filter paper

Hot melt rubber

Polyurethane rubber

595*595*295

1500

295*595*295

2100

595*595*295

2700

610*610*295

3300

Special sizes available upon request.

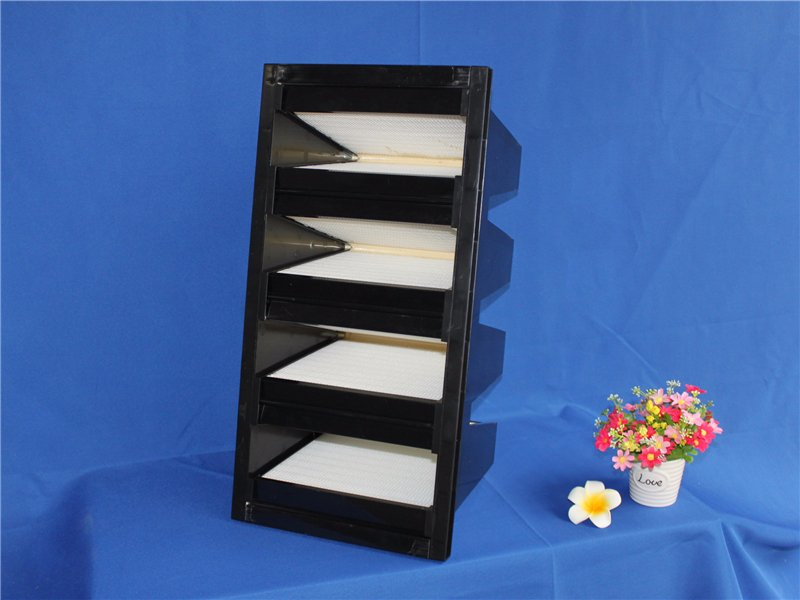

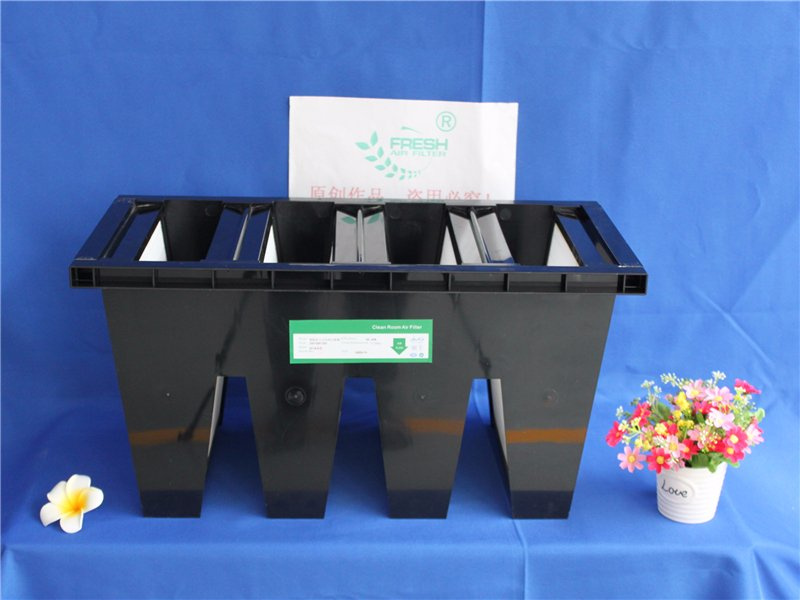

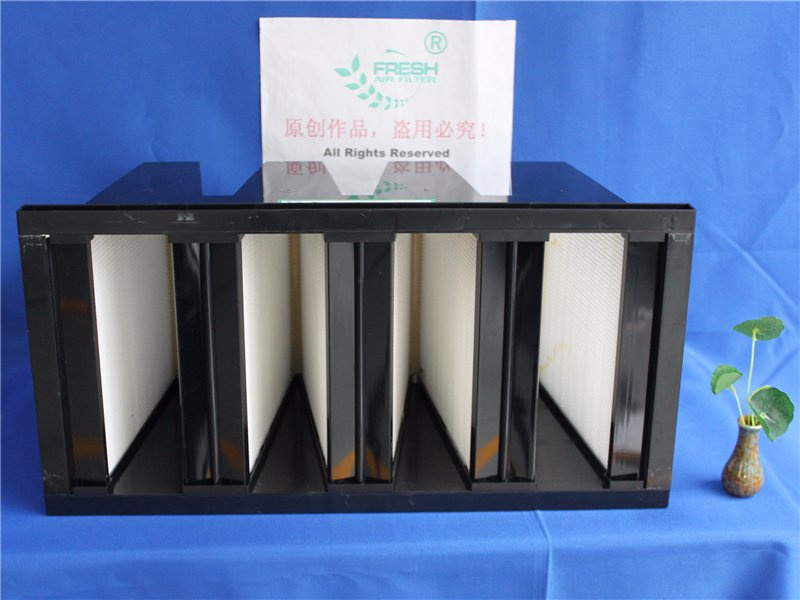

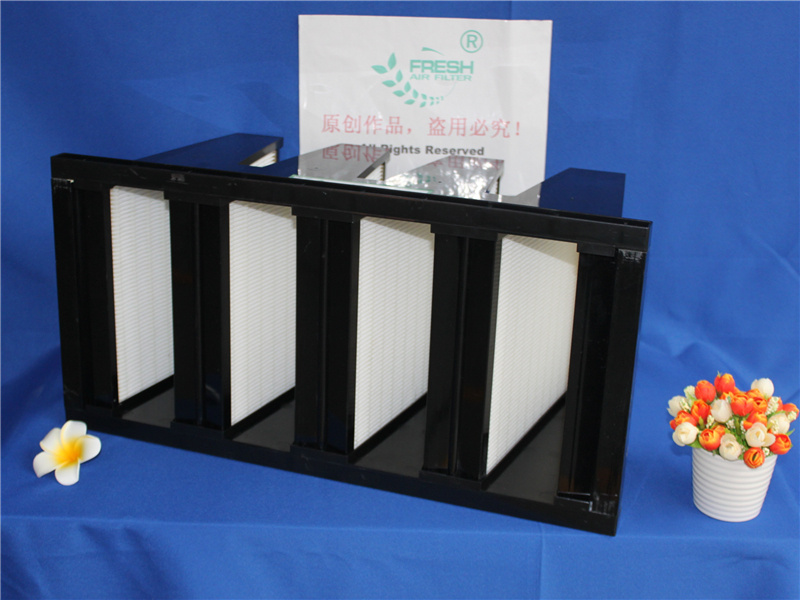

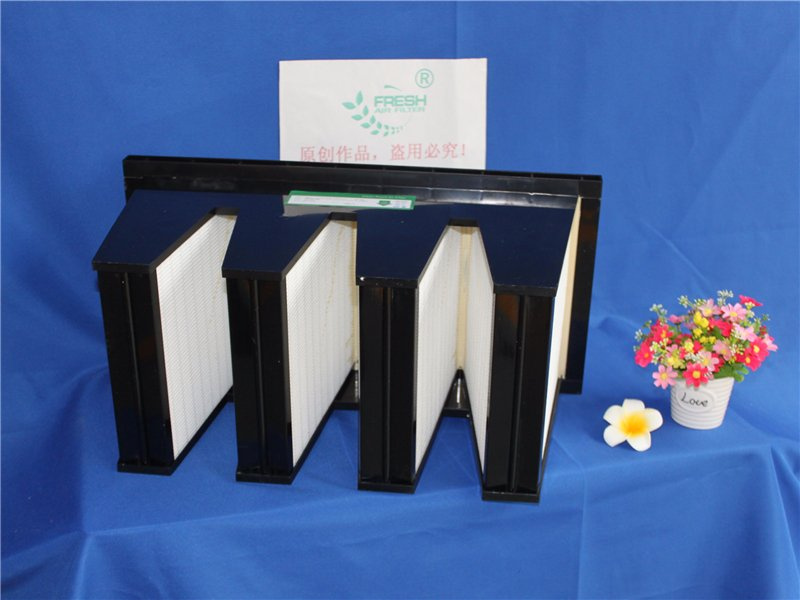

Product Pictures:



Prod Model: FRS-VCH
Clapboard: Without Clapboard
Medium Material: Fiberglass
Filter Efficiency: 90%-99.995%
Initial Pressure Drop (PA): ≤160
Partition Material: Hot Melt Rubber
Filter Number: 8
Efficiency: H10-H14
Final Pressure (PA): ≤600
Type: V Bank Filter
Certification: ISO9001, En779
FRESH was founded in 2007. In the before company was named Guangzhou Fresh and located in Guangzhou. With the stable development, our company have finished the building and move to new factory in 2014 which is located in Foshan now. More over our company has invested 10 million from city-level enterprise upgrade to provincial level enterprise.

Our new factory cover an area of 5000sqm, and own the workshops about 20, 000sqm which with large clean production room. We increase many advanced production equipment and testing equipment. Also set up R&D department, and professional testing room.

Our main products are ceiling filter, pre-filter, paint stop, activated carbon filter, panel filter, pocket filter, HEPA filter, combined filter and many other related products. These products are the hot sales in our domestic market and be widely accepted by the overseas market.

Our company has passed ISO9001 in 2010, and passed the ISO/TS 16949: 2009 in 2015. We have an independent quality supervision departments responsible for quality inspection and supervision to ensure that all products are absolutely qualified. And our products have been proved to be eco-friendly and harmless to the environment.

We insist on "Quality First, Customer First", and keep to improve ourselves. Facts have proven that high quality products and professional service will be able to help customers create more value! We believe that through our continuous efforts and pursuit, in the mutually beneficial and win-win with customers, will become China and the world famous enterprise and leading brand!
