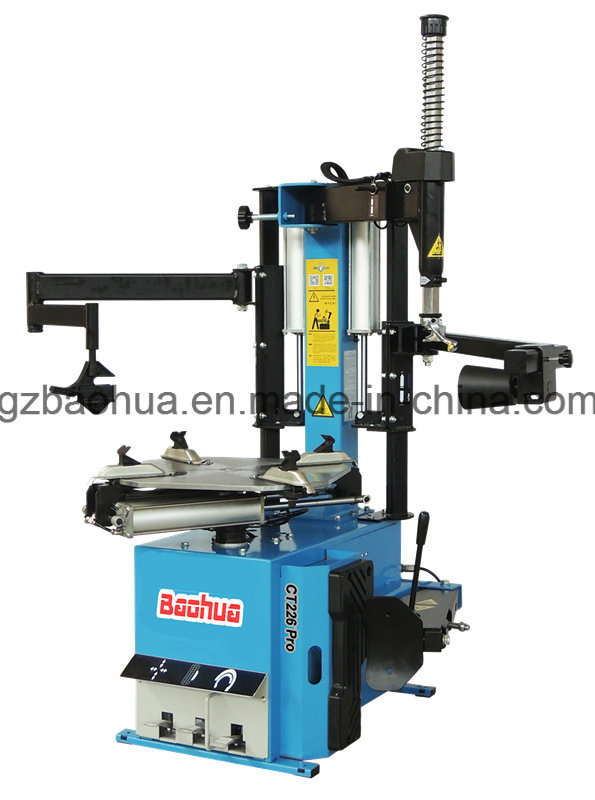

Dual Auxiliary Arm Tire Changer CT226 PRO/Automatic Tire Changer

Name: Dual Auxiliary Arm Tire Changer CT226 PRO/Automatic Tire Changer
Brand: ibuyautoparts.com
SKU: 811637605
Availability: InStock
Rating: 4.4 (49 reviews)

Price:	Negotiableset
Min Order:	1set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

1.Dual auxiliary arm tire changer CT226 Pro
2.Save work space design, applicable to small and medium car, discouraged avaliable(explosion) tire, lower than the flat performance tires, tubeless tires are available.

Independent control left and right auxiliary arm, during the tire installation can provid more flexible control tire shoulder height, easy to install tire to the wheel.

Foot pneumatic valve piston rod assembly is made of pure steel, so the surface is more smooth and corrosion resistance, longer life. Drawer control assembly, simple structure, fast and easy maintenance.

Technical data

Model	CT226Pro
Max.wheel diameter	1020mm(40")
Max.wheel width	356mm(14")
Inside chuck size	12"-26"
Outside chuck size	10"-24"
Power supply	380V/3PH/50-60Hz
Working pressure	8-12bar
Bead breaker power per cylinder	2800kg
Self-centering rotation speed	6-12rpm
Net weight	235kg

Details Image

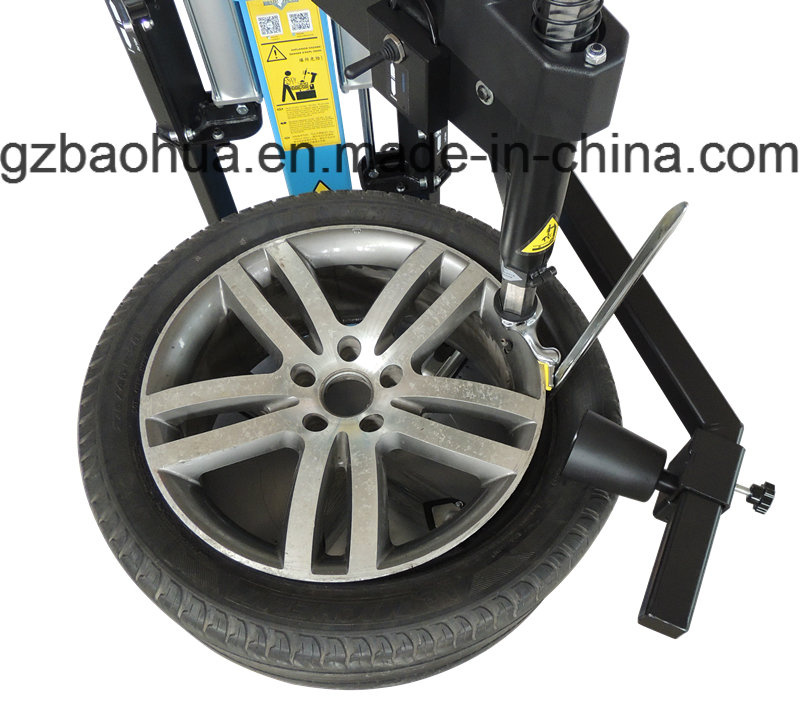

Tire-dismounting

Tire-dismountin

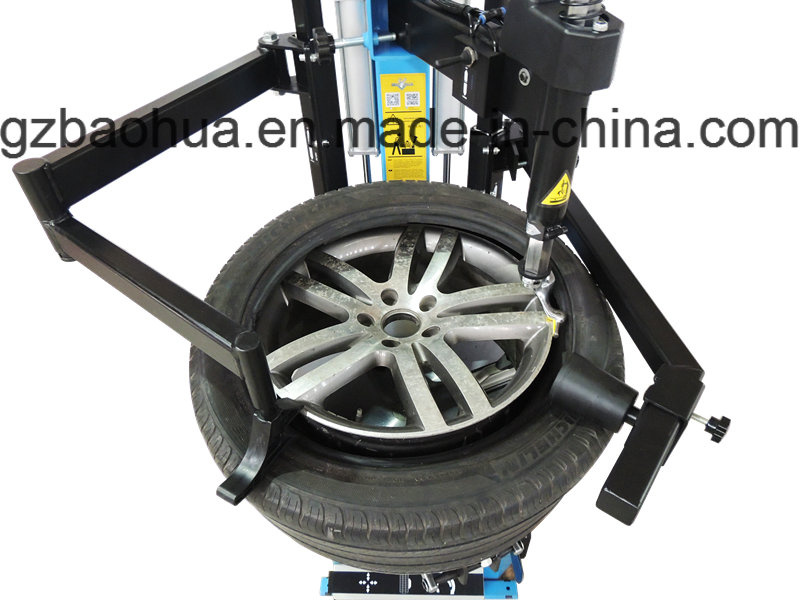

Tyre mounting

1.Pneumatic Dual auxiliary arm: Help 1+ Help 2
Can provide mobile Help 1 right auxiliary arm with rubber ire pressure rod, fit for over 13" tyre changing work. Unique design can make suer tyre and wheel have appropriate working distance, avoid scratch the wheel. Help 2 left auxililary arm got lifting founction, auxiliary large tire separate of tire shoulder.

2.Standard configuration:
(1)180mm diameter steel plated carved two-way intake tire shoulder separation cylinder, wear-resisting. Rust and corrosion resistant, long service life.
(2)Thickness is 13mm wheel chuck parts, with the function of claw size fine adjustment, claw can precise(fine) control at any position, convenient for clamp the wheel, to avoid accidentally injure.

Package details

1) one set = one package
2) Package size:1200*1000*1780mm
3) N.W.: 272kgs
4) G.W. 322kgs

Prod Model:	CT226 pro
Max. Rim Diameter:	1020mm (40")
Power Supply:	380V/3HP/50-60Hz
Warranty:	1 Year
Inside Clamp:	12"-26"
Bear Breaker Force:	2800k'g's
Max. Rim Width:	356mm (14")
Color:	Optional
Max. Wheel Diameter:	1020mm(40'')
Outside Clamping:	10''-24''
Delivery Detail:	7 Days
Certification:	CE
Condition:	New
