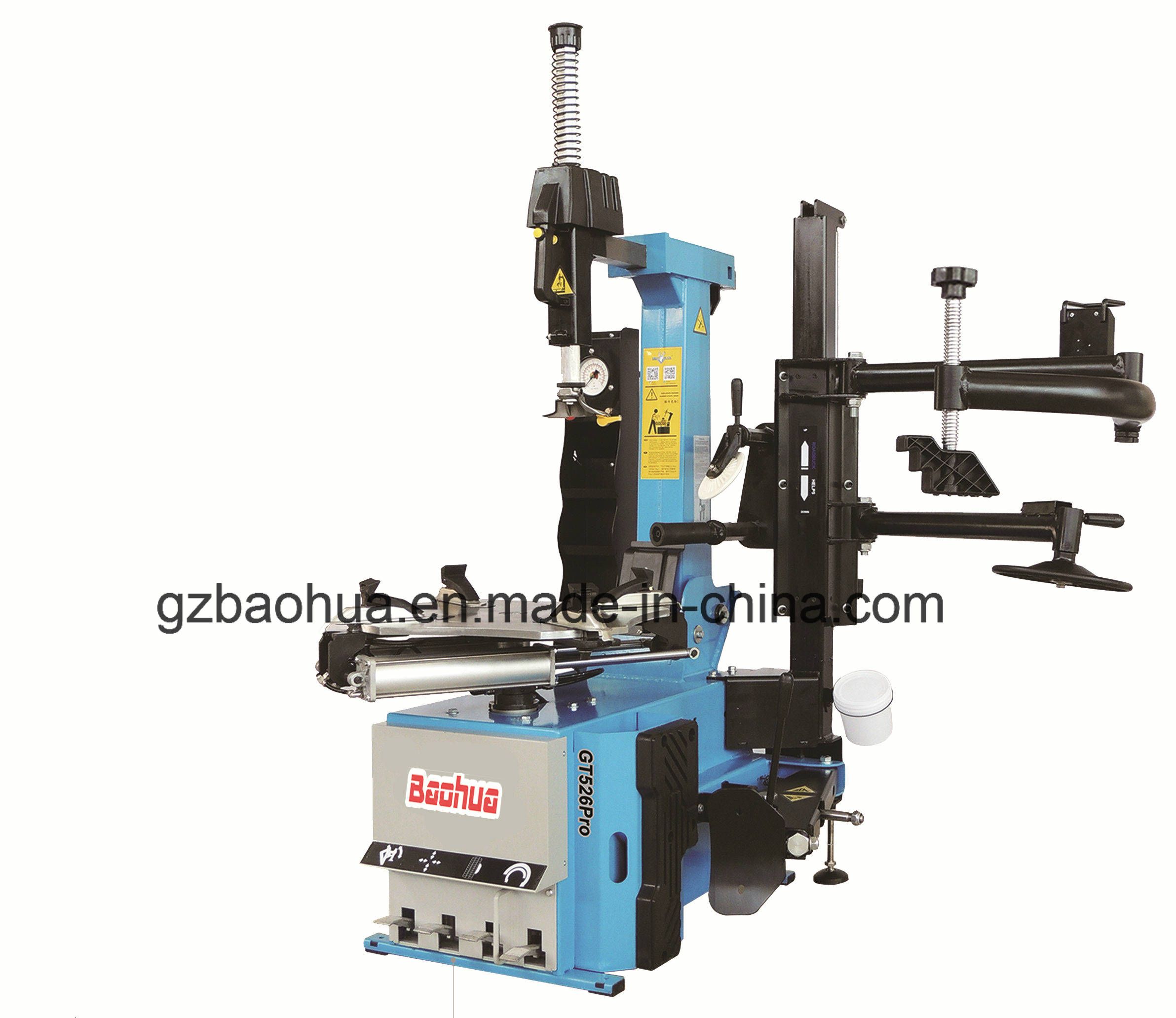

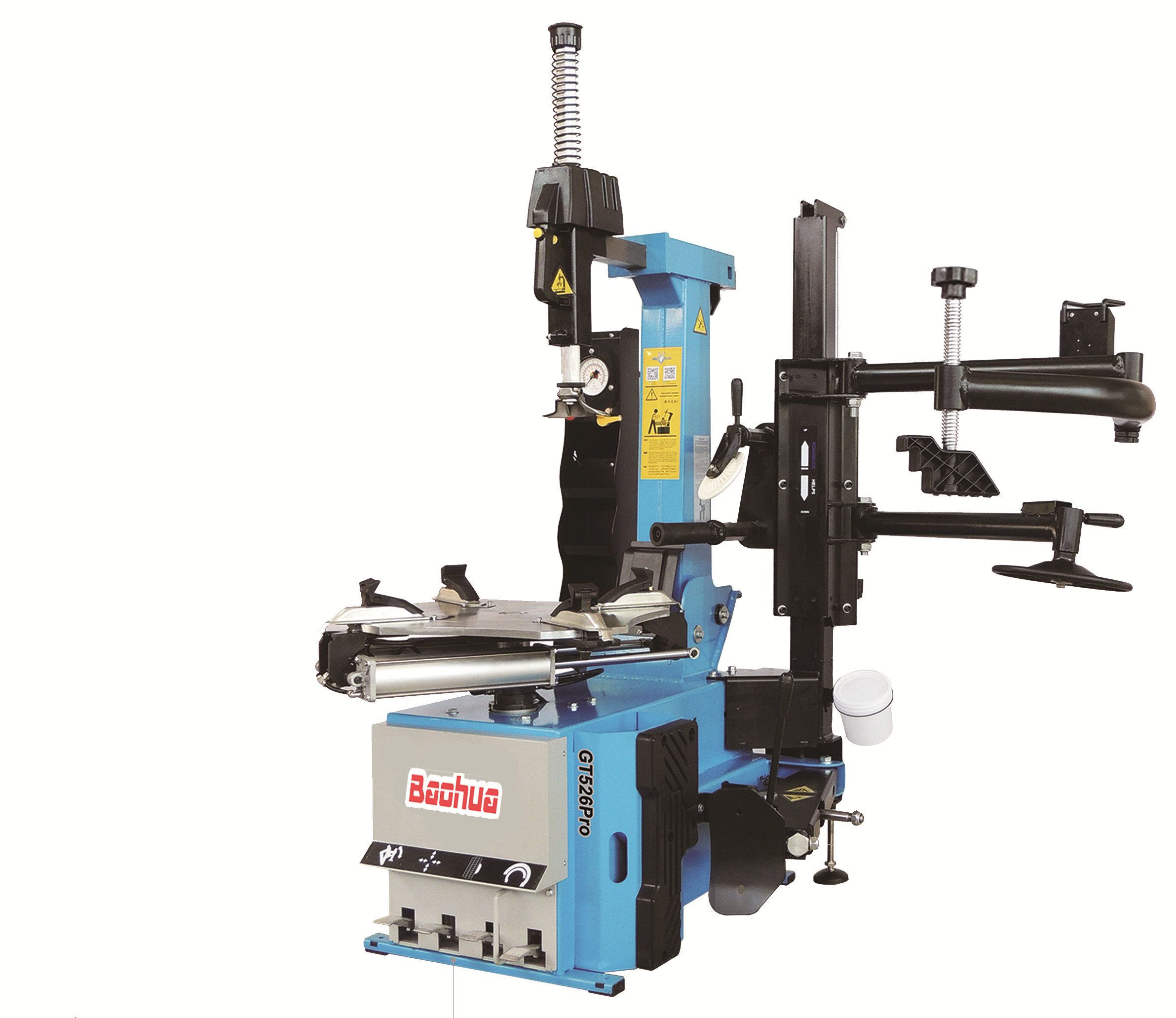

Gt526 PRO Automatic Tire Changer
| Price: |
Negotiableset |
| Min Order: |
1set |
| Pay Type: |
T/T |
Professional automatic tire changer
1.Applicable to small and medium car, discouraged avaliable(explosion) tire, lower than the flat performance tires, tubeless tires are available.2.Foot pneumatic valve piston rod assembly is made of pure steel, so the surface is more smooth and corrosion resistance, longer life. Drawer control assembly, simple structure, fast and easy maintenance.3.The trapezoid colum base and housing overall box welding design, fully ensure the high intensity. Operation under the bearing structure, the overall stability and reliability.4.Backward curved arms designed, so the top hub chuckan expand more room for operation and avoid accidental injury when clamping hub.5.Thickness is 15mm wheel chuck parts, with the function of claw size fine adjustment, claw can precise(fine) control at any position, convenient for clamp the wheel, to avoid accidentally injure.6.Using 3mm thickness steel plate combined cabinet, firm structure, weld concealment, beautiful appearance.7.Best quality all-aluminum cooper motor with advantages of faster heat dissipation, low loss, high power.8.180mm all-aluminum double-inlet tread separation cylinder, fully sealed design, low pressure supported, longer service life.9.Help 5 auxiliary pneumatic lever arm means double and single crank pressure tire design, tire fitting job multi-assisted pressure tires. The lower plate, in the demolition process can be assisted tire lifts. One lifting slide design, with fine-tuning to ensure smooth lifting and stability, more efficient and easier to use.Technical data| Model | GT526 Pro |
| Max.wheel diameter | 1120mm(44") |
| Max.wheel width | 420mm(16") |
| Inside chuck size | 12"-26" |
| Outside chuck size | 10"-24" |
| Power supply | 380V/3PH/50-60Hz |
| Working pressure | 8-12bar |
| Bead breaker power per cylinder | 2800kg |
| Self-centering rotation speed | 6-12rpm |
| Net weight | 360kg |

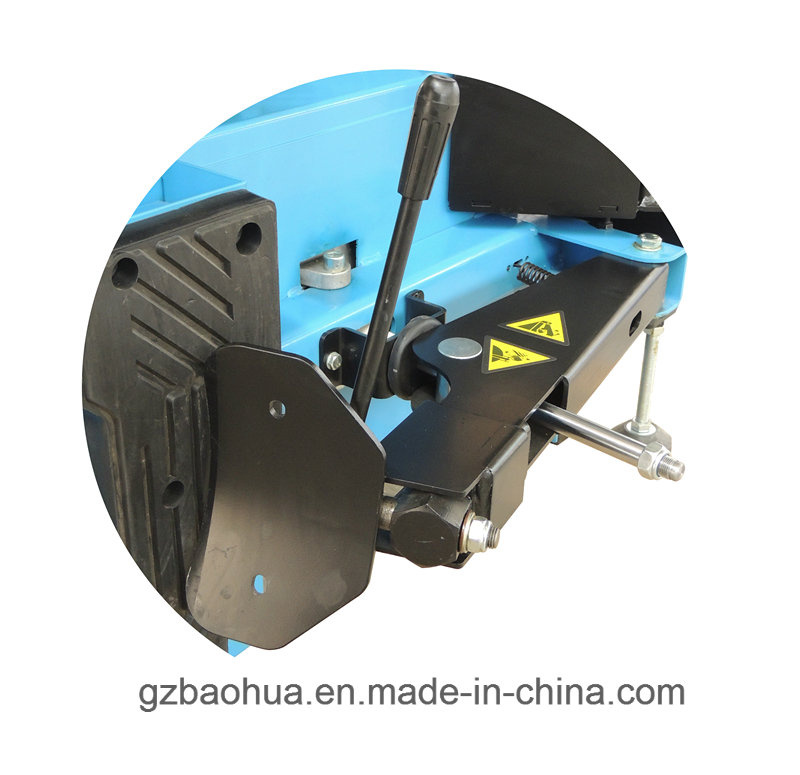

Details imageHave fixed lock at side
Lock advice,using long time,the part wear,should fixe it.
Tire inflator on machine post,for long time using.
Manual tire press tools

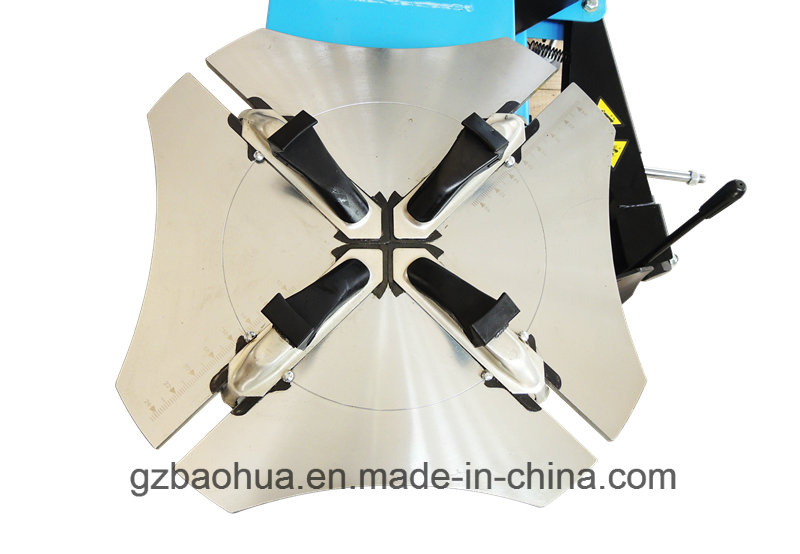

Rim thickness:13mm,not easy out of shape,when remover heavy tyre.
Front and back tilt

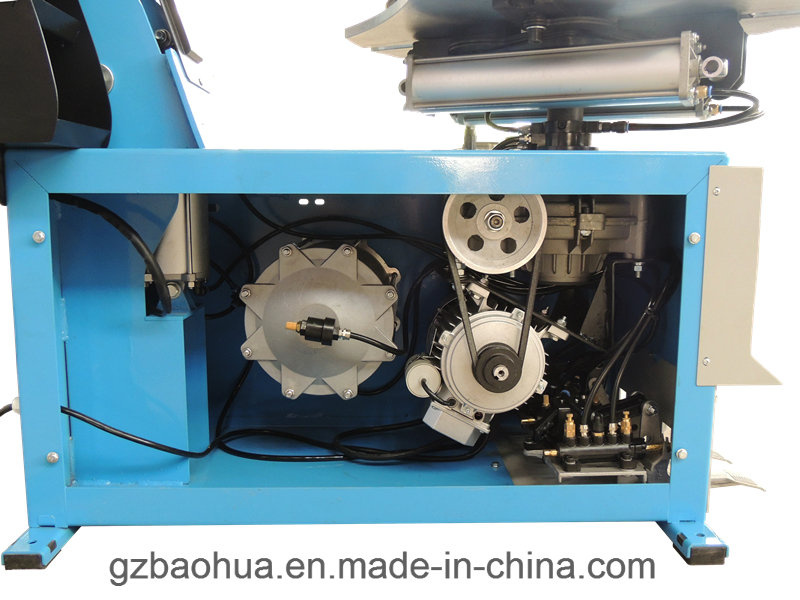

Full copper wire with aluminium cover (better radiation)

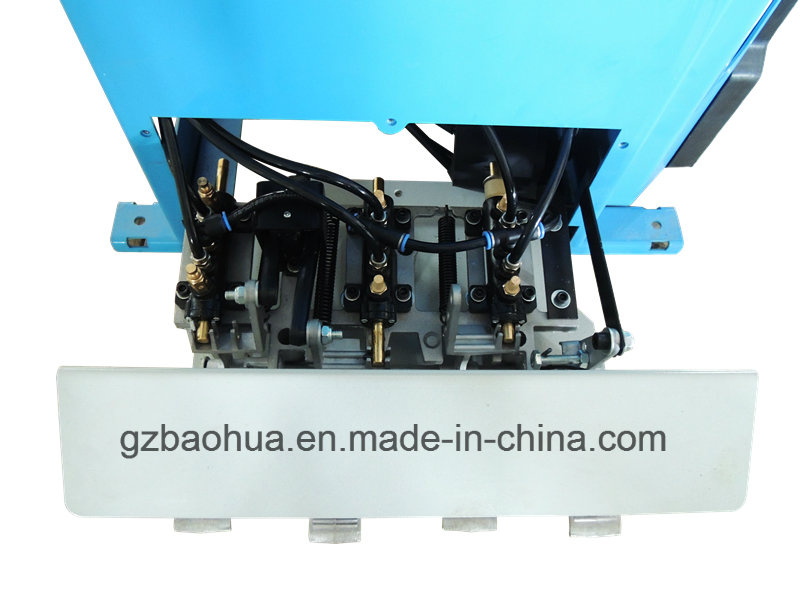

Foot pedal install in one drawer easy to maintenance
| Prod Model: |
GT526 Pro |
| Color: |
Optional |
| Operating Pressure: |
8-12bar |
| Max. Rim Width: |
420mm (16") |
| Warranty: |
1 Year |
| Power Supply: |
380V/3HP/50-60Hz |
| Delivery Detail: |
7 Days |
| Outside Chuck Size: |
10"-24" |
| Inside Chuck Size: |
12"-26" |
| Condition: |
New |
