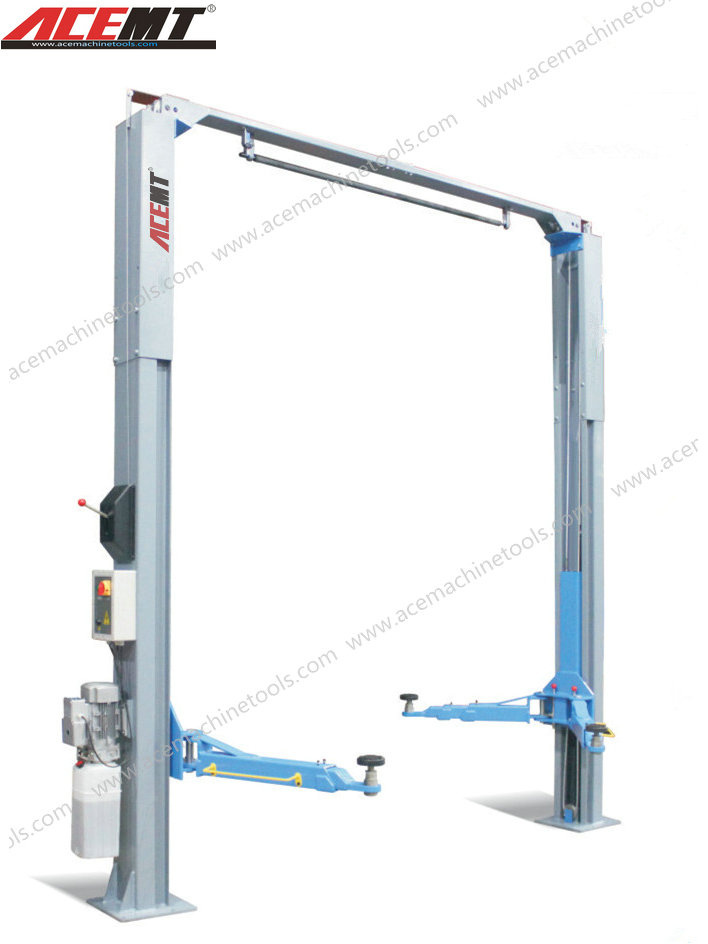

Double Heavy Duty Vehicle Lift (ACEL40CF/50CF)

Name: Double Heavy Duty Vehicle Lift (ACEL40CF/50CF)
Brand: ibuyautoparts.com
SKU: 782576885
Availability: InStock
Rating: 4.5 (137 reviews)

Price:	US $ 1000-2000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	ACEL40CF/50CF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max.Lifting Height:	1900mm
Minimum Height:	95mm
Lifting Time:	55-60s
Type:	Double Cylinder Hydraulic Lift
Lifting Capacity:	3.5T
Certification:	CE
Design:	Two Post

Product Description

FEATURES:
4000kg/5000kg Lifting capacity.
Clear floor design, can make the operator in the vehicle under working more easily.
Double hydraulic cylinder direct drive,without chains.
The column double S unique design, beautiful apperance.
Manual release from one side.
Heavy duty lifting arms.
2Aluminum shell motor, prevents overhearted.
Operation control system with 24V safety voltage.
24V height limit switch.
Feet-protection guardrails and door-opening protection rubber pad.
Truck adapter(8pcs)standard configuration.
Hydraulic pressure pre-set preventing from lifting vehicle with exceeding rated loads.
It has adopted 115% dynamic loading capacity and 150% static loading capacity tested.
CE certificated..
TECHNICAL SPECIFICATION:

Lifting Capacity	4000/5000kg
Max.Lifting Height	1900mm
Minimum Height	95mm
Lifting Time	55-60s
Overall Height	3900mm
Overall Width	3560mm
Width Between Columns	3000mm
Motor Power	3.0kw
power supply	220V/240V/380V/415V
Weight	747/857kg
Packing Size	2900530770mm

ACE MACHINE TOOLS Co., Ltd, is a specialized exporter and manufacturer of machine tools and accessories with a long history.

Our mechanical products cover more than 80 kinds including lathe, milling machine, drilling machine, grinding machine, power press, hydraulic guillotine, hydraulic press brake, CNC & automotive machines and so on.

Our customers are widespread in more than 30 countries including U. S. A., Germany, Spain, France, England, Greece, Finland, Norway, Canada, south America, Middle East, Australia, Africa and southeast Asia etc.

Our principle to all the customers is high quality and good service. We have quality control team who will carefully inspect every machine in workshop before packing.

Welcome you to visit our website and contact us. We will give you quick response upon any of your need.
