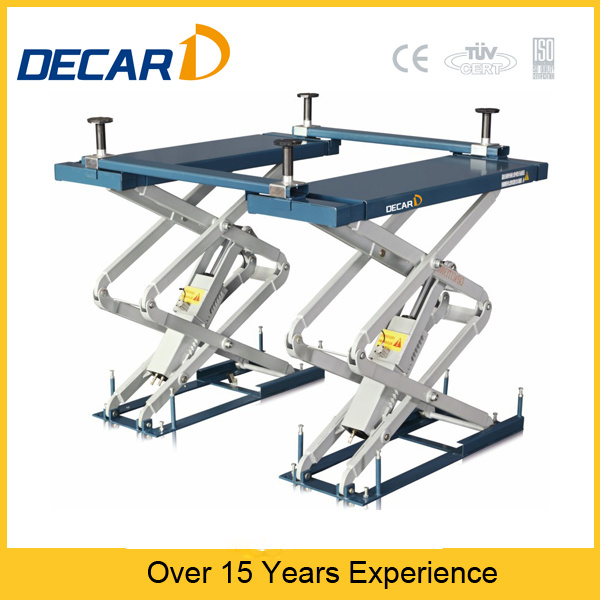

Decar Dk-SUV30 Car Scissor Lift

Technical data


Model	DK-B32
Capacity(kg)	3000kg
Rise/ Drop time(s)	55/55
Lift height(mm)	1900mm
Min height(mm)	1100mm
Machine width(mm)	600mm
Rated oil pressure(Mpa)	25Mpa
Motor speed(r/min)	1440r/min
Gear pump displacement(ml/r)	4.2ml/r
Power supply(v)	380V
Motor power(kw)	2.5kw
Control voltage(v)	24v
Explosion proof valve	1/4"
Protected foot switch	500mm
Control box with CE certificate	IP54



Main feature

1.Can pull, Max: 1835mm

2.Anti-pressure hand-pull-out design

3.6mm pattern board design, tensile deformation ability.

4.Adopts Q345 international 25mm solid steel, avoid of deformation permanently.

5.Height limit

6.Tubing explosion-proof device

7.Stainless steel slide, less resistance, and more smooth the rise and fall, replaceable and easy maintenance for later.

8.Secondary down limit switch

9.Height from the ground  Min: 110mm Max: 1900mm

10.Convenient for exhuasting and leveling

11.Help arm

12.Filling oil

Price Terms & Delivery Period


1.Payment Terms: 30% deposit, balance paid before shipment(T/T or L/C or Escrow). You can ask inspector to inspect the machine.

2.Delivery: 5 working days after order confirmed less than one container .

3.Packing: At first use PE film package which can protect this machine very well. Next use plywood box packaging outside, which is suitable for long-distance sea transportation and various types of weather conditions.

4.Guarantee: 15 months quality guarantee.



Service & Support
1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in professional.

3. Customizd design is avaliable.OEM&ODM are welcome.

4. Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers .

5. Special discount and protection of sales area provided to your distributor.

6. Provide different grades of products, to meet market requirements.

7. Purchase the machine from our company, the machine parts are provided within guaratnee period.
