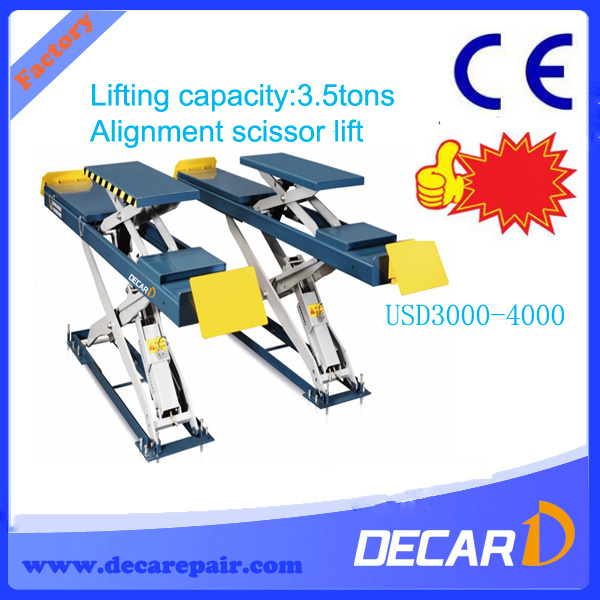

Automotive Scissor Lift Car Repair Dk-35

 1.Technical data

Model	DK-35
Capacity(kg)	3500kg
Motor supply(v)	380V/220V
Original height of platform(mm)	330mm
Host lift height(mm)	1850mm
Host rise/drop time(s)	45/38
Gas supply	6-8kg/cm²
Client capacity(kg)	3500kg
Motor power(kw)	2.2kw
Hydraulic oil	18L 46#wear-resistant hydraulic oil
Client lift height(mm)	450mm
Client rise/drop time(s)	15/14


2. Main feature

1. Polymer oily wear slider
2. Tubing explosion-proof device
3. 2mm cold-tolled plate slide, less resistance,and more smooth the rise and fall,replaceable and easy maintenance for late.
4. Integral base, easy to install, and horizontal.
5. CE Standard 3 insurance gear design
6. Adopts Q345 international solid steel, avoid of deformation permanently.
7. Adopts Q345 international 25mm solid steel, avoid of deformation permanently.
8. 4 meters long 6mm thickness 50 × 120mm strengthen the heavy square tube.

Price Terms & Delivery Period


1.Payment Terms: 30% deposit, balance paid before shipment(T/T or L/C or Escrow). You can ask inspector to inspect the machine.

2.Delivery: 5 working days after order confirmed less than one container .

3.Packing: At first use PE film package which can protect this machine very well. Next use plywood box packaging outside, which is suitable for long-distance sea transportation and various types of weather conditions.

4.Guarantee: 15 months quality guarantee.



Service & Support
1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in professional.

3. Customizd design is avaliable.OEM&ODM are welcome.

4. Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers .

5. Special discount and protection of sales area provided to your distributor.

6. Provide different grades of products, to meet market requirements.

7. Purchase the machine from our company, the machine parts are provided within guaratnee period.
