Da-Vina 2534 Auto Scanner (Jaguar Land Rover Approved SAE J2534 Pass-Thru Interface)

Name: Da-Vina 2534 Auto Scanner (Jaguar Land Rover Approved SAE J2534 Pass-Thru Interface)
Brand: ibuyautoparts.com
SKU: 727270545
Availability: InStock
Rating: 5 (88 reviews)

Price:	US $ 138/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

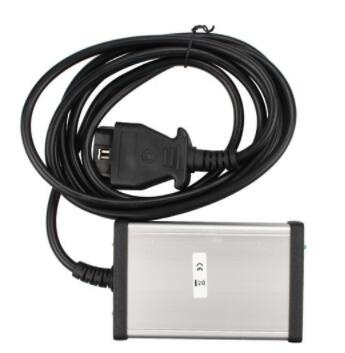

DA-VINA 2534 (Jaguar Land Rover Approved SAE J2534 Pass-Thru Interface)

Advantages:

* JLR Approved device

* Replacement for JLR SDD VCM

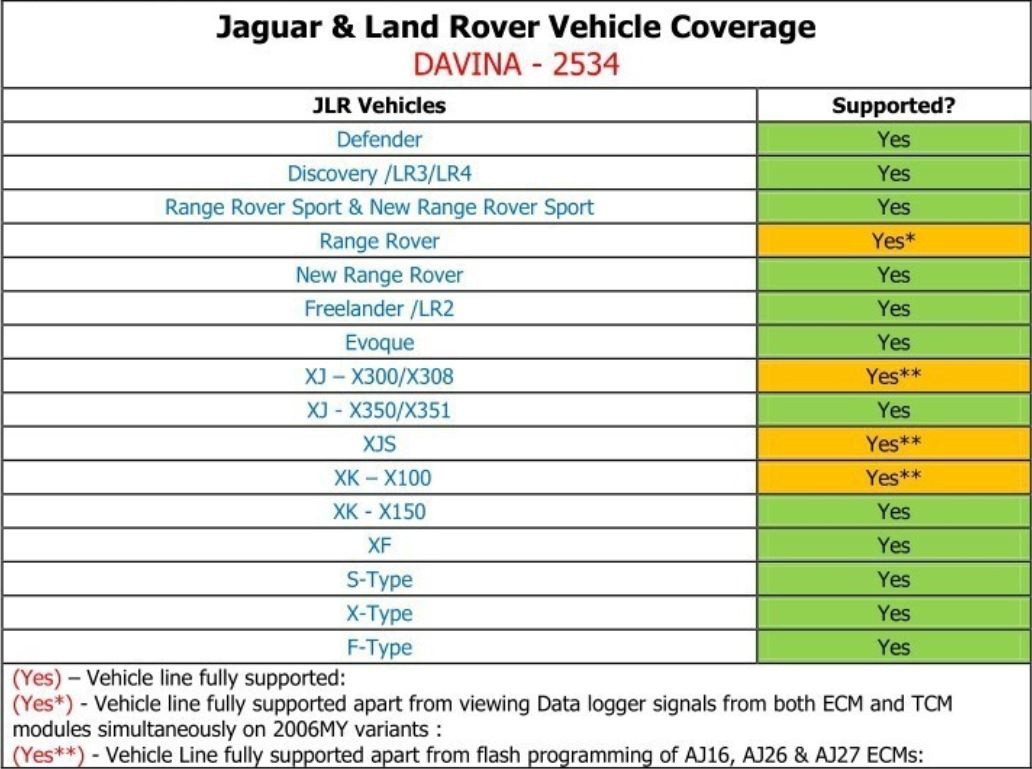

* Works on all LandRover and Jaguar

* Works more steady than VCM, it will not lose connection during the process of programming.

Software Version: V137.02

The DA-VINA 2534 is a high-performance pass-thru (SAE J2534) vehicle interface. This unit connects directly to the vehicle OBDII (Diagnostic) connector; it then connects to any laptop via a USB 2.0 cable. Once the J2534 Driver files are loaded, this product will allow normal operation with OEM compliant J2534 diagnostic applications. This device supports CAN, FT CAN, ISO and SCP (J1850) protocols.

Overview

* JLR Approved device

* Replacement for JLR SDD VCM

* Covers CAN, ISO9141, SCP Vehicle Networks

* Most cost effective Jaguar pass-thru VCI device

* Best Suited for Legacy, Current and Future Vehicles

* 12ft USB Cable as standard included

1.What does the DA-VINA 2534 do?

----The DA-VINA 2534 connects directly to the vehicle OBDII (Diagnostic)connector, it then connects to the laptop via a USB cable for use withSDD.Once the J2534 DLL files are loaded, this product will allownormaloperation with JLR SDD Diagnostic Tool. All communication ispossible onwith this device

2. How does the DA-VINA operate in J2534 Mode?

The DA-VINA is simple and easy to use

* install these on the SDD Laptop

* Connect the J2534 device to the vehicle OBDII connector (thedevicepowers from the vehicle)

* Connect the 12ft USB cable to the DA-VINA and the other end to theSDDLaptop

* The (PWR) LED will turn solid red to show the DA-Dongle is powered

* During communication with the vehicle the Status (STS) LED willflashgreen

Other JLR related products available

* EPBR Electronic Park Brake Release

* SIR - Service Interval Reset

* TM - Transport Mode Toggle

* PDI - Pre-Delivery Inspection

* DTC DTC clear tool (for non-warranty vehicles)

* J2534 J2534 pass-through communications device for SDDVCMreplacement

* DPFDR - DPF Dynamic Regeneration

* TTMT Tight Tolerance Mode Toggle

* DA-ST512 Multi Application Hand Held Device

Prod Model:	D089
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item Type:	Car Diagnostic Cables and Connectors
Weight:	0.2kg
Special Feature:	Cable
Hardware Version:	Newest
Certification:	CE
Update Method:	by Email
