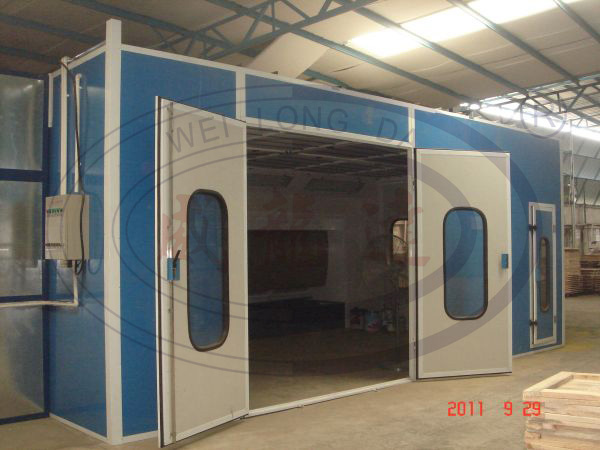

Customized Industrial Water Curtain Paint Booth

Name: Customized Industrial Water Curtain Paint Booth
Brand: ibuyautoparts.com
SKU: 756261875
Availability: InStock
Rating: 4.4 (124 reviews)

Price:	US $ 14500-15500/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Customized
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
External Size:	700052003000
Internal Size:	690039002600
Water Curtain Cabinet Size:	300012001900
Inside Booth Brightness:	800lux
Air Flow:	24000m3/H
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Substrate:	EPS
Brand:	Weilongda

Product Description

1. With over 15 years experience in water curtain spray booth
2. Real big factory in China,covering over 15000 square meters
3. OEM service, can design according to customers requirement
4. The temperature can reach over 200 degree
5. Welcome to visit our factory any time.

Water Curtain Spray Booth

Technical parameter

External size (mm)	7000 x 5200 x 3000
Internal size (mm)	6900 x 3900 x 2600
Water curtain cabinet size (mm)	3000 x 1200 x 1900 2 sets
Inside Booth Brightness (LUX)	71800
Air flow	24000m³/h

Main structure and parts
Consist of cabin, air circulation system and control system

Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Galvanized steel roof panel.
Door: 3 pcs of front doors with powder coating treatment frame. Size: 2400(w) x 2600(h). 1 pc of emergency door.
Lighting System: Ceiling light has 24 pcs of 36w lamps. 800 Lux.
Intake Air Circulation System: 2x4kw intake fan. Air Flow 24000 m3/h.
Exhaust Air Circulation System: adopts water curtain filter treatment device. Structure characteristics: Two sets of water curtain painting cabinet in the booth. Water pool adopts 3mm welded steel plate. Air circulation boards adopt 1.5mm thickness steel plate; Water curtain board is stainless steel, each water curtain painting cabinet equips 1 x 3kw pipe type fan for exhausting.1 set of 5.5kw pump for water supply. Water can be recycling use.
Control system: Adopts famous domestic components, Equoip with over load & shortcircuit protected, safe and reliable.

Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.

Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.

After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.

Please feel free to contact members of Weilongda and start a happy and win-win cooperation.

With your join, the future is better.
