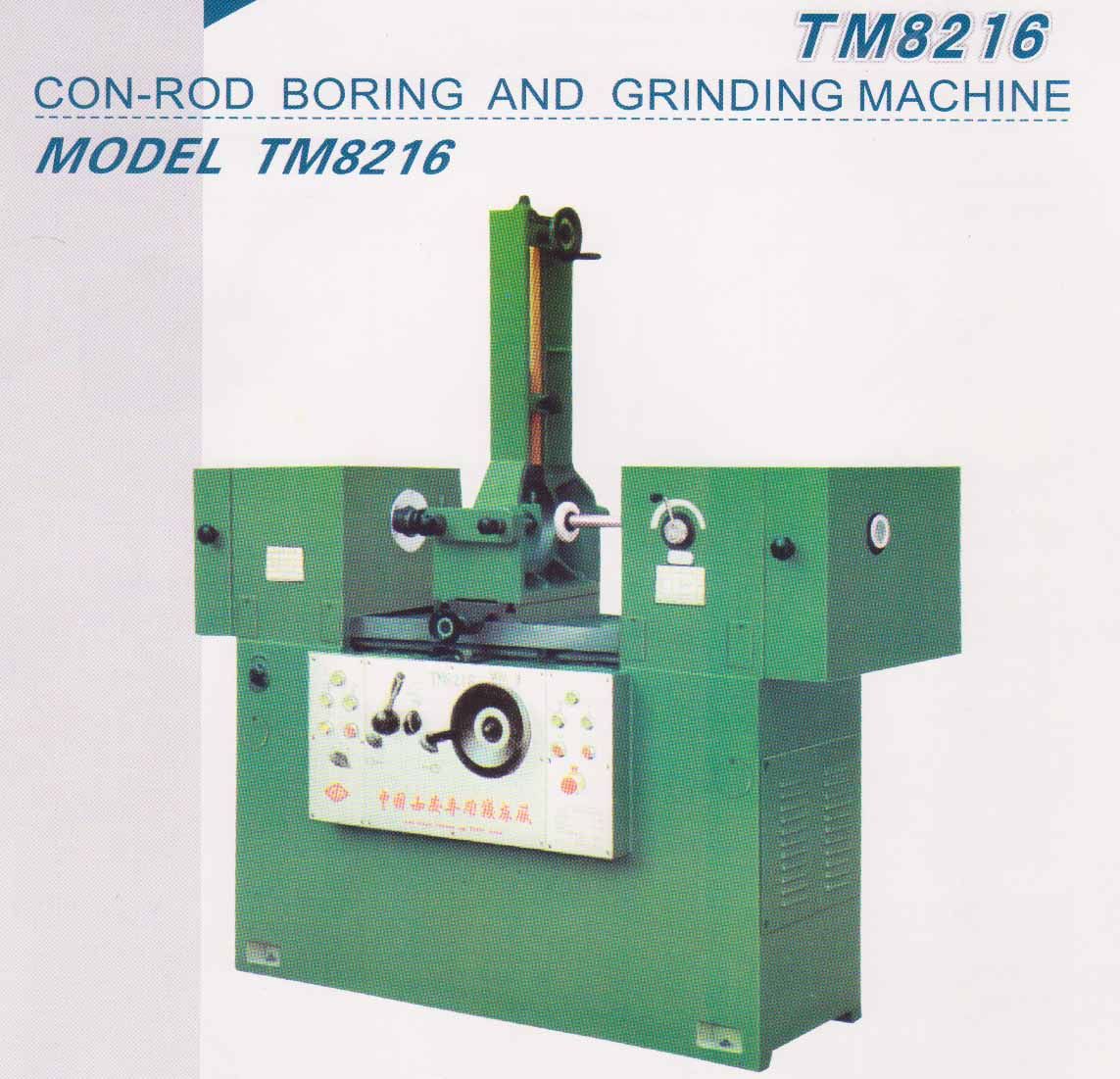

Con-Rod Bush Boring & Grinding Machine (TM8216)

Con-rod bush boring&grinding machine
Model: TM8216
TM8216 is mainly applied to bore and grind bearing holes (including copper quill
And connecting-rod tile) on connecting rod of gasoline and diesel engine in automobile,
Tractor and other power sources. Customer also can carry out fine boring
Or grinding process to connecting rod bearing seat of deformed workpiece, after
Grinding combining surface, to ensure the parallel of two center lines. Equipped
With various specialized fixture, TM8216 can be used to complete fine boring and
Grinding process to piston pin hole, gas pump bearing hole and valve seat hole,
etc.

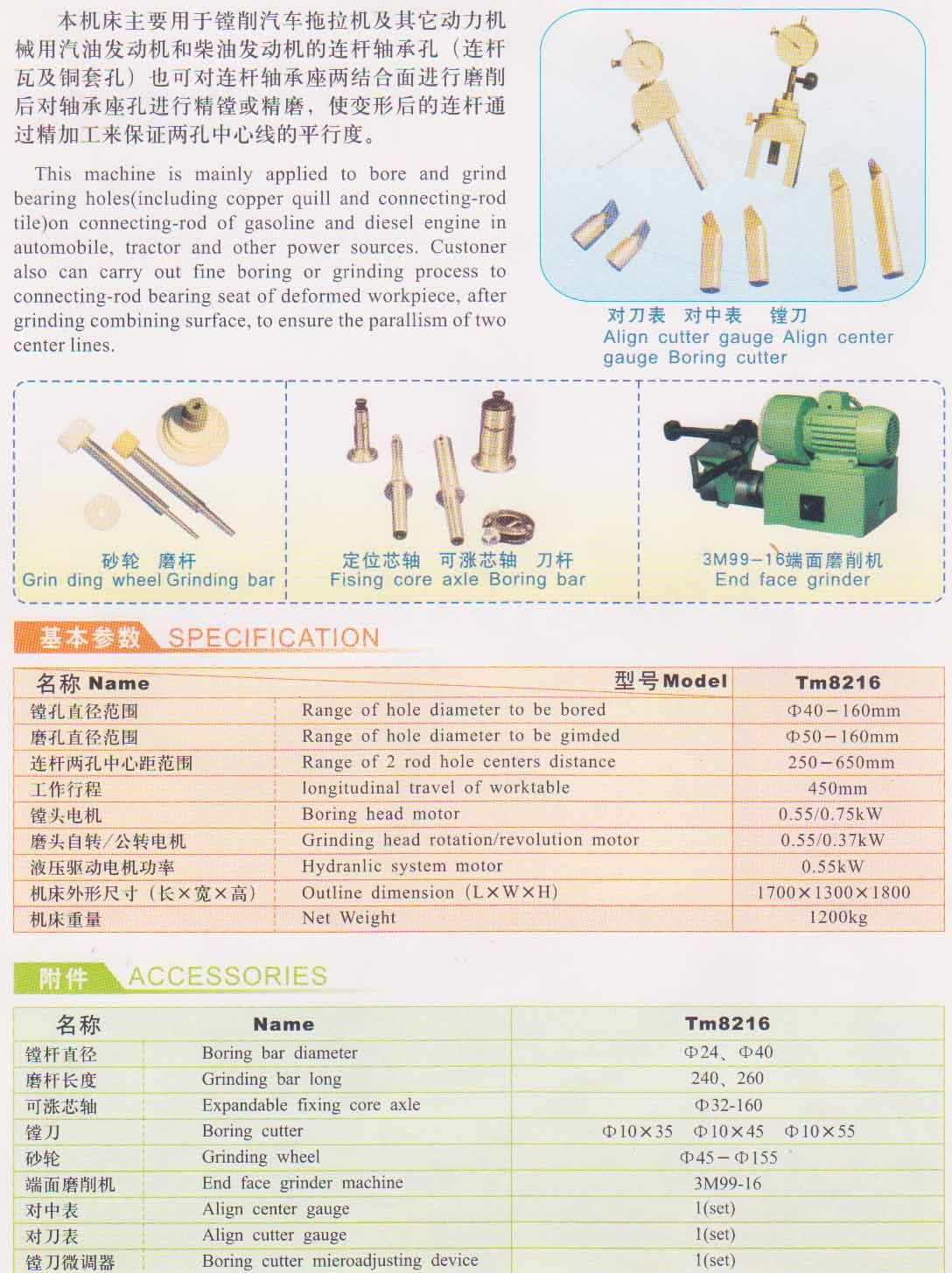

Specifications:
Range of hole diameter to be bored: 20-160mm
Range of hole diameter to be grinded: 30-160mm
Distance between 2 holes center of rod: 80-650mm
Distance between center of boring and grinding bar to the work table: 270mm
Longitudinal travel of worktable: 450mm
Boring head motor: 0.55/0.75kw
Grinding head rotation/revolution motor: 0.55/0.37kw
Hydraulic system motor: 0.55kw
Outline dimension: 1700*1300*1800mm
N. W/G. W: 1400/1800kg
Packing size: 2500*1100*1500mm

Con-rod bushing boring machine: Model T8210D.
It Can be sued with cylinder body bushing boring machine Model T8115. This machine has good performance, better structure easy operation and high accuracy. The machine is mainly used in boring rod bushing hole (rod bushing and copper bush) of diesel and gasoline engine of automobiles and tractors. In case of necessity, rod bushing seat hole can be fine bored. The rough and fine boring processing for the holes on other parts can be also
Completed after changing the corresponding clamps. Besides, it has the accessories
For centering rectifying tool, boring tool and boring micro-adjustment etc.

Specifications:
Range of hole diameter to be bored: 20-100mm
Distance between 2 holes center of rod: 125-425mm
Longitudinal travel of worktable: 220mm
Boring head motor: 0.65/0.85kw
Overall dimension: 1150*570*1710m
