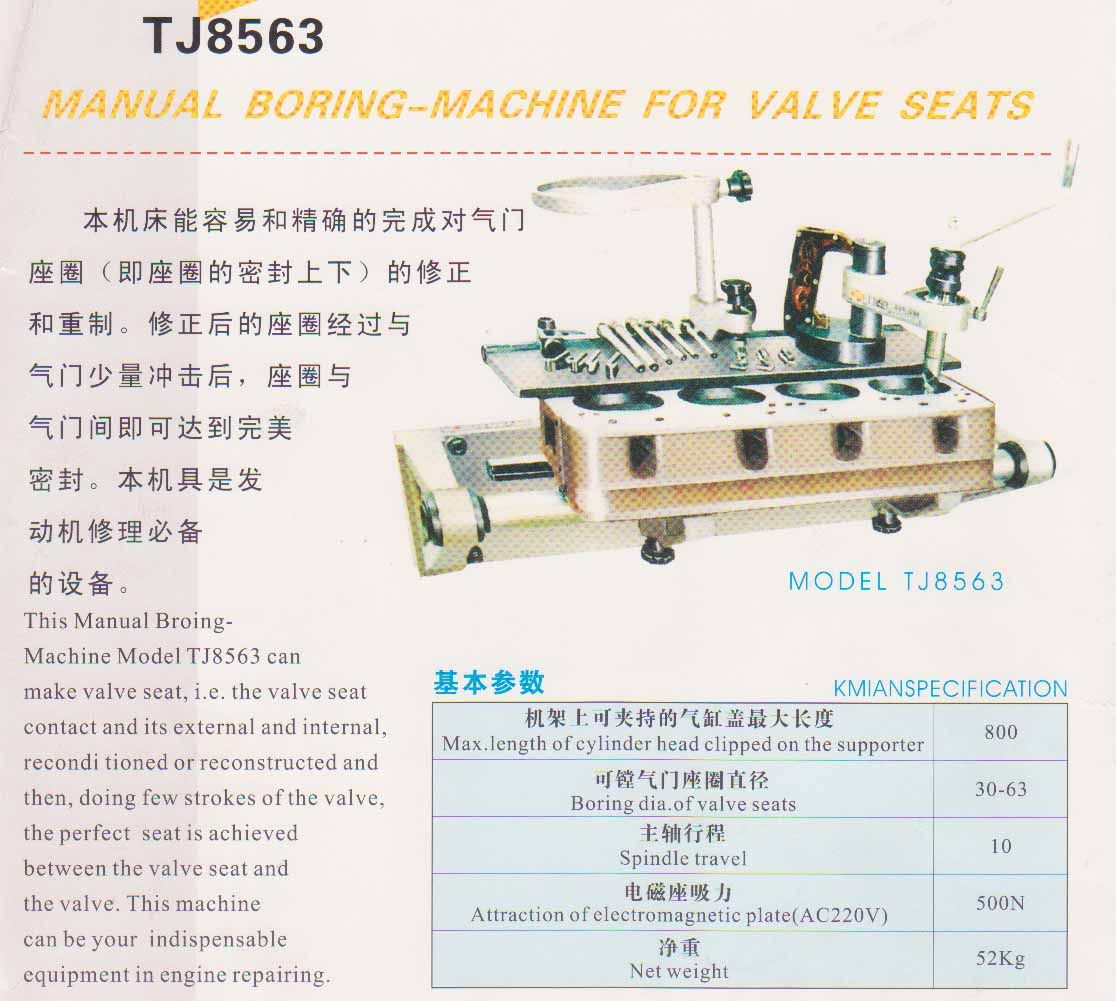

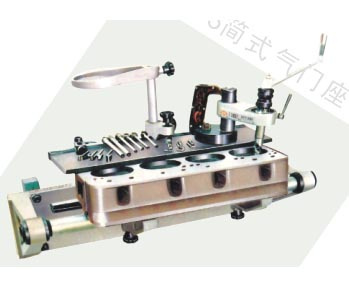

TJ8563 SIMPLY BORING MACHINE FOR GAS VALVE SEATS
This Manual Broingmachine Model TJ8563 can make valve seat, I. E. The valve seat contact and its external and internal, reconditioned or reconstructrd and then, doing few strokes of the valve, the perfect seat is achieved between the valve seat and the valve. This machine can be your indispensable equipment in engine repairing.
KMIANSPECIFICATION
Max. Length of cylinder head clipped on the supporter
800
Boring dia. Of valve seats
30-63
Spindle travel
10
Attravtion of electromagnetic plate(AC220V)
500N
Net weight
52Kg
T8590A BORING MACHINE FOR GAS VALVE SEATS
The machine tool suits the needs of various cylinder cover for every engine. It can manufacture the gas valve seats hole for cylinder cover with various angles. W hen equipped with boring-drilling tools, it can bore, drill, ream the pipe seats hole for gas valve or repair it.
SPECIFCATION
Main cylinder moving range
1000× 340× 160
Main culinder rotating speed
180
Slide moving range
Transverse 860
Longitudinal 120
Swiveling range
0~7degrees
Rotating range
-30degrees~+30degrees
Boring machine diameter
Φ 25~Φ 90
Main motor power
1200Kg
Max ex-size of lid
1300× 800× 1980
Characteristics:
1\ It's adopted haver working date and special rptatable slide.
2\ It can be widelu used with many knives and di.
3\ It's rapide-checking and non-pollutioning.
4\ Knives can be multi-used.
5\ It is suitable for boring lathing.
6\ It meets mater heads of all sorts.
T8560A BORING MACHINE FOR GAS VALVE SEATS
The machine tool is special equipment for repairing and boring the seat retainer hole of engine valve. The boring head case body and main shaft adopt the progressive flotation technology with the features of immediacy exact centering, reliable repairing boring quality, handiness and high operation efficiency. It can process various cylinder covers and multi-angles valve seat retainer holes. It is improved from model: T8560in appearance and perfomrance, that is, the boring head can secondary air-float which enchance the positioning accuracy again.
Characteristics:
1\ Smooth movement of boring head case body, agile swing of main shaft and fast exact positioning.
2\ Turning jig, pneumatic locking & handiness.
3\ Multi-specification form cutter and setting spindle with wide applicability.
4\ Vacuum detection system for fast detection.
5\ Special tool sharpener to be convenience for regrinding cutter.
6\ Carry out transformation of conduit hole after mounting drill & reamer
We mainly export automobile maintenance and repair equipments and engine rebuilding machines, such as following:
I. GARAGE EQUIPMNETS
1. Tire changer/ wheel balancer;
2. Nitrogen producing& inflator for tires
3. Car lifts
4. Spray booth/ infrared varnish-baking light series
5. Fuel injection pump test bench
6. Universal collision repair system
7. Four-wheel alignment
8. Auto air-conditioner service machnes
9. Spot welding machine /CO2 protection welding machine
10. Auto parts cleaners series
11. Other equiments
II. ENGINE REBUILDING MACHINES
1. Brake lathe or brake drum/disc cutting machines
2. Valve seats boring machine
3. Cylinder block grinding & milling machine
4. Cylinder fine boring machines
5. Cylinder line boring machines
6. Cylinder body bush boring machine
7. Vertical cylinder honing machine
8. Con-rod boring and grinding machine
9. Crankshaft grinding machines
10. Flywheel & Clutch Plate Grinding Machine
11. Valve grinding machines
12. Brake shoe riveting machines
III. OTHER MACHINES
1. Hydraulic press brake
2. Shearing machines
3. Lathe machines
Welcome to your inquiries, and we're expecting to work with you
