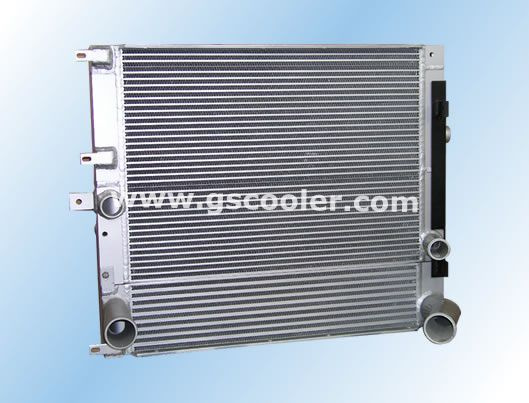

Combined Cooling Package for Engineer Machinery (C025)

Name: Combined Cooling Package for Engineer Machinery (C025)
Brand: ibuyautoparts.com
SKU: 726483325
Availability: InStock
Rating: 4.3 (70 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

P-Bar design for high volume OE Mobile Applications
Structure: Air cooled "plate and bar" design(P-Bar design)
Incorporates radiator, hydraulic oil and charge air coolers into one package
Material: Aluminum alloy
Application: Construction Machinery, such as excavator, roller, bulldozer, paver, pulverizer, etc

Features:
-Modules are pressure and leak tested, assembled and packaged
-prototypes and production products can be completed in a short lead time.
-production core geometries for radiators(water-air), oil coolers(oil-air), air coolers for engines(CAC). Air coolers for compressors(air-air), air-oil welded combos.
-P-Bar complete cooling packages can be equipped with fan, motor, finger guard, etc
Advantages:
-Superior performance
Aluminum, as up to 25% higher heat transfer capacity in comparison to traditional cooper/brass cooling material
-Rugged, Lightweight and compact
-Air-side fin design minimizes fouling and static pressure ensuring long-term reliable performance
-Welded aluminum fittings/ports and manifolds ensure structural integrity
-Standard prots-SAE, NPT AND BSPP ports available
-Customized units are available to meet your specific performance requirements.
If you have any interest, please contact with: www. gscooler. com

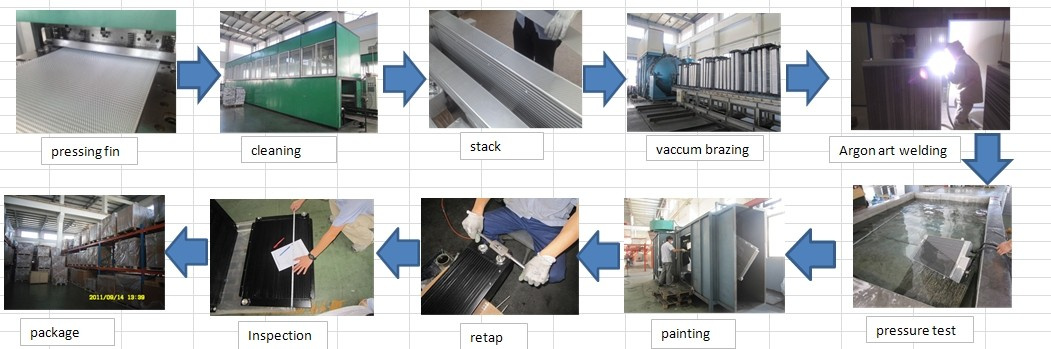

Manufacture process:

Ratings	Maximum operating pressure	Maximum operating temperature
Radiator	30psi	250°F
Charge air cooler	30psi	475°F
Oil cooler/transmission cooler	250psi	350°F

Prod Model:	C025
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Principle:	Mixing Heat Exchanger
Structure Material:	Metal Material
Application:	Cooler
Heat Transfer Surface:	Plate Bar

GIN STONE (WUXI) HEAT EXCHANGER TECHNICAL Co., Ltd. is a special company which is engaged in the technology innovation and manufacture for "aluminium heat-exchanger". It is established by a group of special experts who have more than ten years' industry design and manufacture experiences...Gin Stone keeps researching and developing the new technology and products for customers' different demands. The products is widely applied in the field of construction machinery, compressor, A machinery, automobile, all kinds of vehicles, locomotives, hydraulic oil and lubricating oil systems and so on.

Now more than 90% Gin Stone coolers are exported to all over the world, such as UK, France, Germany, Italy, USA, Canada, Japan, Korea, New Zealand, etc. And the quality and the special service is got the highly praise from all the customers.

Gin Stone, will give you the best cooling solution in heat exchange field
