Gin Stone (Wuxi) Heat Exchanger Technology Co., Ltd. >> Universal Turbo Front Mount Racing Aluminum Intercooler

Universal Turbo Front Mount Racing Aluminum Intercooler

Universal Turbo Front Mount Racing Aluminum Intercooler
Price: US $ 50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T

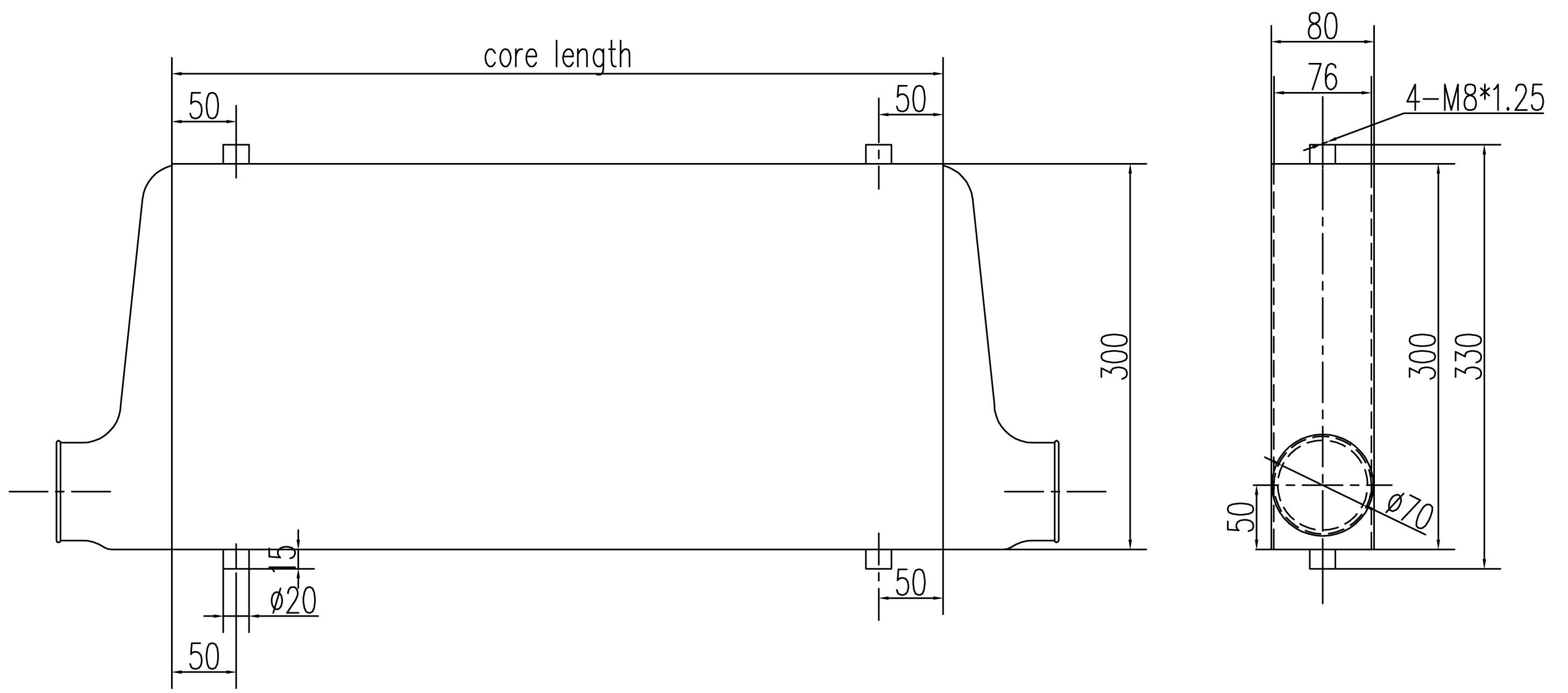

  GS12:



 GS12/30  GS12  GS30
Length  31"(780mm)  25" (630mm)
Length(core)   24"(600mm)   18" (450mm)
Height  12"(300mm)  12"(300mm)
Thickness   3" (76mm)  3" (76mm)
 Inlet  2.75"  2.75"
 Outlet  2.75"  2.75"
 Air flow rate  <700Cubic Feet/Min, Rated to 600-800 Max HP  <350Cubic Feet/Min, Rated up to 500 Max HP
 working pressure  5~50PSI  5-50PSI
 pressure drop  1~4psi@35psi; 0.2~0.5psi@15psi  2~5psi@cars35psi; 0.2~0.5psi@15psi
 Hot air temp  32°F~302°F (0°C~150°C)  32°F~302°F (0°C~150°C)
 Material  100% Aluminum  100% Aluminum
 Design  P-bar  p-bar
 Construction  Machine Cut and Stamped, Hand Welded  Machine Cut and Stamped, Hand Welded
 Finsh  Polished  Polished
 Net weight  17 lbs  11ibs
 work for  racing cars  cars

Prod Model: GS12
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Work Pressure: 5-50psi
Certification: TS16949
Cold Style: Air-cooled
Body Material: Aluminium
Component: Radiator
Structure: Plate Bar
GIN STONE (WUXI) HEAT EXCHANGER TECHNICAL Co., Ltd. is a special company which is engaged in the technology innovation and manufacture for "aluminium heat-exchanger". It is established by a group of special experts who have more than ten years' industry design and manufacture experiences...Gin Stone keeps researching and developing the new technology and products for customers' different demands. The products is widely applied in the field of construction machinery, compressor, A machinery, automobile, all kinds of vehicles, locomotives, hydraulic oil and lubricating oil systems and so on.

Now more than 90% Gin Stone coolers are exported to all over the world, such as UK, France, Germany, Italy, USA, Canada, Japan, Korea, New Zealand, etc. And the quality and the special service is got the highly praise from all the customers.

Gin Stone, will give you the best cooling solution in heat exchange field
