Name: Chinese Cheap Electric Winches
Brand: ibuyautoparts.com
SKU: 745563785
Availability: InStock
Rating: 5 (88 reviews)

Price:	US $ 160-175/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	20/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

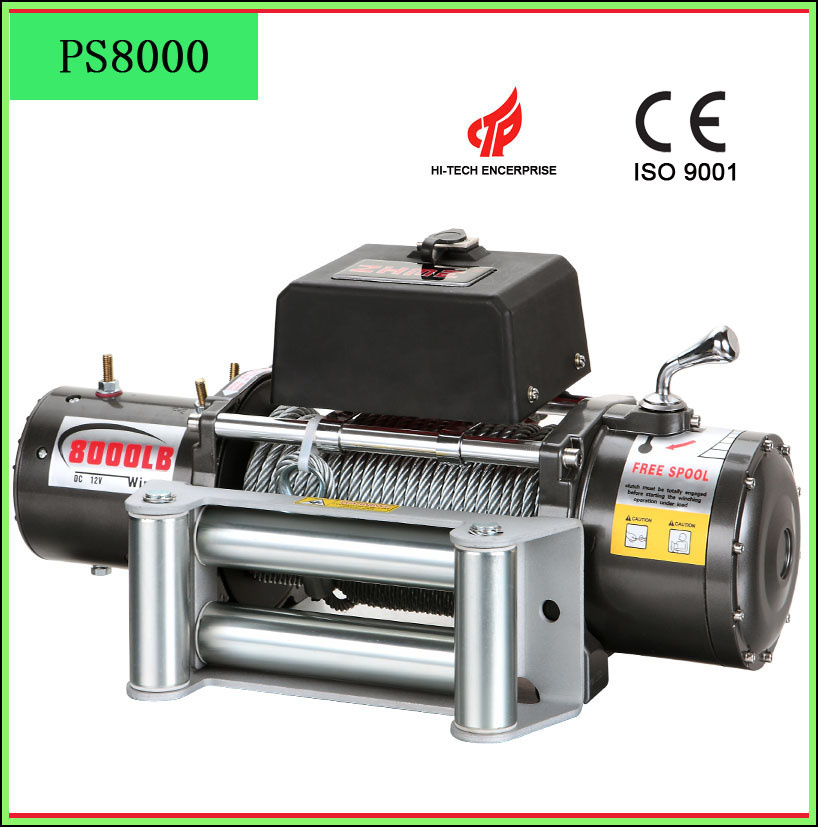

Chinese cheap winch with 12V DC 8000lbs

1. Series wound motor/high efficiency/long usage/more powerful/reliable/dust-resistant & mud-resistant

2. Advanced technology processing/high strength drum/keeps wire rope well
Specifications
Rated line pull: 8000 Lbs (3629kgs) single line.
Motor: Series wound 5.5 hp /4.1kw 12V DC 7.4 hp /5.4kw 24V DC
Gear Train: 3 stage planetary
Gear ratio: 218: 1
Clutch: Sliding Ring gear
Braking action: Automatic in the drum
Battery: Recommended 650 CCA minimum for winching
Battery: 25mm2, 72(1.83m)
Fairlead: 4-way Roller fairlead
Wire rope: 5/16"× 92'( 7.8mm × 28m)
Drum size: 2.5"× 8.9"( 63.5mm× 224mm)
Dimensions: 21.5"× 6.3"× 8.6"( 546mm× 160mm× 218mm)
Mounting bolt pattern: 10"× 4.5"(254mm× 114.3mm)
N. W: 36 kg (80Lbs)

Line pull	Lbs	0	2000	4000	6000	8000
Line pull	Kgs	0	907	1814	2722	3629
Line speed	FPM	25.6	16	11.9	9.79	8.01
Line speed	MPM	7.8	4.88	3.63	2.98	2.44
Motor current	Amps	80	130	180	230	290

Line pull and cable capacity

Layer of cable		1	2	3	4
Rated line pull per layer	Lbs	8000	6640	5600	4800
Rated line pull per layer	Kgs	3629	3012	2540	2177
Cable capacity per layer	Ft.	19.6	43	72	92
Cable capacity per layer	M	6.0	13.2	22	28

Prod Model:	ps 8000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Line Pull:	8000lbs
Type:	Electric Winch
Power Type:	Series Motor DC
Pull Direction:	Forward
Certification:	RoHS
Working Voltage Of Electric Winch:	Low Voltage
Brand:	Zhme
Applicable Environment:	Snow,Swamp,Desert,Mud

Ningbo Zhonghuang Machine & Electrics Co., Ltd (ZHME) is a specialized winch manufacturer situated in Ningbo, Zhejiang province, China, ZHME has 17 years experience in electric winches, our manufacturing plant has state-of-the-art assembly lines, together with in-house precision die-casting, CNC machining, heat treatment, polishing, high-pressure cleaning and finishing facilities. We also have advanced and fully-automated electric motor and winch testing facilities.

Established in 1995, ZHME has become a highly progressive and intensive R&D programmed into winch design, using the latest technology, to improve the performance and efficiency of products. We currently own patents on our many improved winch design features and strive to maintain our unsurpassed build-quality and outstanding value. ZHME has awards NINGBO high-technology enterprise since 2009

Today, ZHME has a comprehensive range of winch products and is developing more, Our philosophy is simple, To stay ahead in our business by being totally professional, but have fun doing it by remaining young in our hearts and minds.
