Electric Winch E 9500
Rated line pull: 9500lbs (4310 kgs) Single line.
Motor: Seires Wound 6.0 HP/4.4 kw, 12V DC.
Gear Train: 3 Stage Planetary
Gear Ratio: 212: 1
Clutch Sliding Ring Gear
Braking action: Automatic in the drum
Fairlead: 4-way Roller Fairlead
Rope: Wire rope 8.2mmX28m
Drum size: 2.5"X 9.0" ( 63mm X 224mm)
Dimensions: 23"X6.7"X8.4"(552mm X 170mm X 214mm)
Mounting bolt pattern: 10" X 4.5" ( 254mm X 114.3mm)
Battery: Recommended 650 CCA minimum for winching 25 Square mm, 72" ( 1.83m)
N. W: 86 lbs (39 kg)
Packing: 620mm X 200mm X 390mm / Carton
One 20 feet container covers 400 cartons, If need, Use pallets.
Drum Diameter and Line Speed for ZHME Electric Winches
Along with the gear ratio, the drum diameter of your electric winch has a direct effect on line speed and pulling power. As more layers of cable pile up on the drum, the pulling power from your winch decreases and the line speed of the cable drops.
The rated line pull per layer drops up to 20 percent for the first layer of cable on top of the base layer and then 10 percent or more for layers after that.Typical Rated Line Pull Per Layer
Example: 8000 lb. Winch| Layer of Cable | 1st layer | 2nd layer | 3rd layer | 4th layer |
| Rated line pull per layer | 8000 lbs. | 6540 lbs. | 5550 lbs. | 4750 lbs. |
The smaller the diameter of the drum, the faster the layers pile up and the faster your pulling power drops. On the other hand, a larger diameter drum means that the size of the winch housing has to increase in order to make room for the cable wrapped around the drum. For vehicles with tight mounting spaces, this can be a problem.
Same thing goes for drum length. The shorter the winch drum, the faster the pulling power will drop. Yet the longer the winch drum, the bigger the winch housing needs to be.
The drum diameter and length of electric winches are designed to provide the best combination of optimal line speed and compact housing dimensions.

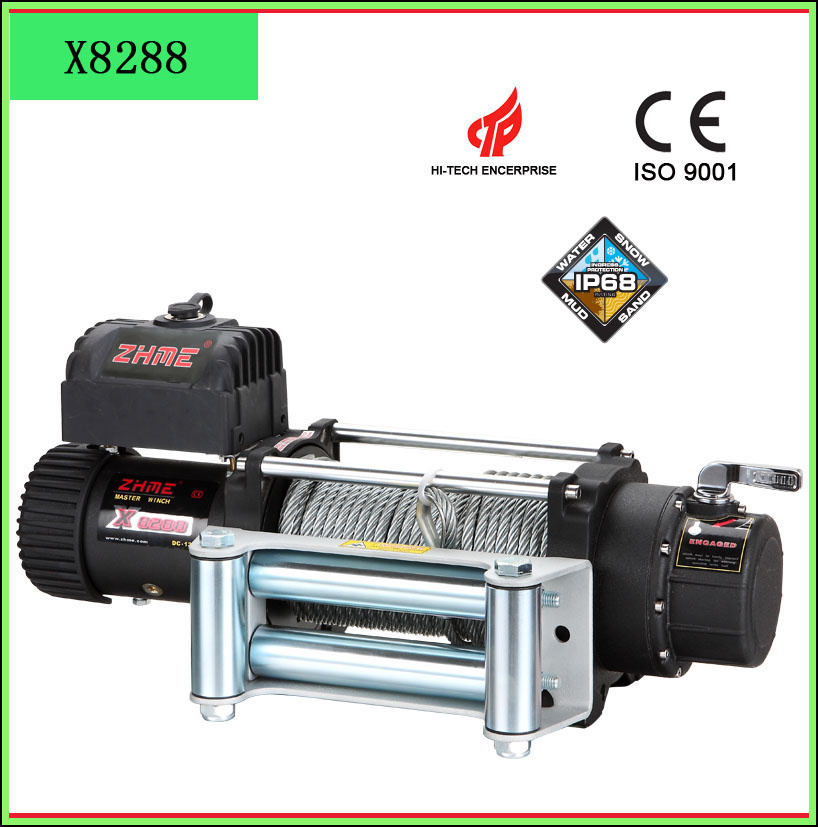

For Our electric winches X 8288 , the gear ratio138:1 and bigger drum 3 inch Diameter , the spee is very fast on no load . on the other hand , it can not pull heavy duty load . it is perfect on 8000lbs load ,suitable for most Jeeps ..| Line pull | Lbs | 0 | 2000 | 4000 | 6000 | 8000 |
|
| Kgs | 0 | 907 | 1814 | 2722 | 3629 |
|
| Line speed | FPM | 65 | 19.7 | 14.1 | 12.5 | 11.2 |
|
| MPM | 19.8 | 6.0 | 4.3 | 3.8 | 3.4 |
|
| Motor current | Amps | 80 | 160 | 220 | 280 | 350 |
|
Line pull and cable capacity
| Layer of cable | 1 | 2 | 3 | 4 |
| Rated line pull per layer | Lbs | 8000 | 6400 | 5300 | 4700 |
| Kgs | 3629 | 2903 | 2404 | 2132 |
| Cable capacity per layer | Ft. | 19.6 | 43 | 72 | 92 |
| M | 6.0 | 13.2 | 22 | 28 |
