Prod Model: |
17.5 19.5 22.5 24.5 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
22.5X8.25 |
Inset: |
145mm |
Outset: |
168mm |
P.C.D: |
285.75/335/275mm |
Cbd: |
220/221/281.2mm |
Holes: |
8/10 Alcoa |
Weight: |
24.65kg |
Certificate: |
ISO9001:2000, DOT, SABS, Ts16949-2009 |
Surface Treatment: |
Machined Finish; Polished Outside; Polished Inside |
Material: |
Aluminum |
Type: |
Rim |
Drive Wheel: |
4WD |
Wheel Hub Diameter: |
21-24" |
Finishing: |
Chrome |
Wheel Accessories: |
Wheel Cover |
Spoke Type: |
Equal Diameter Spoke |
Certification: |
DOT |
Wheel Hub Brand: |
Obt |
Product Description

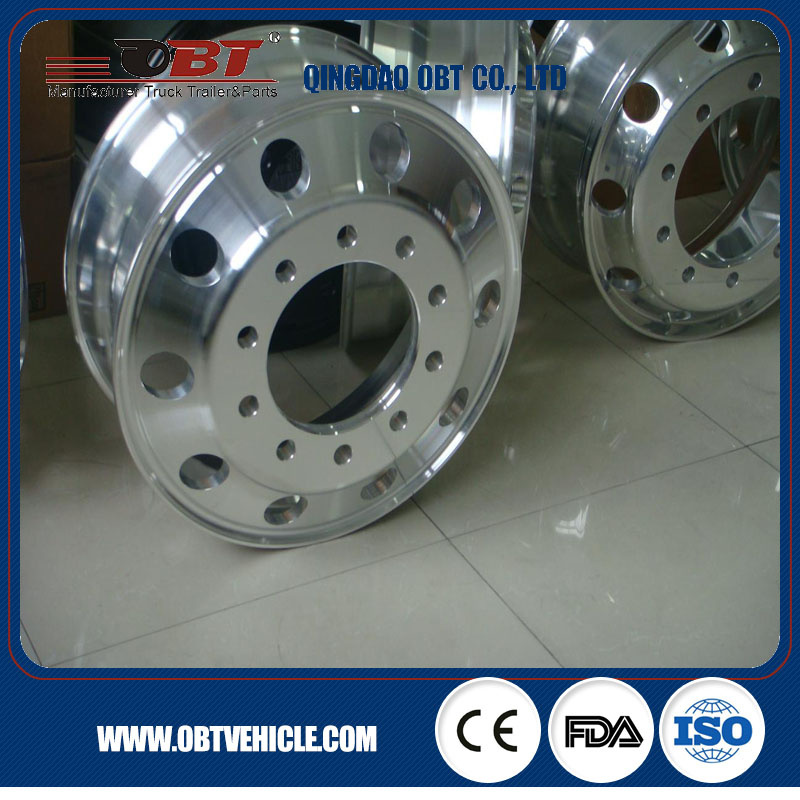

Truck aluminum wheel:
1. All the wheels are confirmed with TUV, DOT and are comply with TRA and ETRTO and JATMA.
2. We have product quality tracking and control system, which means we have records of the wheel from raw material to the final wheel. Every process of the production will be recorded. And every wheel will be endowed a special code to record all the informaton.
3. All the aluminum wheels have 3 years quality gurantte.
Truck aluminum wheel Specifications:
Wheel Size | Weight(kgs) | Max. load (kgs) | Inset (mm) | Outset(mm) | Disc thickness(mm) | Stud Diameter(mm) | P.C.D | C.B. (mm) | Valve |
17.5*6.75 | 13.88 | 2500 | 120 | 141 | 21 | 26.75 | 245*6 | 202 | TR544C |
17.5*6.75 | 13.88 | 2500 | 120 | 141 | 21 | 26 | 245*6 | 202 | TR544C |
17.5*6.75 | 14.38 | 2500 | 120 | 141 | 21 | 26 | 225*6 | 176 | TR544C |
19.5*7.5 | 17.6 | 3000 | 134 | 156 | 22 | 24.5 | 275*8 | 221 | TR544C |
19.5*7.5 | 17.6 | 3000 | 134 | 156 | 22 | 26 | 285.75*10 | 220 | TR544C |
22.5*7.5 | 23.88 | 3197 | 138 | 160 | 22 | 32.5 | 335*10 | 281.2 | TR544C TR543C |
22.5*7.5 | 23.88 | 3197 | 138 | 160 | 22 | 26 | 335*10 | 281.2 |
22.5*7.5 | 24.3 | 3565 | 138 | 162 | 24 | 32.5 | 275*8 | 221 |
22.5*7.5 | 24.7 | 3565 | 138 | 162 | 24 | 24 | 275*8 | 221 |
22.5*8.25 | 23.8 | 3350 | 144.5 | 167.5 | 23 | 26.75 | 285.75*10 | 220 | TR544DT R543D |
22.5*8.25 | 22.16 | 3350 | 144.5 | 167.5 | 23 | 26.75 | 335*10 | 281.2 |
22.5*8.25 | 22.16 | 3350 | 144.5 | 167.5 | 23 | 26 | 335*10 | 281.2 |
22.5*8.25 | 23.8 | 3350 | 144.5 | 167.5 | 23 | 26 | 285.75 | 220 |
22.5*9.0 | 24.56 | 4125 | 152 | 177 | 25 | 32.5R22 | 335*10 | 281.2 | TR544DTR543D |
22.5*9.0 | 24.56 | 4125 | 152 | 177 | 25 | 32.5 | 335*10 | 281.2 |
|
22.5*9.0 | 24.56 | 4125 | 152 | 177 | 25 | 26.75 | 335*10 | 281.2 |
|
22.5*9.0 | 24.56 | 4125 | 152 | 177 | 25 | 26 | 335*10 | 221 |
|
24.5x8.25 | 28 | 3350 | 145 | 168 | 23 | 32.5 | 335*10 | 281.2 | TR544D TR543D |
24.5x8.25 | 28 | 3350 | 145 | 168 | 23 | 26.75 | 285.75*10 | 220 |
24.5x8.25 | 28 | 3350 | 145 | 168 | 23 | 32.5R22 | 285.75*10 | 221 |
Packaging and shipping:
All the aluninum wheels are packed in seaworthy carton, to reduce the damage wihle shippment. OBT make sure to to pay attention to each details for your satisfication.
Company information:
OBT, founded in 1997 located in Qingdao, China, is an international, cross-industry, diversified group company. In 2007,we merged the company CSRS for axle and suspension ,built our trailer company B&C in Australia in 2010, we build our tyre branch ZERMATT in 2013,special for tires, in order to expand our business areas ,we built our branch company SCG in Singapore in 2014,and also in 2014,we merged the Ocean Navy Logistics to perfect our transportation system. After 18 years of pioneering spirit, it has developed into an important vehicle and auto parts production base and export base.
OBT Group now has three independent Division---- Production Sector, Trade Sector and Singapore sub-sectors, involved in vehicle and trailer manufacturing, axle, suspension system, Tyre , rims, landing gear and fifth wheel etc. parts production and international trade fields.
With most-to-up technology and top designers from Singapore and Germany we successfully design and manufacture for Shell,BP,ExonMobil, Singapore Fire,Canada Fire, and Turkey moving company ,etc.
We accept any kind of technique cooperation including to offer full exclusive custom design manufacture and service
With the combination of modern equipment and advanced processing technology and perfect quality control system, we always adhere to the principle of "Top quality, reasonable price and good after service".
Our service:
1. To make sure clients have a first knowing for our quality, sample testing of 1pcs is accepted. (pls tell us in advance, to keep stock for you)
2. We have professional sales and after sales team, could help to solve your problem and offer you a timely and professionalsolution for each of your question.
3.OBT have annual output of 1000000 sets wheels in 2013, and have a big supplying ability, and have warehouse of 1000, SQM, and a professional vehicles fleet. To make sure you timely delivery.
