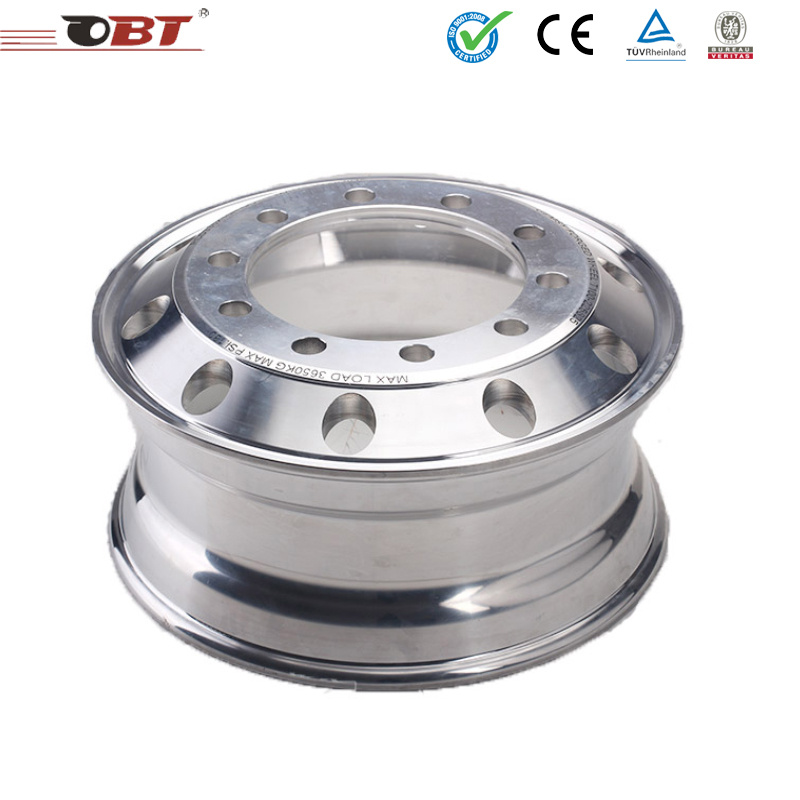

Obt Advanced Truck Trailer Aluminum Rim Wheel 22.5
| Price: |
US $ 100/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
OBT® |
| Product Name: |
Obt Advanced Truck Trailer Aluminum Rim Wheel 22.5 |
| Size: |
22.5*7.5/22.5*8.25 |
| PCD(mm): |
32.5/26.75/26/32.5r22 |
| Inset(mm): |
138/144 |
| Outset(mm): |
162/168 |
| Holes: |
8/10 |
| OEM No.: |
Optional |
| P.C.D(mm): |
335/285.75/285/275 |
| Cbd(mm): |
281.2/220.1/221/220 |
| Brand: |
Obt® |
| Material: |
Aluminum |
| Type: |
Rim |
| Drive Wheel: |
4WD |
| Wheel Accessories: |
Wheel Spoke |
| Certification: |
DOT |
| Wheel Hub Diameter: |
22.5 |
| Finishing: |
Optional |
| Spoke Type: |
Optional |
| Wheel Hub Brand: |
Obt |
Product Description
Obt Advanced Truck Trailer Aluminum Rim Wheel 22.5Production Features:
1. Have lighter weight, about 1/2 as much as steel wheels.
2. Fuel economy. Forged aluminum wheels are lighter in weight, have better accelerating performance and lower braking energy to save fuel.
3. Can reduce tire and brake drum wear with quicker heat dissipation.
4. Can reduce the maintenance cost of braking system. Quick heat dissipation can protect the braking system and other parts.
5. Higher loading capacity. Compared with steel wheels, forging aluminum wheels have higher loading capacity five times than that of the steel wheels.
6. Can expand the engine longevity by reducing engine load.
7. Have better performance resistance. When under the same impact of external force, forged aluminum wheels suffer far less damage than steel wheels.
Forged Aluminum wheels is suitable for :heavy-duty truck, medium truck, light truck, trailer, dangerous goods vehicle, tank vehicles, low bed vehicles, military and police vehicles, armored vehicles, engineering vehicles, container vehicles, fire vehicles, trailers, special purpose vehicles, long-distance bus, minibus, school bus, and large passenger cars, saloon cars and so on.
Forged aluminum wheels surface treatment: machined finish, outside polished, inside polished, double polished, chrome-plating.
Specification: | Size | OBT Part No. | Inset(mm) | Outset(mm) | P.C.D.(mm) | Holes | PCD(mm) | CBD(mm) |
| 22.5*7.5 | OBT22575001 | 138 | 162 | 335 | 10 | 32.5 | 281.2 |
| | OBT22575002 | 138 | 162 | 285.75 | 10 | 26.75 | 220.1 |
| | OBT22575003 | 138 | 162 | 335 | 10 | 26 | 281.2 |
| | OBT22575004 | 138 | 162 | 285 | 8 | 32.5R22 | 221 |
| | OBT22575005 | 138 | 162 | 275 | 8 | 32.5 | 221 |
| | OBT22575006 | 138 | 162 | 275 | 8 | 24 | 221 |
| 22.5*8.25 | OBT22582501 | 144 | 168 | 285.75 | 10 | 26.75 | 220 |
| | OBT22582503 | 144 | 168 | 335 | 10 | 32.5 | 281.2 |
| | OBT22582504 | 144 | 168 | 335 | 10 | 26.75 | 281.2 |
| | OBT22582505 | 144 | 168 | 335 | 10 | 26 | 281.2 |
| | OBT22582506 | 144 | 168 | 285.75 | 10 | 26 | 220 |
| | OBT22582507 | 144 | 168 | 285.75 | 10 | 26 | 221 |
| | OBT22582510 | 144 | 168 | 335 | 10 | 26 | 281.2 |
| | OBT22582511 | 144 | 168 | 285.75 | 10 | 26.75 | 220 |
| | OBT22582512 | 144 | 168 | 285.75 | 10 | 32.5 | 221 |
| | OBT22582513 | 144 | 168 | 285.75 | 10 | 26.75 | 221 |
| | OBT22582514 | 144 | 168 | 285.75 | 10 | 32.5R22 | 221 |
| | OBT22582515 | 144 | 168 | 285.75 | 10 | 26.75 | 220 |
| | OBT22582516 | 144 | 168 | 285.75 | 10 | 26 | 220 |
| | OBT22582517 | 144 | 168 | 275 | 8 | 32.5 | 221 |
| 22.5*9 | OBT22590001 | 152 | 177 | 335 | 10 | 26.75 | 281.2 |
| | OBT22590002 | 152 | 177 | 335 | 10 | 26 | 281.2 |
| | OBT22590004 | 152 | 177 | 285.75 | 10 | 26 | 221 |
| | OBT22590005 | 152 | 177 | 285.75 | 10 | 26 | 220 |
| | OBT22590007 | 152 | 177 | 335 | 10 | 32.5R22 | 281.2 |
| | OBT22590008 | 152 | 177 | 335 | 10 | 32.5 | 281.2 |
| | OBT22590010 | 152 | 177 | 335 | 10 | 26 | 281.2 |
| | OBT22590011 | 152 | 177 | 285.75 | 10 | 26.75 | 220 |
| | OBT22590012 | 152 | 177 | 285.75 | 10 | 32.5R22 | 221 |
| | OBT22590013 | 152 | 177 | 285.75 | 10 | 32.5 | 220 |
| | OBT22590014 | 152 | 179 | 285.75 | 10 | 26.75 | 220 |
| | OBT22590015 | 79 | 106 | 285.75 | 10 | 26.75 | 220 |
| 22.5*11.75 | OBT225117501 | 120 | 146 | 335 | 10 | 26.75 | 281.2 |
| | OBT225117502 | 120 | 146 | 335 | 10 | 26 | 281.2 |
| | OBT225117503 | 120 | 146 | 285.75 | 10 | 26 | 220 |
| | OBT225117504 | 120 | 146 | 285.75 | 10 | 26.75 | 220 |
| | OBT225117505 | 120 | 146 | 335 | 10 | 32.5 | 281.2 |
| | OBT225117506 | | 24 | 335 | 10 | 26.75 | 281.2 |
| | OBT225117507 | | 24 | 335 | 10 | 26 | 281.2 |
| | OBT225117508 | | 24 | 285.75 | 10 | 26.75 | 220 |
| | OBT225117509 | | | 285.75 | 10 | 26.75 | 220 |
| 22.5*14 | OBT24514001 | 22 | 53 | 335 | 10 | 26 | 281.2 |
| | OBT24514002 | 22 | 53 | 285.75 | 10 | 26 | 221 |

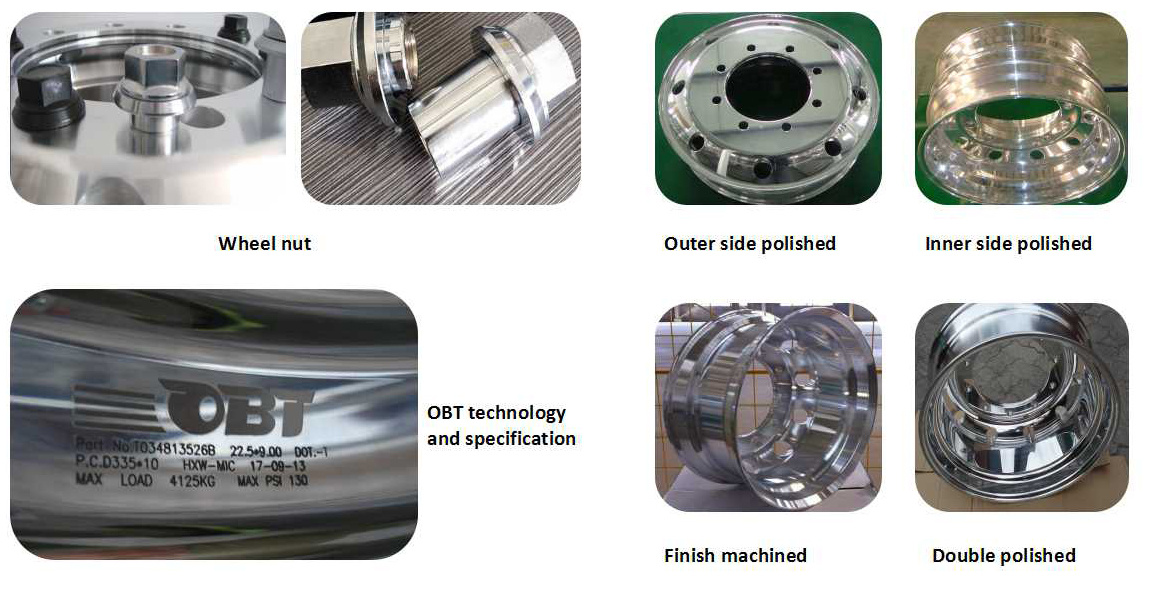

More details pic:

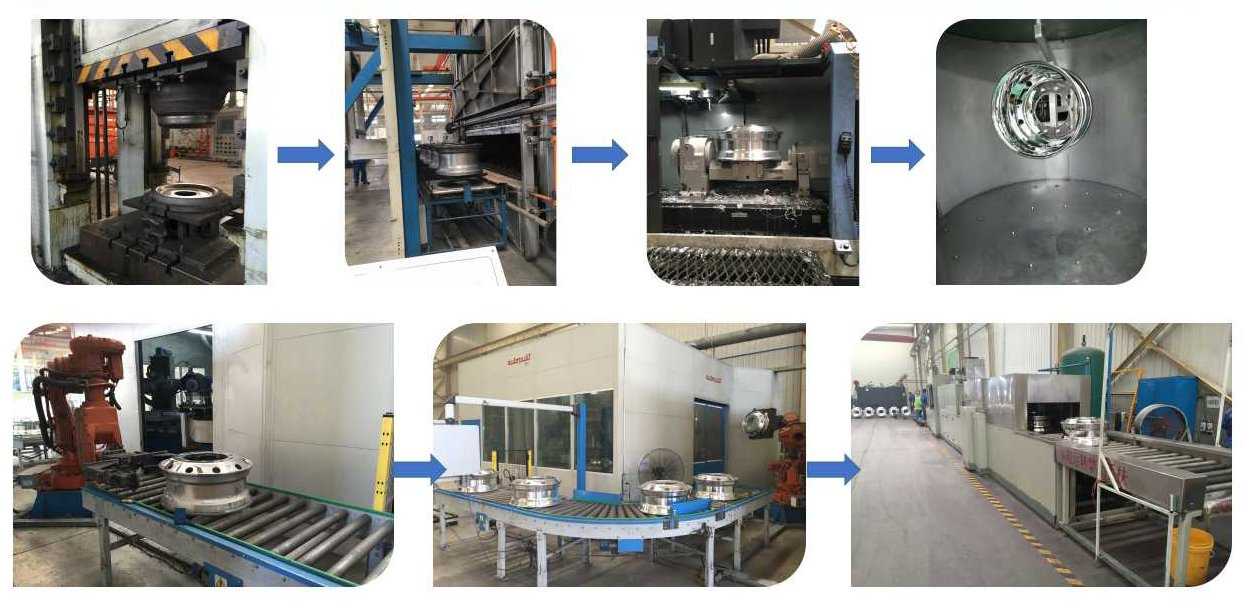

The production procedure:
Our packing way and customer visitation:
Please contact:
OBT, founded in 1997 located in Qingdao, China, is an international, cross-industry, diversified group company. In 2007, we merged the company CSRS for axle and suspension, built our trailer company B&C in Australia in 2010, we build our tyre branch ZERMATT in 2013, special for tires, in order to expand our business areas, we built our branch company SCG in Singapore in 2014, and also in 2014, we merged the Ocean Navy Logistics to perfect our transportation system. After 18 years of pioneering spirit, it has developed into an important vehicle and auto parts production base and export base.
OBT Group now has three independent Division---- Production Sector, Trade Sector and Singapore sub-sectors, involved in transportation, trailer and agriculture machine manufacturing, parts production and international trade fields.
With most-to-up technology and top designers from Singapore and Germany we successfully design and manufacture for Shell, BP, ExonMobil, Singapore Fire, Canada Fire, and Turkey moving company, etc.
We accept any kind of technique cooperation including to offer full exclusive custom design manufacture and service
With the combination of modern equipment and advanced processing technology and perfect quality control system, we always adhere to the principle of "Top quality, reasonable price and good after service"
