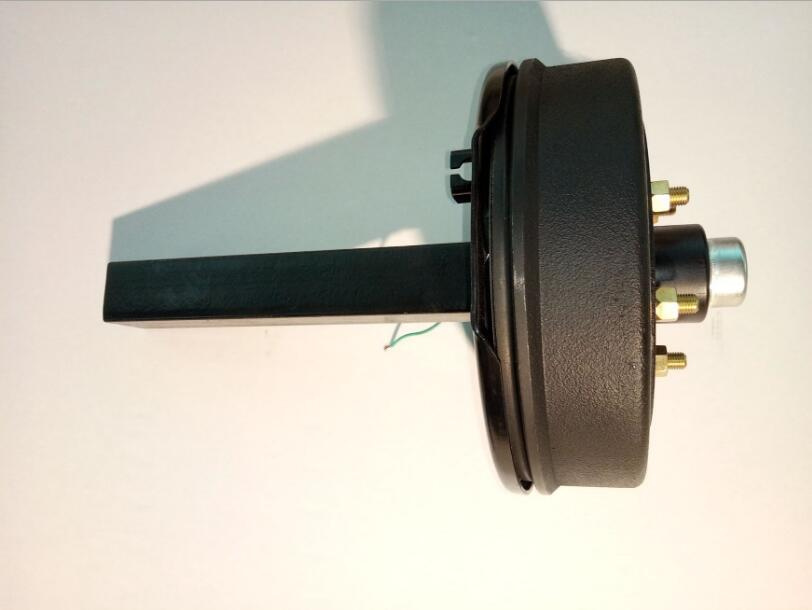

Name: 2000kg Trailer Rear Stub Axle with Electric Brake
Brand: ibuyautoparts.com
SKU: 830691585
Availability: InStock
Rating: 4.8 (79 reviews)

Price:	US $ 45/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Offering light and heavy axle for kinds of trailer
HUB material QT450
PCD (4.5",5.5",6")
Beam:Seamless steel beam for round or square
Beam material:1045#,Q345B
Bolts:M14x1.5 and M12x1.5 available
Black powder coating

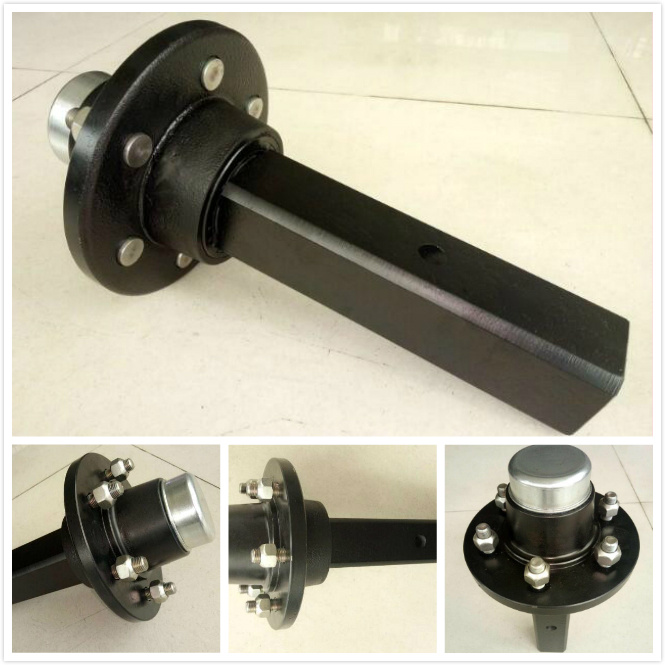

Technical parameters of stub axle

Name	Beam	CBD	PCD	Studs Nos	Stud Size	Bearing(out)	Bearing(in)	Max Load Capacity Single Axle( 25km/h)
1	40*40	84	100	4	M14*1.5	30205	30207	1500kg
2	40*40	93	114.3	5	M16*1.5	30205	30207	1500kg
3	50*50	93	139.7	5	M16*1.5	30205	30209	3000kg
4	50*50	93	114.3	5	M16*1.5	30206	30209	3000kg
5	50*50	160	139.7	6	M18*1.5	30206	30209	3000kg
6	50*50	160	139.7	6	M18*1.5	30206	30209	3000kg
7	60*60	160	152.4	6	M18*1.5	30207	30211	4800kg
8	70*70	160	205	6	M18*1.5	30209	30213	6500kg
9	80*80	160	205	6	M18*1.5	32211	30215	8000kg

Features:
1.Customize as your requirements

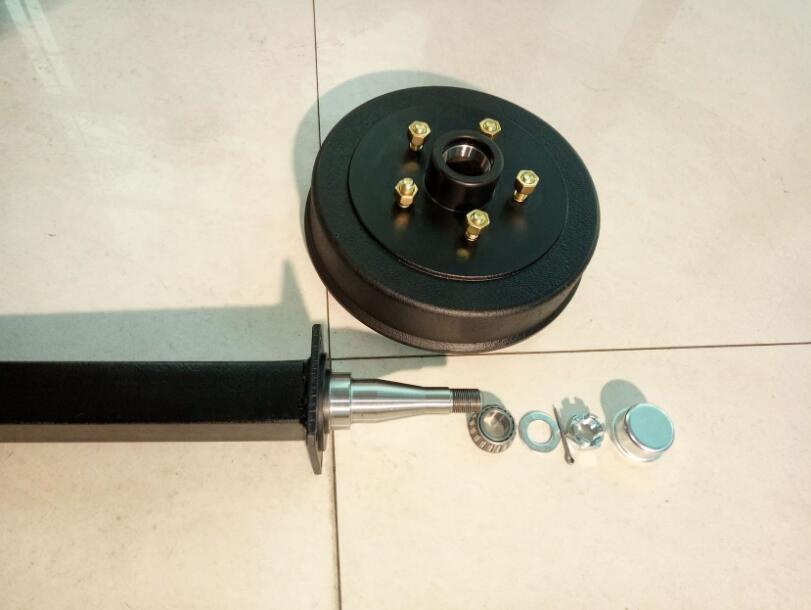

2.All size of hub available
3.Durable bearing and bolts kit

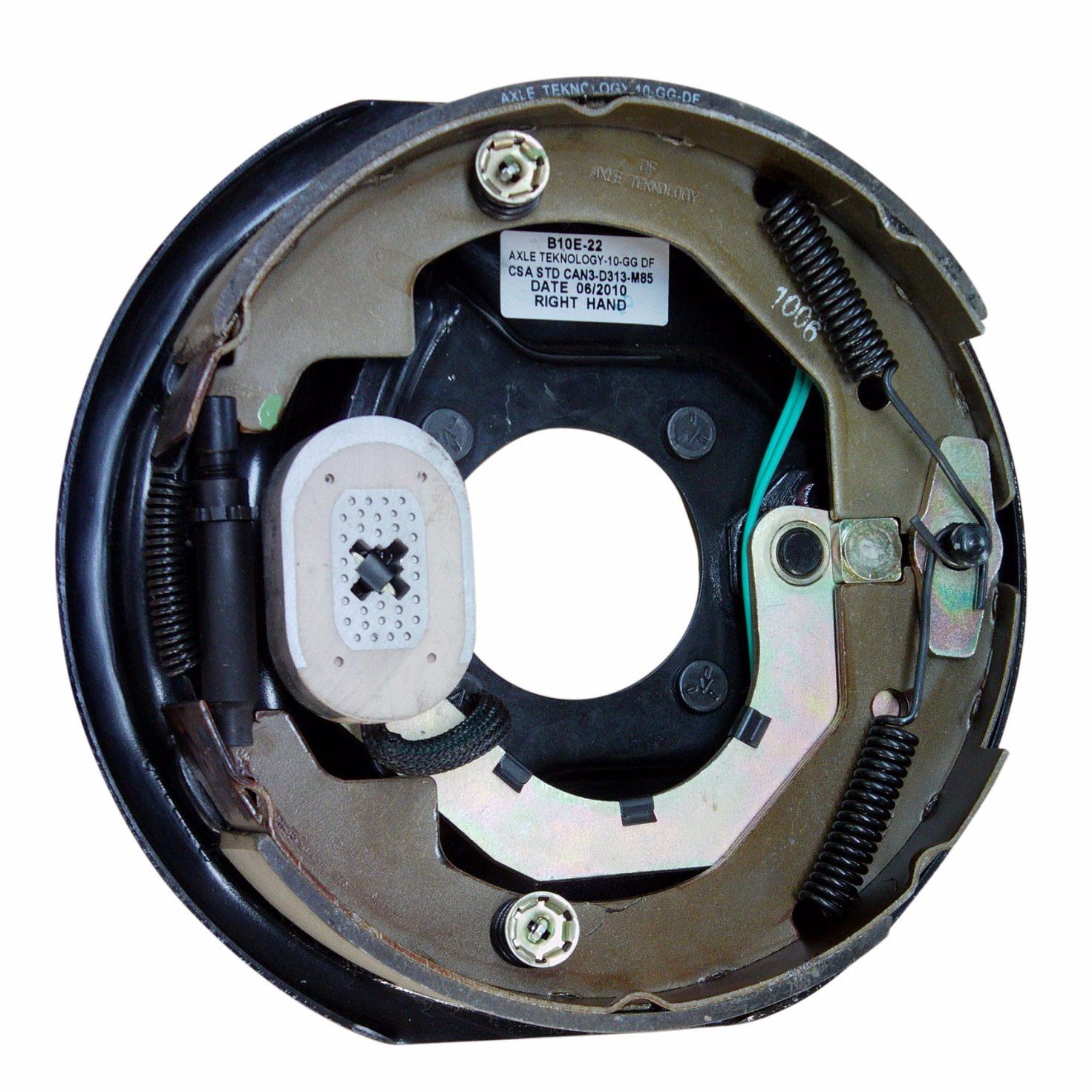

4.Without brake or electric brake(CSA brake system certificate)
5.Make CAD for your reference.
6.Modify the professional item based on your using

Our axle range:
Straight axle (suitable for farm,tool trailers)

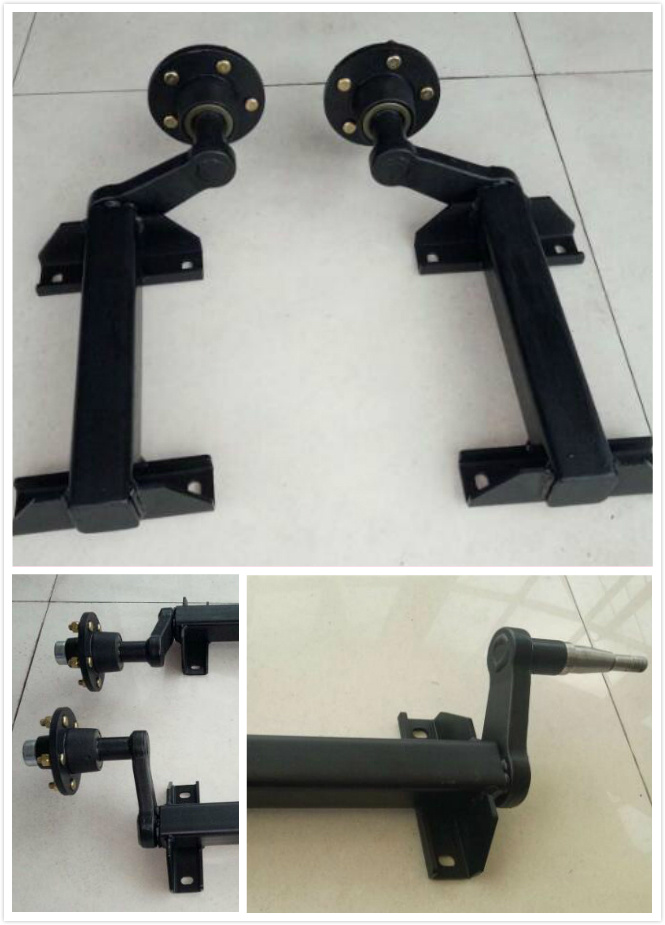

Torsion axle (suitable for caravan and generator trailer)

Welcome to your inquiry.

General manager:Kaka Wei
Mob:0086-15621101092
Add:20# Zhuzhou road,Laoshan district,Qingdao266100,CN.

Prod Model:	OBT2000
PCD:	4X100/5X114.3/6X139.7/6X152.4
Loading Capacity:	2000kg
Parts:	Hub, Bolts
Steel Beam:	Sqaure/Round
Color:	Black
Brake:	Without or Electric
Surface Treatment:	Galvanized Available
Others:	Make as Your Requirements

OBT, founded in 1997 located in Qingdao, China, is an international, cross-industry, diversified group company. In 2007, we merged the company CSRS for axle and suspension, built our trailer company B&C in Australia in 2010, we build our tyre branch ZERMATT in 2013, special for tires, in order to expand our business areas, we built our branch company SCG in Singapore in 2014, and also in 2014, we merged the Ocean Navy Logistics to perfect our transportation system. After 18 years of pioneering spirit, it has developed into an important vehicle and auto parts production base and export base.

OBT Group now has three independent Division---- Production Sector, Trade Sector and Singapore sub-sectors, involved in transportation, trailer and agriculture machine manufacturing, parts production and international trade fields.

With most-to-up technology and top designers from Singapore and Germany we successfully design and manufacture for Shell, BP, ExonMobil, Singapore Fire, Canada Fire, and Turkey moving company, etc.

We accept any kind of technique cooperation including to offer full exclusive custom design manufacture and service

With the combination of modern equipment and advanced processing technology and perfect quality control system, we always adhere to the principle of "Top quality, reasonable price and good after service"
