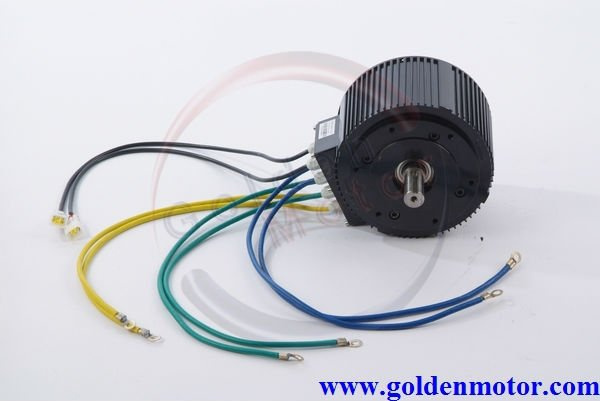

CE10 Kw 72V Brushless Motor /Electric Car Kit/Gear Gridge/Brushless Controller
| Price: |
US $ 1080-1619/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
CE 10 Kw 72V Brushless Motor /Electric Car Kit/Gear Gridge/Brushless Controller
Electric/Hybrid Car Drive KitsHere is the BLDC motor conversion model
Here is the car conversion kit details :1.3KW/5KW/10KW/20KW BLDC motor
| BLDC motor conversion kit |
| Item | Description |
BLDC Motor
(HPM10KL) Liquid Cooling | Model: BLDC-108
1. Voltages: 48Vdc
2. Rated power: 1.5KW
3. Peak power: 3.0KW
4. Speed: 3200-5000rpm
5. Rated torque: 4 Nm
6. Peak torque: 8 Nm
7. Efficiency: >85%
8. Dimensions: 11x10cm

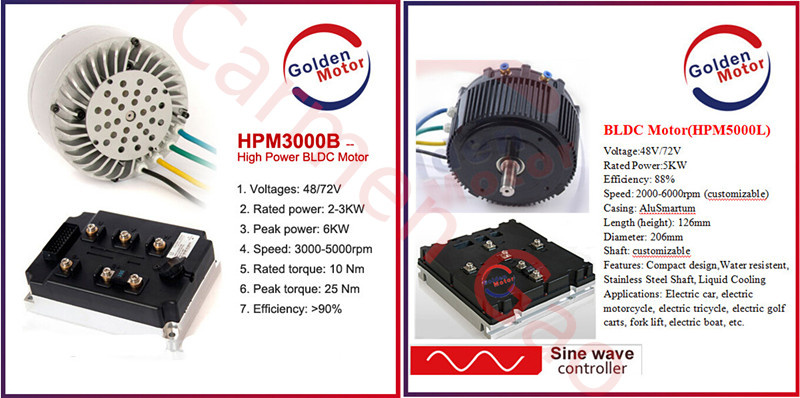

9. Weight: 3.9kgs | Model: HPM3000B -- High Power BLDC Motor
1. Voltages: 48/72V
2. Rated power: 2-3KW
3. Peak power: 6KW
4. Speed: 3000-5000rpm
5. Rated torque: 10 Nm
6. Peak torque: 25 Nm
7. Efficiency: >90%
8. Dimensions: 18cm dia. 12.5cm height
9. Weight: 8kgs
10. Cooling: air or liquid cooling | Model: HPM5000B -- High Power BLDC Motor
Voltage:48V/72V/96V/120V
Rated Power:3KW-7.5KW
Efficeincy: 91%
Phase Resistance (Milliohm): 6.2/48V; 12.0/72V; 36.0/120V
Phase Induction(100KHZ): 68uH/48V; 154uH/72V; 504uH/120v Speed: 2000-6000rpm (customizable)
Weight:11Kgs Casing: Aluminium
Length (height): 126mm Diameter: 206mm
Keyway size: 5mm(W) x 43mm(L) x 19mm(D:22.3mm)
Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan
Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc.

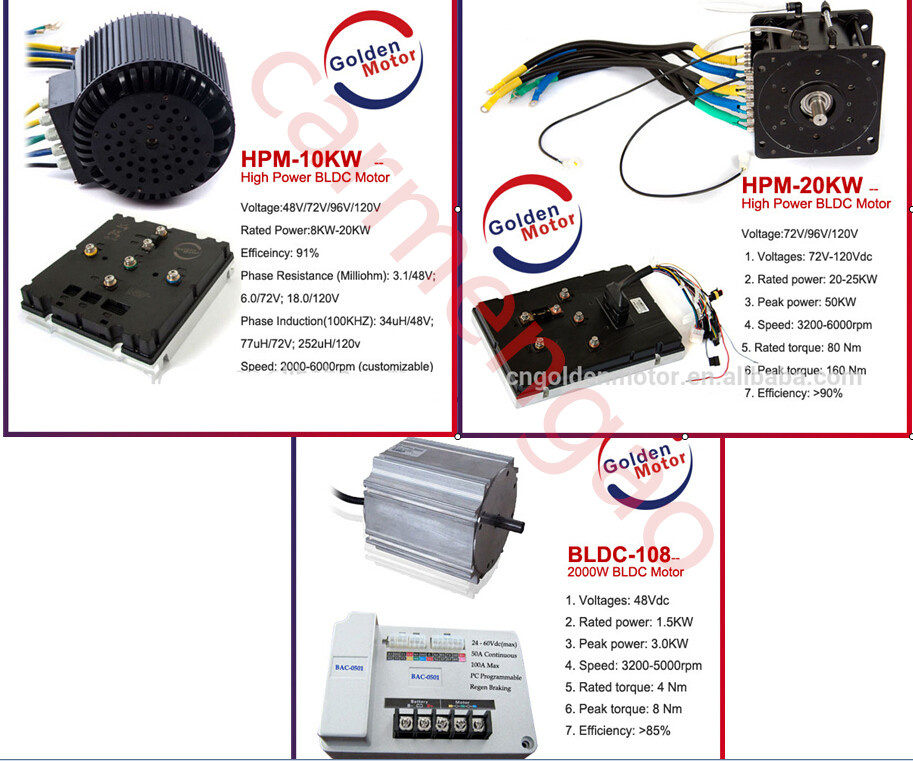

. | Model: HPM-10KW -- High Power BLDC Motor
Voltage:48V/72V/96V/120V
Rated Power:8KW-20KW
Efficeincy: 91%
Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V
Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120v
Speed: 2000-6000rpm (customizable)
Weight:17Kgs Casing: Aluminium
Length (height): 170mm Diameter: 206mm
Keyway size: 6.4mm(W) x 45mm(L) x 21.7mm(D:25.4mm) | Model: HPM-20KW -- High Power BLDC Motor
Voltage:72V/96V/120V
1. Voltages: 72V-120Vdc
2. Rated power: 20-25KW
3. Peak power: 50KW
4. Speed: 3200-6000rpm
5. Rated torque: 80 Nm
6. Peak torque: 160 Nm
7. Efficiency: >90%
8. Dimensions: 30x30x25cm
9. Weight: 39kgs
10: Cooling: liquid cooling |
BLDC Controller
| Model: BLDC-108
1. Voltages: 48Vdc
2. Rated power: 1.5KW
3. Peak power: 3.0KW
4. Speed: 3200-5000rpm
5. Rated torque: 4 Nm
6. Peak torque: 8 Nm
7. Efficiency: >85%
8. Dimensions: 11x10cm
9. Weight: 3.9kgs | Model: VEC200
Voltage:48V/72V/96V
Rated continuous current:80A
Maximum phase current: 200A
Motor control mode:FOC
Driving method:Direct torque control
Dimensions: 170mm(L) x 120mm(W) x 50mm(H)
Weight:1.9kg | Model: VEC300
Voltage:48V/72V/96V
Rated DC BUS current:30A~200A
Rated output power:1000~10000W
Motor control mode:FOC
Quiescent operation
current:20~40mA
Speed limit:Controlled by motor and configuration
Driving method:Direct torque control
Keyway size: 190mm(L) x 180mm(W) x 50mm(H)
Weight:2.5kg) | Model: VEC500
Voltage:48V/72V/96V
Rated DC BUS current:30A~200A
Rated output power:1000~10000W
Motor control mode:FOC
Quiescent operation
current:20~40mA
Speed limit:Controlled by motor and configuration
Driving method:Direct torque control
Keyway size: 190mm(L) x 180mm(W) x 50mm(H)
Weight:2.5kg) | Model: HPM-20KW -- High Power BLDC Motor
Voltage:72V/96V/120V
1. Voltages: 72V-120Vdc
2. Rated power: 20-25KW
3. Peak power: 50KW
4. Speed: 3200-6000rpm
5. Rated torque: 80 Nm
6. Peak torque: 160 Nm
7. Efficiency: >90%
8. Dimensions: 30x30x25cm
9. Weight: 39kgs
10: Cooling: liquid cooling |
| Program Kit | Model: PI-400 -- HPC Controller Programming Kit
Easy Installation for PC/laptop with Windows OS
Easy USB Port Connection
Setup Parameters without Power-on Controller
Monitor Motor Performance Dynamically |
| Prod Model: |
HPM10KL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: |
BLDC Liquid Cooling 72V 10 Kw Motor |
| Controller: |
72V500A Brushless Controller |
| Foot Throttle: |
Casted Alusmartum Foot Throttle |
| Programm Kit: |
Setup Parameters Without Power-on Controller |
| Gear Bridge: |
Optional |
| High Power Li-on Battery: |
Optional |
| Certification: |
CE |
