Ari Cooled 48V 5kw Electric Motorcycle Engine
| Price: |
US $ 295-446/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,D/P,Western Union,Paypal |
We are leading manufacturer of general purpose brushless dc (BLDC )motor with power range from 200W to 20KW and voltage from 24V to 120VDC .It has been widely used for many appliacations such as auto industry,Battery powered bikes,electric car,scooters.motorcycle.go carts, boat ,goftcarts etc. Product Features : -Excellent performance characteristics-High efficicency >90% -Rate Voltage 24V-120VDC -Rate Power 200W-20KW -Rate speed 2000-6000RPM -Cooling Options : fan cooled or water cooled -Temperature sensor installed : KTY84-130-Stepless speed control,dual direction

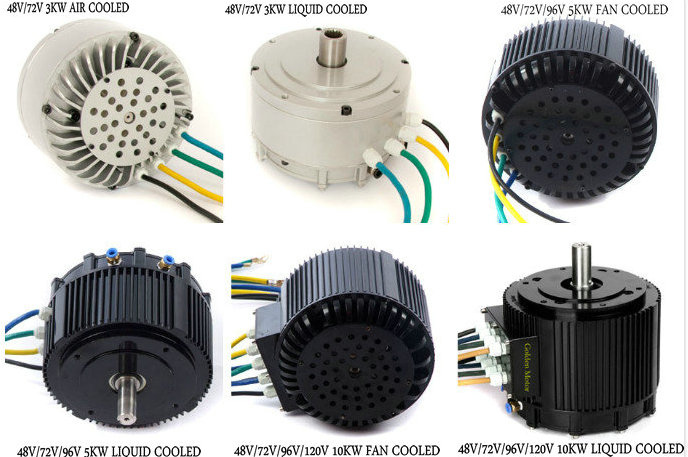

Golden Motor range as below :

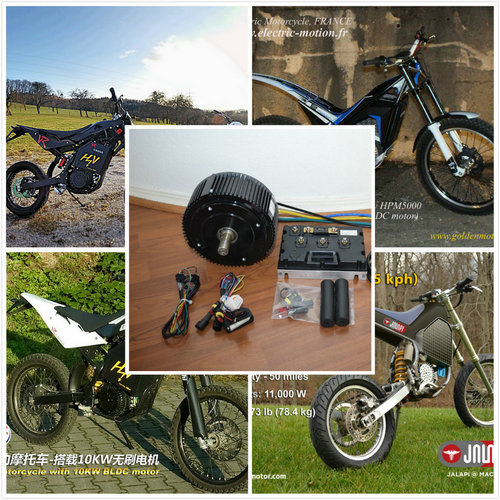

Motorcycle conversion case from clients
10KW BLDC MOTOR,48V/72V/96V FAN COOLED/WATER COOLED AVAILABLE
Voltage:48V/60V/72V
Rated Power:2KW-3KW
Peak Power: 6KW
Efficeincy: >90%
Speed: 3000-5000rpm
Rated torque: 10 N.m
Peak torque: 25 N.m
Dimension: 18cm dia. 12.5cm height
Weight: 8KG
Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan | Type: 48V3000W
Weight: 8kgs/unit Measurement:25cm*25cm*26cm/CTN |
|
|
Type: 72V3000W
Weight: 8kgs/unit Measurement:25cm*25cm*26cm/CTN |
|
|
Voltage:48V/60V/72V
Rated Power:2KW-3KW
Peak Power: 6KW
Efficeincy: >90%
Speed: 3000-5000rpm
Rated torque: 10 N.m
Peak torque: 25 N.m
Dimension: 18cm dia. 12.5cm height
Weight: 8KG
Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan | Type: 48V3000W
Weight: 8kgs/unit Measurement:25cm*25cm*26cm/CTN |
|
|
Type: 72V3000W
Weight: 8kgs/unit Measurement:25cm*25cm*26cm/CTN |
|
|

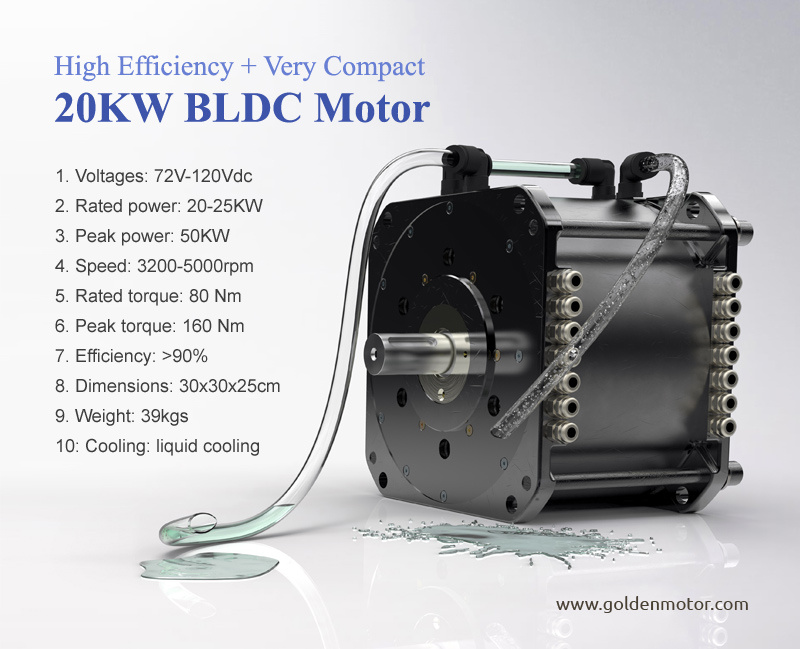

Voltage:72V-120VDC
Rated Power:20KW-25KW
Peak Power: 50KW
Efficeincy: >90%
Speed: 3200-5000rpm
Rated torque: 80 N.m
Peak torque: 160 N.m
Dimension: 30x30x25cm
Weight: 39KG
Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan | Type: 72V20KW
Weight: 39kgs/unit |
|
|
Type: 96V20KW
Weight: 39kgs/unit |
|
|
Voltage:24V/36V/48V/72V
Rated Power:3KW-7.5KW
Efficeincy: 88%
Speed: 2000-6000rpm (customizable)
Casing: AluSmartum
Length (height): 126mm
Diameter: 206mm
Shaft: customizable
Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan
Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc. | Type: 48V5000W
Weight: 11.6kgs/unit Measurement:25cm*25cm*26cm/CTN |
|
|
Type: 72V5000W
Weight: 11.6kgs/unit Measurement:25cm*25cm*26cm/CTN |
|
|
Voltage:24V/36V/48V/72V
Rated Power:3KW-7.5KW
Efficeincy: 88%
Speed: 2000-6000rpm (customizable)
Casing: AluSmartum
Length (height): 126mm
Diameter: 206mm
Shaft: customizable
Features: Compact design,Water resistent, Stainless Steel Shaft, Liquid Cooling
Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc. | Type: 48V5000W
Weight: 11.6kgs/unit Measurement:25cm*25cm*26cm/CTN |
|
|
Type: 72V5000W
Weight: 11.6kgs/unit Measurement:25cm*25cm*26cm/CTN |
|
|

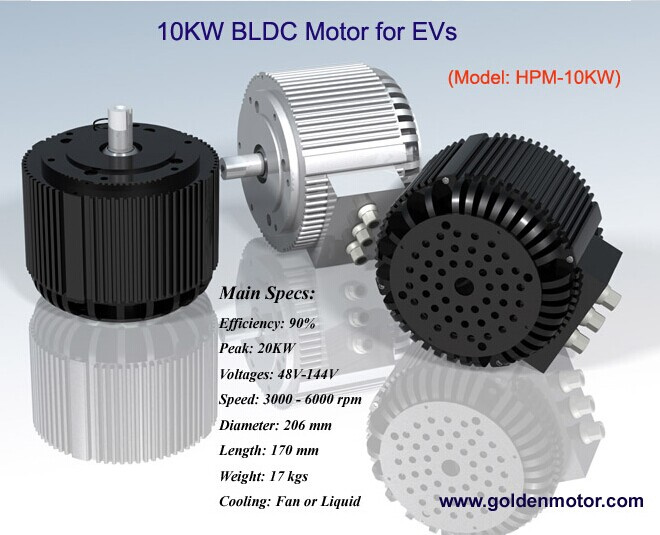

Model: HPM-10KW -- High Power BLDC Motor
Voltage:48V/72V/96V/120V
Rated Power:8KW-20KW
Efficeincy: 91%
Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V
Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120v
Speed: 2000-6000rpm (customizable)
Weight:17Kgs Casing: AluSmartum
Length (height): 170mm Diameter: 206mm | Type: 48V/10KW
Weight: 17kgs/unit |
|
|
Type: 72V/10KW
Weight: 17kgs/unit |
|
|
Model: HPM-10KW -- High Power BLDC Motor
Voltage:48V/72V/96V/120V
Rated Power:8KW-20KW
Efficeincy: 91%
Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V
Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120v
Speed: 2000-6000rpm (customizable)
Weight:17Kgs Casing: AluSmartum
Length (height): 170mm Diameter: 206mm | Type: 48V/10KW
Weight: 17kgs/unit |
|
|
Type: 72V/10KW
Weight: 17kgs/unit |
|
|
| Prod Model: |
HPM5000-48 |
| Voltage: |
48V, 72V, 96V |
| Type: |
Motorcycle Engine Assembly |
| Certification: |
Ce |
| Energy Transformation: |
Electric |
| Thermal Machine: |
Pm |
| Four Stroke Principle: |
Pm |
Golden Motor Technology Co Ltd is emerging as one stop shop for key components of personal electric vehicles(PEV), from electric bikes to electric cars. You can always find suitable solutions, parts for your EV applications from us.
With our strong R&D team, established dealer networks over 50 countries, we are confident to provide our valuable customers with top quality products and services at competitive cost.
Golden Motor is now well positioned as a solution provider of electric bikes, power wheelchairs, electric motorcycle and electric car driving system, matched controllers and accessories. By using current available materials and latest technology, our products provide high performance, feature rich and inexpensive solutions for personal electric transportation products and industrial applications.
GoldenMotor is the true leader in this personal electric transportaion industry
GoldenMotor offers a full range of products, including motors, controllers and battery packs. We also supply parts and accessories, as well as compatible replacement parts. Customers can buy complete electric bikes, power wheelchairs, highend battery packs, electric Motorcycle motors, electric Car motors, as well as their compatible controllers. With all this said, you need not look elsewhere trying to find a compatible part or accessory.
GoldenMotor is at TOP rankings over millions.
We have thousands of visitors a day, who browse our website for products. This is already a good marketing start for you and for us. GoldenMotor. COM is ranked at top positions over millions of other websites on Google for following product keywords:
Top Ranking Keywords:
hub motor
ebike motor
brushless motor
wheelchair motor
electric bike motor
bike conversion kit
brushless controller
electric scooter motor
eletric motorcycle motor
wheelchair conversion kit
brushless motor controller
electric wheelchair controller
brushless wheelchair controller
Our products are well accepted in China, North America and Europe markets. Over 80% of our products are exported to international markets. As a proof, there are huge number of electric shopping carts running in thousands of WalMart superstores across USA, are equiped with our patented hub motors with energy saving and feature rich functions.
You are cordially invited to join Golden Motor family to become our local dealer and promote polution free personal electric vehicles. This is a fast growing market worldwide, and you will benefit and enjoy from such partnership if you are ready.
Our team are thinking CREATIVE! Always!
Join Golden Motor's Global Dealers Network today!
Eletric vehicle business is profitable and rapid growth.
Let's work together as win-win partners!
