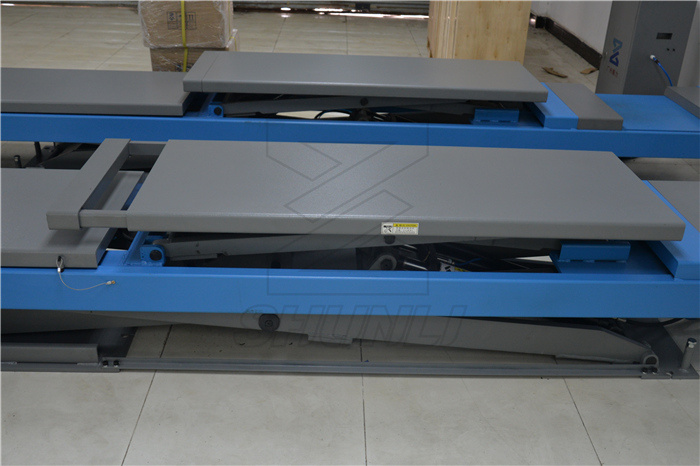

Ce Ultra-Thin Big Scissor Lift with 5000kg (SHL-Y-J-50CCBL)
Price: |
US $ 5499-5699/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
SHL-Y-J-50CCBL |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Motor: |
2.2kw |
Lifting Height (Main Machine): |
1810mm |
Main Lifting Capacity: |
5000kg |
Second Lifting Capacity: |
5000kg |
Certification: |
ISO |
Design: |
Scissor |
Brand: |
Shunli |
Lifting Capacity: |
5000kg |
Type: |
Eight Cylinder Hydraulic Lift |
Product Description
Product Specification 1. Double level scissor lift, 140mm above the ground at the lowest level.
2. 8 pieces of cylinders. Double hydraulic system, hydraulic and mechanical lock triple insurance device. Suitable for different height requirements;
3. CE approval.
4. Japanese oil sealing elements, Italian spherical valve, oil pipe explosion protective device, overload protection, international brand oil pipe.
5. Second-level extensible platform.
6. Suitable for 4 wheel Alignment's Ultrathin scissor lift.
7. Alloy solid steel X structure, best material to make sure rust resistance and not easy deformation
8. Optional Second-level Platform Extension,
9. Optional Infra-red Electronic leveling Sensor Technical parameter Model | SHL-Y-J-50CCBL |
Capacity of main lift | 5000kg |
Capacity of second lift | 5000kg |
Main lift lifting time | 40-60s |
Second lift lifting time | 10-30s |
Initial height | 140mm |
Main lift max.height | 1810mm |
Second lifting max. Height | 500mm |
Main lift platform length | 4500 or 5000mm |
Second lift platform length | 1580-1750mm |
Main lift platform width | 625mm |
Second lift platform width | 600mm |
Motor power | 3kw, 220V/380V, 50-60HZ |
Air pressure | 0.4-0.6Pma |

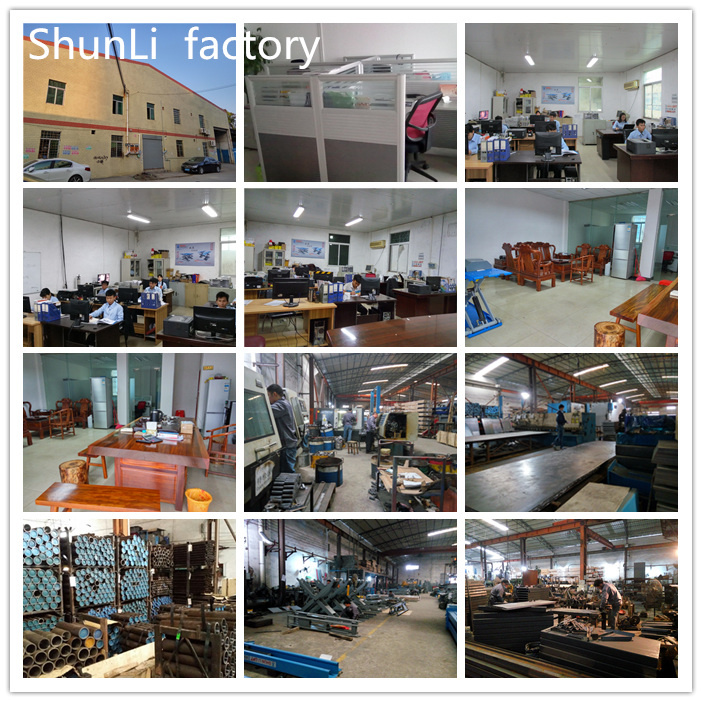

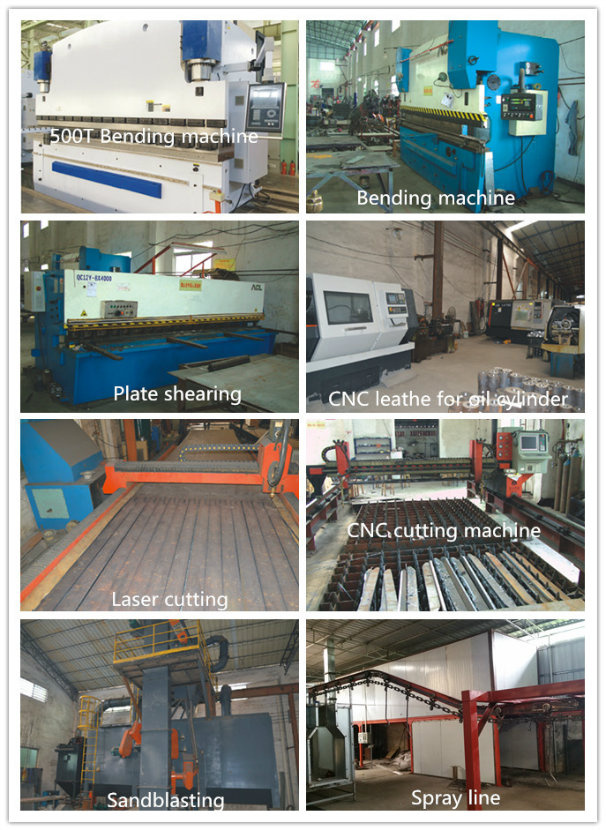

Our Factory's EquipmentOur PackageService Showing
Product advantage1. Easy control the lift table up &down by foot step
2. Can load the workpiece up and down, reducing working labor of worker.
3. Steady machine frame, durable and long life span
4. Almost o after-sales problem
5. The frame of this machine is welded by steel plate and Alloy solid steel with firm structure,
size accurate, machine the whole shape designs cultured beauty.
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
