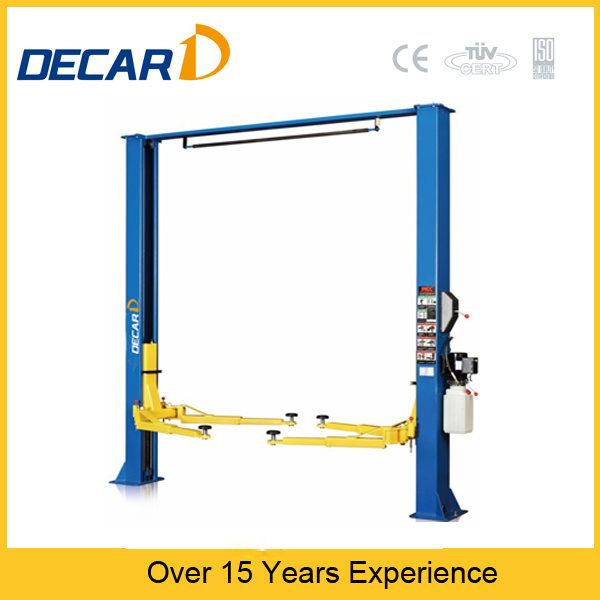

CE Certification Dk-240sc 2 Post Car Lift

Prod Model:	DK-240SC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lifting Capacity:	4T
Lifting Height(Mm):	1900mm
Overall Width(Mm):	2900*530*700mm
Warranty:	15 Months
Lift Height:	1900mm
Rise & Fall Times:	55s/40s
Type:	Double Cylinder Hydraulic Lift
Design:	Two Post
Certification:	ISO
Brand:	Decar

Product Description

1.Specification


Model	DK-235SC	DK-240SC
Capacity	3500kg	4000kg
Rise & fall times	≤50S	≤40S
Lift height	≥1900mm	≥1900mm
Power supply	380V/220V	380V/220V
Pump station power	2.2KW,50HZ	2.2KW,50HZ
Oil pressure	15-16MPa	16-18MPa


2. Main feature

a.Limit switch
b.Tray
c.Anti-hoisting limit switch on the top of the lift,can protect the safety of the vehicle effectively.
d.Unilateral unlocking device located on one side of the power unit, one-hand operation, safe and convenient.
e.Mn steel BL644 each section 4 * 4 chain
f.SS400 international standard 5mm open flat column.
g.Slide square tube adopts 5mm international standard.
h.International Q235 16mm
i.Solid 25mm toe board
j.6mm (inside and outside) tube thickness
k.Height from the ground  Min: 100/110/140mm Max: 1900mm
l.Q235 international 16mm board



Price Terms & Delivery Period


1.Payment Terms: 30% deposit, balance paid before shipment(T/T or L/C or Escrow). You can ask inspector to inspect the machine.

2.Delivery: 5 working days after order confirmed less than one container .

3.Packing: At first use PE film package which can protect this machine very well. Next use plywood box packaging outside, which is suitable for long-distance sea transportation and various types of weather conditions.

4.Guarantee: 15 months quality guarantee.



Service & Support
1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in professional.

3. Customizd design is avaliable.OEM&ODM are welcome.

4. Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers .

5. Special discount and protection of sales area provided to your distributor.

6. Provide different grades of products, to meet market requirements.

7. Purchase the machine from our company, the machine parts are provided within guaratnee period.
