Golden Motor Technology Co., Ltd. >> CE 5kw 48V Brushless Motorcycle Motor Kit

CE 5kw 48V Brushless Motorcycle Motor Kit

CE 5kw 48V Brushless Motorcycle Motor Kit
Price: US $ 700-1015/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal
E-Motorcycle Kit/Electric Motorcycle Conversion kit

Drive Your Motorbike up to 100mph

Convert your gasoline powered motorcycle, scooter into electric version easily!
Clean, Quiet, Efficient, Light Weight, Monstrous Powerful, and Affordable.
1.Conversion Model:

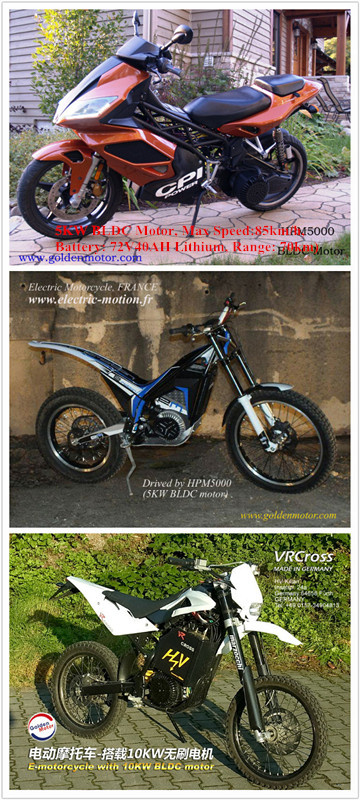

The conversion model: 5KW BLDC Motor, Max Speed: 85km/h, Battery: 72V40AH Lithium, Range: 70km

2.Here is the Picture of Kit Contents

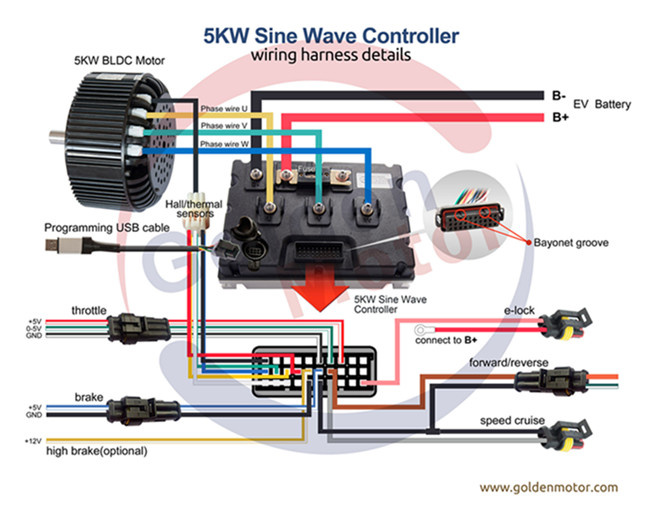

3...Wire Connection
4.Here is the Form of Kit Contents
NEW!! Most Powerful, Efficient and Reliable BLDC electric motorcycle   Motors 3KW/5KW/10KW/20KW Available!!
NEW!!
BLDC Motor
(HPM3000A)
Air cooling

Voltage:48V/60V/72V
Rated Power:2KW-3KW
Peak Power: 6KW
Efficeincy: >90%
Speed: 3000-5000rpm
Rated torque: 10 N.m
Peak torque: 25 N.m
Dimension: 18cm dia. 12.5cm height
Weight: 8KG
Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan
Type: 48V3000W
Weight: 8kgs/unit Measurement:25cm*25cm*26cm/CTN
Type: 72V3000W
Weight: 8kgs/unit
Measurement:25cm*25cm*26cm/CTN
NEW!!
BLDC Motor
(HPM3000L)
Liquid cooling

Voltage:48V/60V/72V
Rated Power:2KW-3KW
Peak Power: 6KW
Efficeincy: >90%
Speed: 3000-5000rpm
Rated torque: 10 N.m
Peak torque: 25 N.m
Dimension: 18cm dia. 12.5cm height
Weight: 8KG
Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan
Type: 48V3000W
Weight: 8kgs/unit Measurement:25cm*25cm*26cm/CTN
Type: 72V3000W
Weight: 8kgs/unit
Measurement:25cm*25cm*26cm/CTN
NEW!!
BLDC Motor
(HPM20KL)
-Liquid cooling

Voltage:72V-120VDC
Rated Power:20KW-25KW
Peak Power: 50KW
Efficeincy: >90%
Speed: 3200-5000rpm
Rated torque: 80 N.m
Peak torque: 160 N.m
Dimension: 30x30x25cm
Weight: 39KG
Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan
Type: 72V20KW
Weight: 39kgs/unit
Type: 96V20KW
Weight: 39kgs/unit



BLDC Motor
(HPM5000A)
Air Cooling

Voltage:24V/36V/48V/72V
Rated Power:3KW-7.5KW
Efficeincy: 88%
Speed: 2000-6000rpm (customizable)
Casing: AluSmartum
Length (height): 126mm
Diameter: 206mm
Shaft: customizable
Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan
Applications: Electric car, electric motorcycle, electric tricycle,
 electric golf carts, fork lift, electric boat, etc.
Type: 48V5000W
Weight: 11.6kgs/unit Measurement:25cm*25cm*26cm/CTN
Type: 72V5000W
Weight: 11.6kgs/unit
 Measurement:25cm*25cm*26cm/CTN

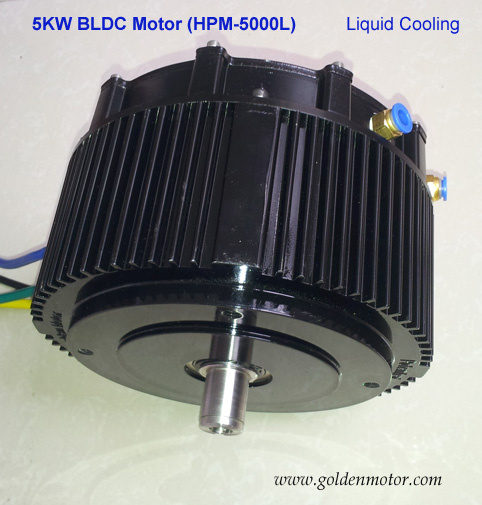

BLDC Motor
(HPM5000L)
Liquid cooling

Voltage:24V/36V/48V/72V
Rated Power:3KW-7.5KW
Efficeincy: 88%
Speed: 2000-6000rpm (customizable)
Casing: AluSmartum
Length (height): 126mm
Diameter: 206mm
Shaft: customizable
Features: Compact design,Water resistent, Stainless Steel Shaft, Liquid Cooling
Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc.
Type: 48V5000W
Weight: 11.6kgs/unit
 Measurement:25cm*25cm*26cm/CTN
Type: 72V5000W
Weight: 11.6kgs/unit
 Measurement:25cm*25cm*26cm/CTN




BLDC Motor
(HPM10KA)   Air Cooling

Model: HPM-10KW -- High Power BLDC Motor
Voltage:48V/72V/96V/120V
Rated Power:8KW-20KW
Efficeincy: 91%
Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V
Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120v
Speed: 2000-6000rpm (customizable)
Weight:17Kgs Casing: AluSmartum
Length (height): 170mm Diameter: 206mm
Type: 48V/10KW
Weight: 17kgs/unit
Type: 72V/10KW
Weight: 17kgs/unit




BLDC Motor
(HPM10KL) Liquid Cooling

Model: HPM-10KW -- High Power BLDC Motor
Voltage:48V/72V/96V/120V
Rated Power:8KW-20KW
Efficeincy: 91%
Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V
Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120v
Speed: 2000-6000rpm (customizable)
Weight:17Kgs Casing: AluSmartum
Length (height): 170mm Diameter: 206mm
Type: 48V/10KW
Weight: 17kgs/unit
Type: 72V/10KW
Weight: 17kgs/unit
NEW! Innovative SINE WAVE Controller for 3KW/5KW/10KW/20KW BLDC Motor



Innovative
SINE WAVE Controller









Type: VEC200 Series(For 3KW Motor)
Voltage Range:48V/72V
Rated Current (Max): 200A
Features:
Field Oriented Control(Vector control), Super reliable,
 High efficiency, Smooth control, Programmable, Responsive.
48V200A
72V200A



Innovative
SINE WAVE Controller









Type: VEC300 Series (For 5KW Motor)
Voltage Range:48V/72V/96V
Rated Current (Max): 300A
Features:
Field Oriented Control(Vector control), Super reliable, High efficiency, Smooth control, Programmable, Responsive.
48V300A
72V300A
96V250A



Innovative
SINE WAVE Controller









Type: VEC500 Series (For 10KW Motor)
Voltage Range:48V/72V/96V
Rated Current (Max): 500A
Features:
Field Oriented Control(Vector control), Super reliable,
 High efficiency, Smooth control, Programmable, Responsive.
48V500A
72V500A
96V450A



Innovative
SINE WAVE Controller









Type: VEC700 Series(For 20KW Motor)
Voltage Range:72V/96V/120V
Rated Current (Max): 700A
Features:
Field Oriented Control(Vector control), Super reliable, High efficiency,
 Smooth control, Programmable, Responsive.
72V700A
96V700A
Program Kit
(PI-400I-VEC)

Model: PI-400 -- VEC FOC Controller Programming Kit
Easy Installation for PC/laptop with Windows OS
Easy USB Port Connection
Setup Parameters without Power-on Controller
Monitor Motor Performance Dynamically
Available for all Sine Wave controllers

Prod Model: HPM5000BL
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor: BLDC Air Cooling 48V 5 Kw Motor
Controller: 48V360A Brushless Controller
Foot Throttle: Casted Alusmartum Foot Throttle
Programm Kit: Setup Parameters Without Power-on Controller
Gear Bridge: Optional
High Power Li-on Battery: Optional
Certification: CE
