Linsheng International Enterprise Co., Ltd. >> Car Rearview Camera, Waterproof IP67

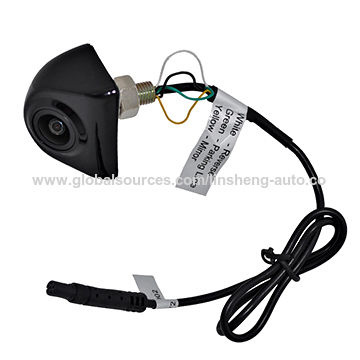

Car Rearview Camera, Waterproof IP67

Car Rearview Camera, Waterproof IP67
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: LS-CS01c
Definition: 380TVL
Chip: CMOS
Waterproof Grade: IP67

Product Description

Specifications:

1. Image sensor: 1/4" SOC CMOS

2. TV system: NTSC
3. Resolution: ≥420 TVL
4. Min. illumination: ≥0.5 lux (f/2. 0)
5. Image format: NTSC: 720 X 487
6. FOV (field of view):
H. FOV≥130°
V. FOV≥90°
D. FOV≥170°
7. Video signal: 1. 0Vp-p at 75ohm
8. Frame rate: 30fps
9. Sync. system: internal
10. Scanning system: 525 lines, 60 fields/sec.
11. S/N ratio: >46dB
12. Gamma value: 0. 45
13. Gain control: AGC 12dB (auto gain control)
14. BLC: auto
15. A. E. S: 1/60-1/100,000 sec.
16. White balance: auto (2500K-6500K)
17. Operating voltage: 9-16V DC
18. Normal voltage: 12V DC
19. Rated current: 40mA max
20. Operating temperature: -30 - +70°C
21. Storage temperature: -40 - +85°C
22. Operating humidity: within 90%RH
23. IP code: IP67 (camera unit)

Located at Guangzhou city south of China, LINSHENG INTERNATIONAL ENTERPRISE Co., Ltd specialized in automobile Safety and Security Systems and Accessories electronics with decade rich of experience.

Mainly of our products are Pickups Tonneau Cover Remote Control System, Wheelchair Platform Remote Control System, Commercial Vehicles Parking Sensors(wired and wireless), and Trucks Power Window Kits and Central Locking. Manufactured under strict quality control measures, products with CE, FCC certified by SGS; Which are ready for Europe, USA, Canada and Australia developed countries.

We can provide customized design and molding support, our R&D department 16 engineers team always standing by for your OEM and ODM projects. Addtionally, both software and hardware technicians always working in the meanwhile will speed up your projects finished and perfected in a shorter time.

To work with a qualified and reliable supplier, please do contact us today!
