Car Painting Spray Booth with Direct Firing with Gas Line Burner

Name: Car Painting Spray Booth with Direct Firing with Gas Line Burner
Brand: ibuyautoparts.com
SKU: 716310042
Availability: InStock
Rating: 4.5 (76 reviews)

Price:	US $ 20000/Set
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Car Painting Spray Booth With Direct Firing With Gas Line Burner

Certification: CE
Management Certification: ISO9001: 2000
Warranty Time: 2 Years
Parameter:

Airflow	Internal Size(mm)	External Size(mm)	Heating Modes	Inlet/Exhaust fan	LED Ceiling Lights	LED Side lights	Empty Loaded Air Speed
Full downdraft	7000X4000X2800	7110x5760x3810	Gas	2X11KW	8 set/4X24W	8 set/2X24W	0.32 m/s
	8000X4000X2800	8110X5760X3810	Gas	2X11KW	8 set/4X24W	10 set/2X24W	0.28 m/s
	9000X4000X2800	9110X5760X3810	Gas	2X11KW	10 set/4X24W	12 set/2X24W	0.25 m/s

Energy-saving Hints

The spray booth itself is generally the largest energy user, since great volumes of pre-heated fresh air will have to be supplied to make up for contaminated exhaust air. These air volumes cannot be reduced at will, since health and safety standards set down by law have to be observed. A paint spray booth must provide adequate air exchange in order to control the concentration of flammable vapors.

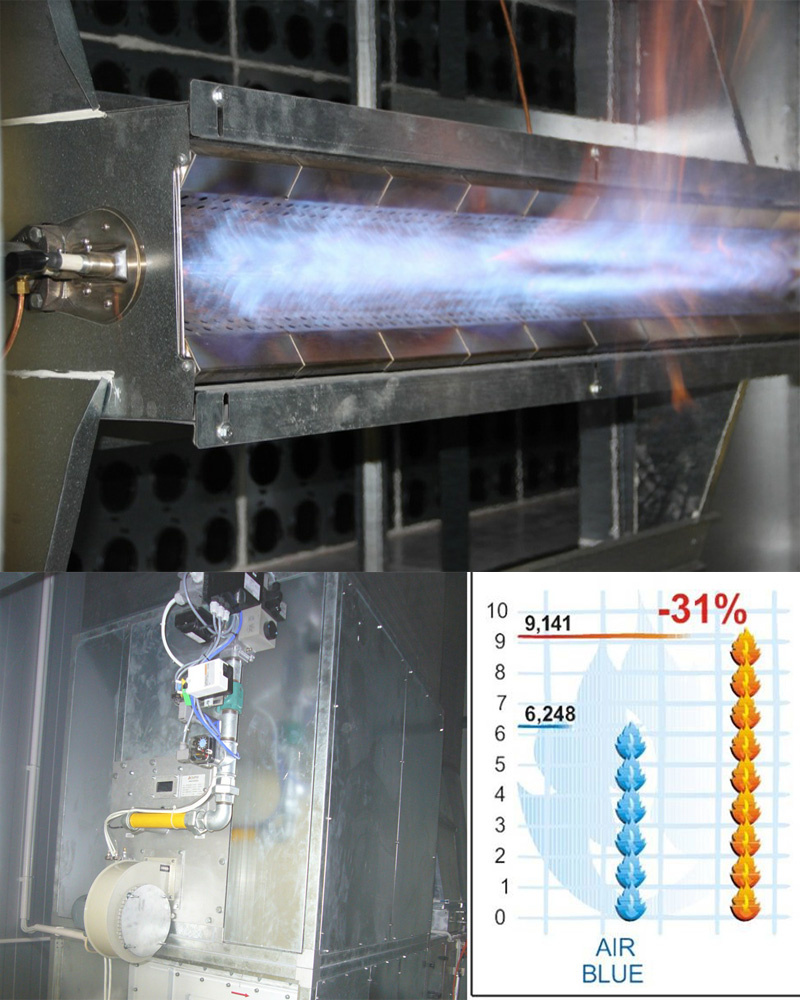

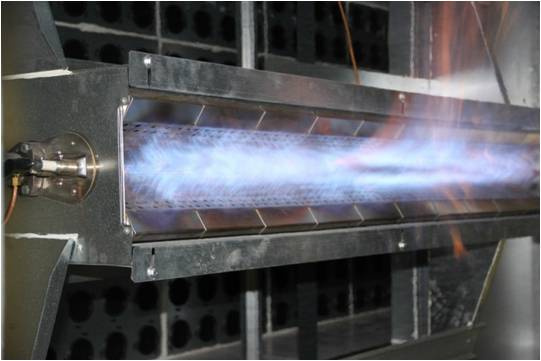

**Direct firing with gas line burners

The advantages are short heat-up times, exact temperature regulation (broad regulation range
of 30:1), low maintenance effort. Quick heating also makes for shorter drying periods.

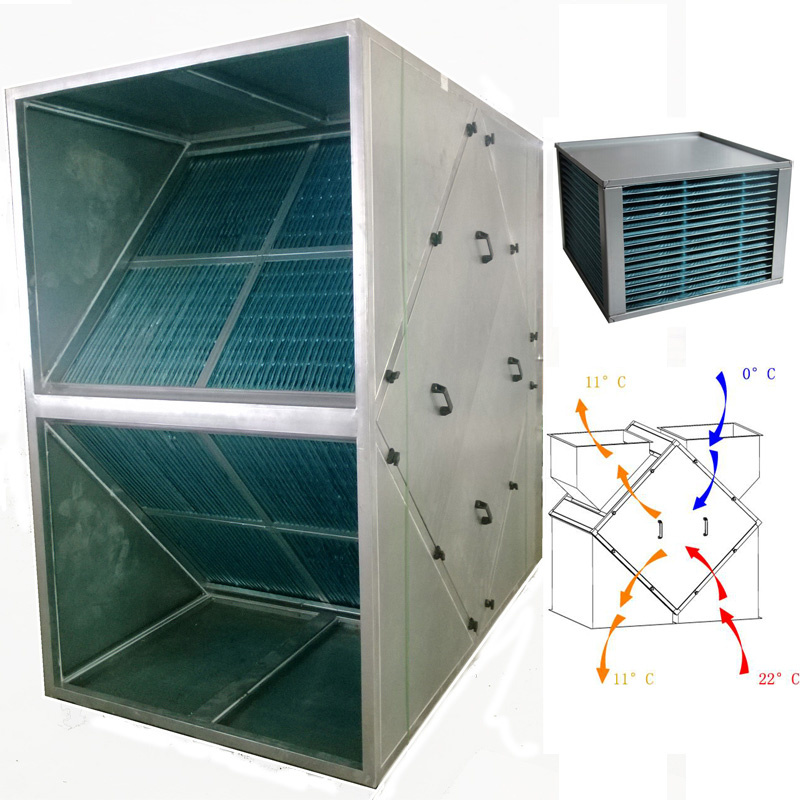

**Heat recovery

Cross plate heat exchangers are recuperative; moisture is not recovered.The heat passes through thin plates, with recovery levels of up to 38%.The air streams are strictly separated. Whenever solvents are used, the intake and exhaust streams have to be kept absolutely separate. That frequently makes the cross plate heat exchanger the perfect solution. The amortization period is short, often less than two years.

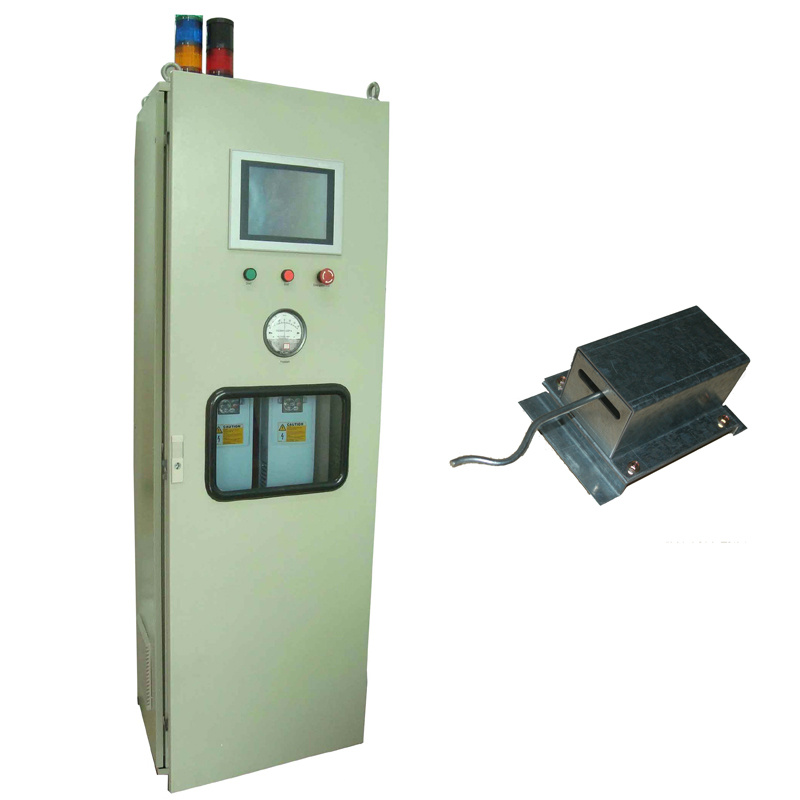

**Energy-saving circuitry

This circuitry offers the capability to reduce energy consumption to a minimum during breaks in operations or while setting up parts for finishing. The mechanism is triggered by hanging up the spray gun. Minimizing exhaust air reduces the energy required for heating the make-up air. Such circuitry is available in two versions. The first is an economical pneumatic damper control for smaller systems. The second is electrical control of the motors via the switchgear cabinet; here a frequency inverter is used to regulate the fresh air supply and exhaust fans.

Company Files

Prod Model:	Customized
Control System:	Inverter Control System
Technology:	German Technology
Warranty Time:	2 Years
Touching Screen:	Yes
PLC Controller:	Yes
Energy-Saving System:	Cross Plate Heat Exchangers
Energy-Saving Circuitry:	Yes
HS Code:	8419899090
Certification:	CE
Airflow Direction:	Fully Undershot-type
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Infitech
Heating Mode:	Direct Firing

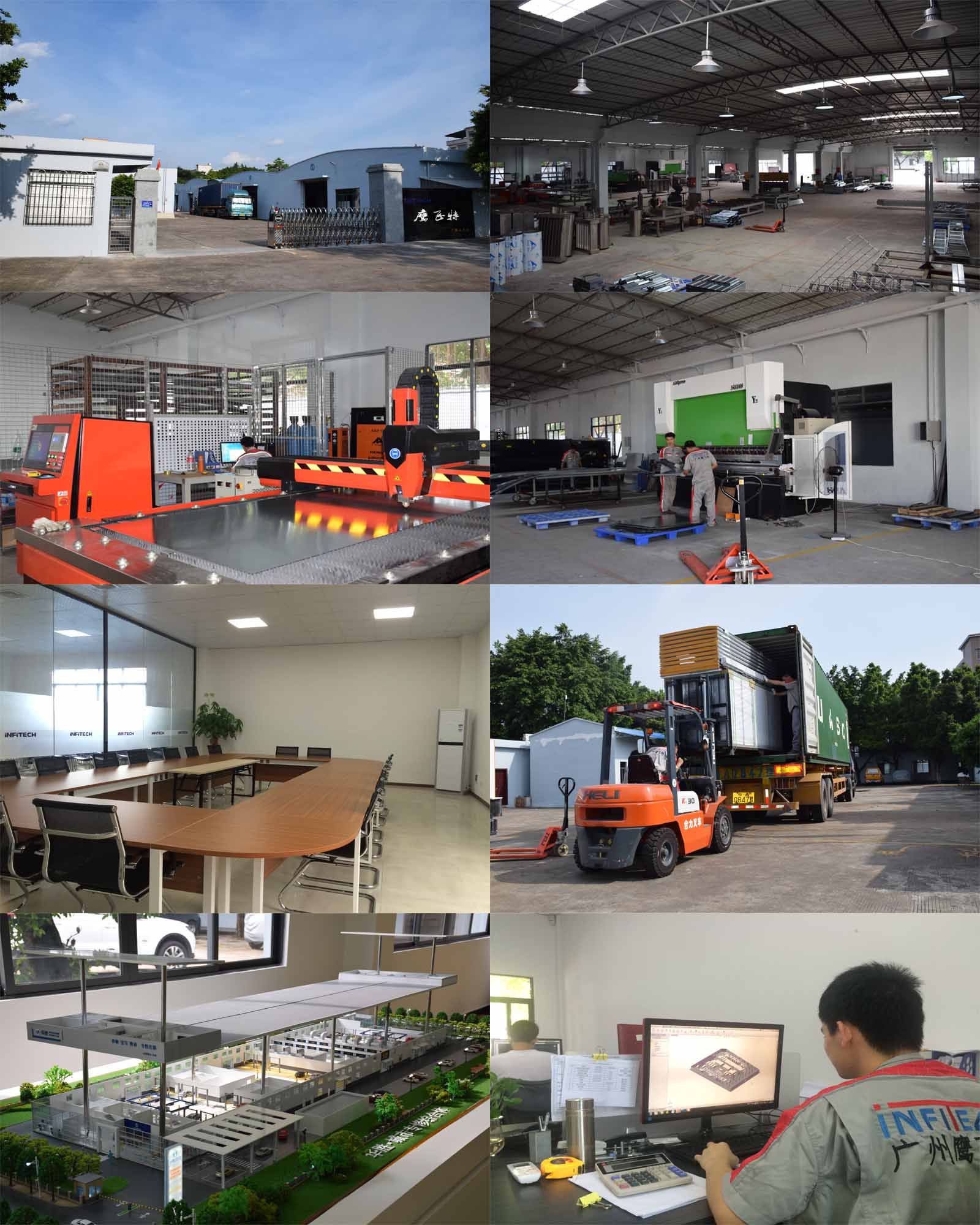

Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is a focus on industrial coating equipment research and development, design, manufacturing, technical consulting, sales, installation of high and new technology enterprise. We have a professional and experienced technical team, perennial exchanges and cooperation with design institutes, universities, undertake pretreatment, sandblasting, electrophoresis equipment; Grinding, drying equipment, dust removal, paint on the surface andDust-free spray and automatic spraying production line.

Products used in cars, buses, trucks, special automobile and auto parts production, elevator manufacturing, locomotives, construction machinery, military industry, machine tool, plastic spraying, and many other industries. Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. Adhering to the "continuous learning, continuous innovation, the pursuit of excellence, Shared success" business philosophy, to comply with the needs of modern industry of coating equipment products, carefully committed to the new technology, new material, the use of new technology, research and development and innovation, to ensure that provide customers with competitive solutions and high quality service.
