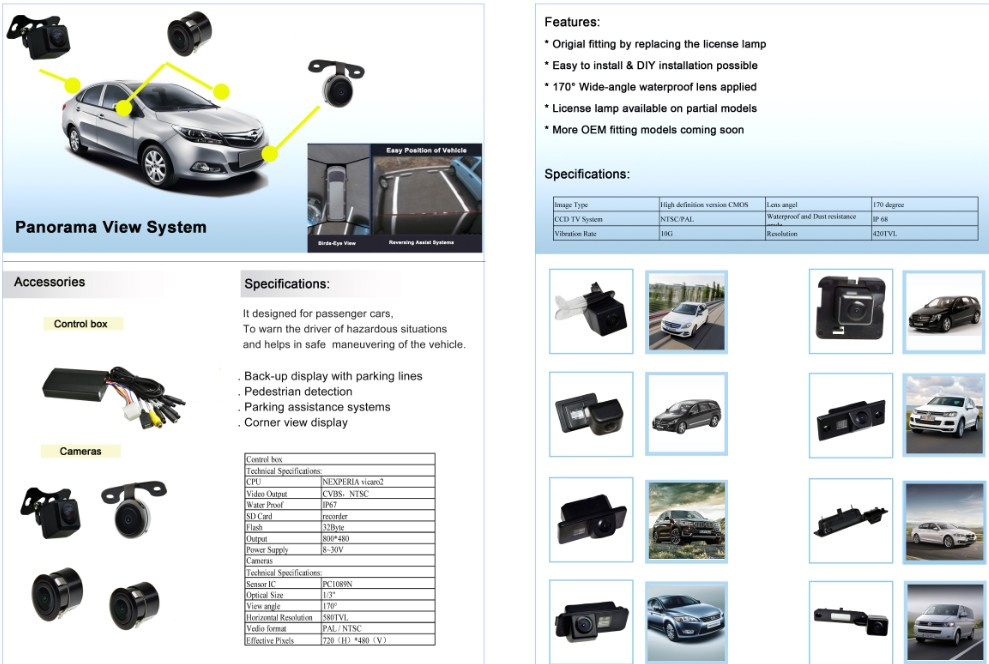

Car 360 Bird View System
| Price: |
US $ 120/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
Main Features- Advanced fisheye image correction and transformation technology, the real seamless splicing, natural picture
- Panoramic view of multiple combination switch
- Panoramic view function and 4 channel video encoding is applicable in one chip
- Convenient one-click set-up function, suitable for all kinds of models
- DSP compliant to vehicle request test criteria i.e. AEC-Q100
- The DWDR algorithm makes the 4 channel images Brightness balanced
- The product supports max.32G Micro SD or USB
- Reserved four channel video output interfaces for monitoring
Specification
| index | Item NO: BR-360S | Description |
| control box |
| 1 | Name | Birdview parking assistance system for bus |
| 2 | CPU | NEXPERIA vicaro2 |
| 3 | DDR | 256MByte |
| 4 | Flash | 16MByte |
| 5 | Video Input | CVBS,NTSC/PAL |
| 6 | Video Output | CVBS,NTSC/PAL |
| 7 | Video Compression Specifications | H.264,4 channel CIF or 1 channel D1 |
| 8 | Resolution | 520TV Lines |
| 9 | Power Supply | DC9V-DC32V |
| 10 | Current Consumption | 24V :120±10mA(Infrared lamp is closed) |
| 11 | Operating Temperature | -30ºC--+80ºC |
| 12 | Storage Interface | Micro SD, USB2.0 |
| 13 | SNR | >48dB |
| 14 | Video Output Level | 1.0V±0.2 Vp-p |
| 15 | Video Output Resistance | 75Ω |
| cameras |
| 1 | Name | Cameras of Birdview Parking Assistance System for Bus |
| 2 | Current Consumption | 24V :120±10mA (Infrared light on) |
| 3 | Power Supply | DC 9-32V |
| 4 | Sensor IC | PC1089 |
| 5 | Effective Pixels | 762×504 |
| 6 | TV System | PAL |
| 7 | Video output | Colorful video out 1.0Vp-p 75(ohm) load |
| 8 | Resolution | 520TV Lines |
| 9 | FOV | (Horizontal) 180±5 ;(Vertical) 130±5 |
| 10 | Minimum illumination | 0 Lux |
| 11 | Image | Preimage of the front/left/right camera, Mirror image of the rear camera. |
| 12 | Infrared
startup environment | <10±0.2Lux |
| 13 | Infrared closed environment | >20±0.2 Lux |
| 14 | Infrared irradiation distance | >10±1m |
| 15 | Coordinate Line | NO |
| 16 | IR light | YES (two IR-3) |
| 17 | Water Proof | GB-IP69 |
| 18 | Operating Temperature | -20ºC to +70ºC |
| 19 | Infrared irradiation distance | >10±1m |
| 20 | Coordinate Line | NO |
| 21 | IR light | YES (two IR-3) |
| 22 | Water Proof | GB-IP69 |
| 23 | Operating Temperature | -20ºC to +70ºC |
Product List
| item | name | specification | quantity |
| 1 | Control box | L190mm*W159mm*H48.6mm | 1PC |
| 2 | Remote Control | | 1PC |
| 3 | Power and Control Cable | DB44 | 1PC |
| 4 | cameras | L88.6mm*W60.9mm * H68.35mm | 4PCS |
| 5 | Camera extension Cable | Navigation dead end line(male to mother)L=15000mm | 3PCS |
| 6 | Camera extension Cable | Navigation dead end line(male to mother)L=20000mm | 1PC |
| 7 | screw | PA3.5*15 stainless steel natural color ROHS | 12PCS |
| 8 | screw | PM3*8 stainless steel natural color ROHS | 24PCS |
| 9 | spring cushion | OD=5MM ID=3.3MM thickness=1.0MM ROHS | 24PCS |
| 10 | Hole location stickers | L75*W54*H18mm | 4PCS |
| 11 | rubber blanket | The black nitrile butadiene rubber
70-80degree | 4PCS |
| Prod Model: |
BR-360C |
| Model No.: |
Br-Bsdvr04 |
| Storagy: |
Support SD Card |
| Wireless: |
Support GPS, 3G, WiFi for Optional |
| Video: |
4 Chnnals Video Input, 1 Channal Video Output |
| Export Markets: |
Global |
| Audio: |
2 Channal Audio Input, 1 Channal Audio Output |
| Alarm: |
Multiple Sensor Alarm and Alarm Linkage |
| Voltage: |
8-36V Wide Range Voltage Input |
| PTZ: |
Support Local and Remote PTZ Control |
| Interface: |
BNC\VGA\HDIM |
| Compression Format: |
H.264 |
| Certification: |
Emark |
| Input Channels: |
16V-24V |
| Brand: |
Brvision |
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.
BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
