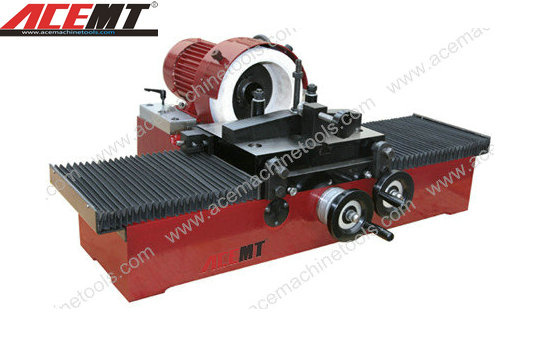

Cap and Rod Grinding Machine (DM100)

Name: Cap and Rod Grinding Machine (DM100)
Brand: ibuyautoparts.com
SKU: 773448835
Availability: InStock
Rating: 4.9 (111 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Product Description:
Cap and rod grinding machine is mainly used when grinding the connecting rod and its end faces for the engines of automobile, tractors and so on.

Structural features:
Longitudinal movement of grinding head with guide screw. Precise and convenient control of grinding removal by turning the handwheel with scales. The shim plate can be slightly adjusted to accurately regulate the degree of parallelism between the grinding face of workpiece and the end-face of grinding wheel so that the processing requirements can be fully satisfied with a high precision of grind. The lateral shifting of the trailing bar adopts the gear-rack structure to adapt to different grinding speeds, with an easy operation.

Parameters
Model	DM100
Max. outside dimension of cap	Φ 275 mm
Maximum thickness of the connecting rod	100 mm
Motor power	0.75 Kw
Overall dimensions(L x W x H)	920x750x 350 mm
Packing dimensions(L x W x H)	1360x890x 620 mm
N.W./G.W.	150/ 180 kg

Prod Model:	DM100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Maximum Thickness Of The Connecting Rod:	100 mm
Motor Power:	0.75 Kw

ACE MACHINE TOOLS Co., Ltd, is a specialized exporter and manufacturer of machine tools and accessories with a long history.

Our mechanical products cover more than 80 kinds including lathe, milling machine, drilling machine, grinding machine, power press, hydraulic guillotine, hydraulic press brake, CNC & automotive machines and so on.

Our customers are widespread in more than 30 countries including U. S. A., Germany, Spain, France, England, Greece, Finland, Norway, Canada, south America, Middle East, Australia, Africa and southeast Asia etc.

Our principle to all the customers is high quality and good service. We have quality control team who will carefully inspect every machine in workshop before packing.

Welcome you to visit our website and contact us. We will give you quick response upon any of your need.
