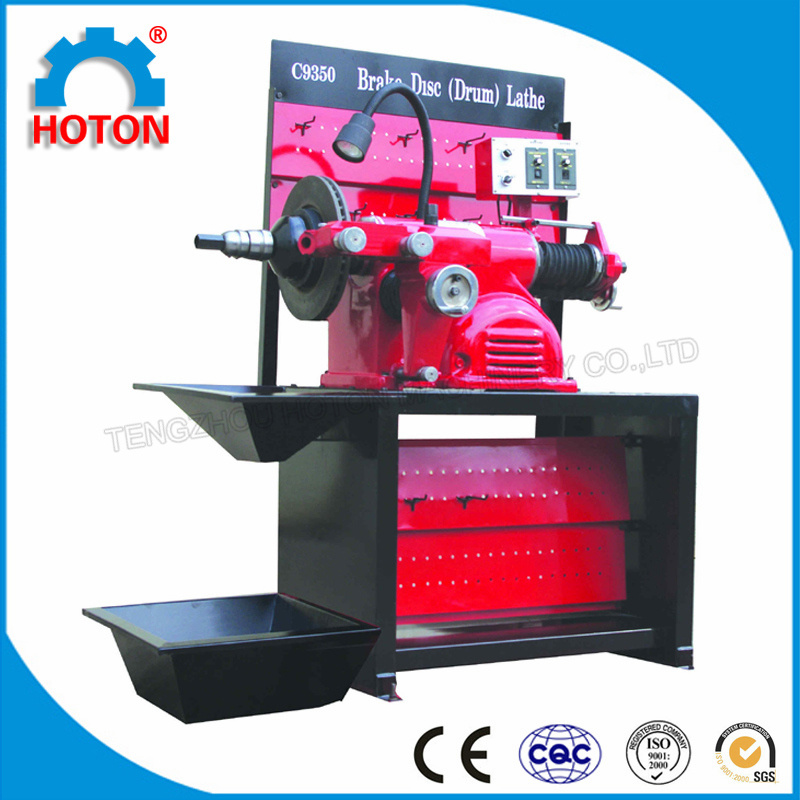

Brake Drum Lathe and Disc Cutting Machine (C9350)

Name: Brake Drum Lathe and Disc Cutting Machine (C9350)
Brand: ibuyautoparts.com
SKU: 714965452
Availability: InStock
Rating: 4.9 (112 reviews)

Price:	US $ 2000-3000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

BRAKE DRUM LATHE FEATURES:
1. The machine is main used for boring and repairing the brake drum and plate for pick-up truck,car and mini car.
2. The machine use horizontal structure, low center of gravity and easy to clamping.
3. Use bearing outer ring of brake drum as the locating datum, use dabber and taper sleeve can easy to made clamping ,boring and repairing the brake drum come true.
4. The machine are good in rigidity,quick in cutter speed,high in efficiency.In general you only should turning one time, the machine can reach your accuracy requirement.
5. The machine is variable speed control without step,easy to operate, easy to repair, on the safe side.
SPECIFICATIONS:

MODEL		C9350
Range of processing	brake drum	Φ152-Φ500mm
	Brake plate	Φ180-Φ330mm
Max depth of processing brake drum		175mm
Rotor thickness		1-7/8" (48mm)
Spindle Speed		70,80,115r/min
Spindle feed speed		0.002"-0.02" (0.05-0.5mm)Rev
Cross feed speed		0.002"-0.02" (0.05-0.5mm)Rev
Max processing depth		0.5mm
Machine Power		0.75kw
Motor		110V/220V/380V,50/60HZ
NW/GW		300/350KG
Overall Dimension (L×W×H)		970×920×1140mm
Packing Dimension (L×W×H)		1220×890×1450mm

Andy Wang

TENGZHOU HOTON MACHINERY CO.,LTD
Tel:0086 632 5633796
MP:0086 13506328892
www.hotonmachinery.com

Company Profile:

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers.

Quality first,Constantly perfecting skills.

Prod Model:	C9350 C9335 C9365
Speed:	115rpm
Color:	Blue or Red
Precision:	High Precison
Motor:	0.75KW
Weight:	350Kgs
Certification:	CE
Update Method:	by Hard Disk
Type:	Horizontal Lathe
