Brake Cutting Lathe Machine (Brake Drum Disc Lathe T8465)

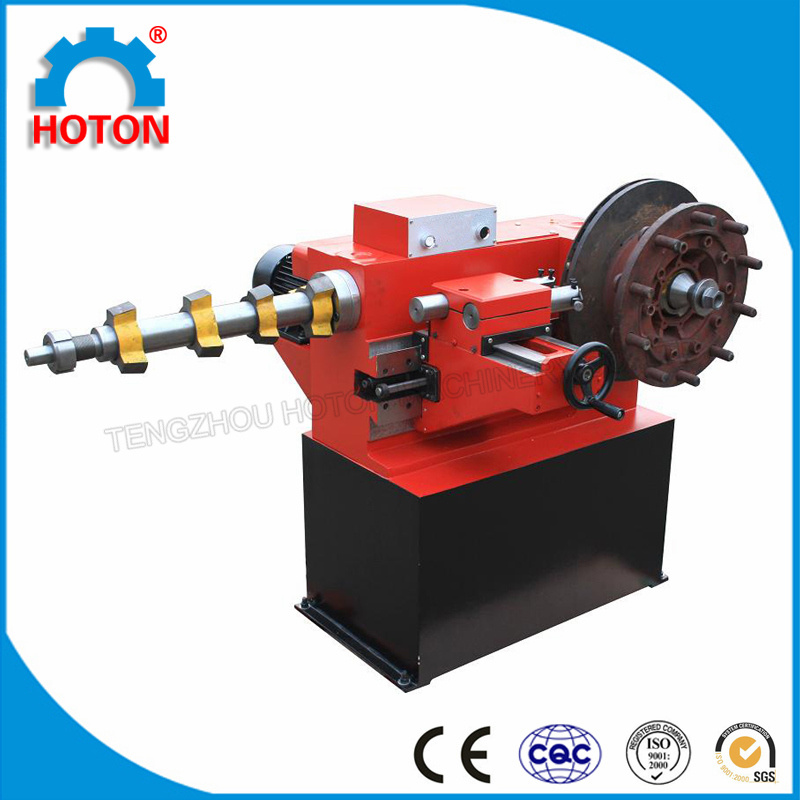

Name: Brake Cutting Lathe Machine (Brake Drum Disc Lathe T8465)
Brand: ibuyautoparts.com
SKU: 714967932
Availability: InStock
Rating: 5 (23 reviews)

Price:	US $ 1000-3000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

BRAKE DRUM DISC LATHE MACHINE
1. The Brake drum/disc cutting machine is for repairing the brake drum or brake disc from mini car to heavy trucks.
2. It is a kind of infinitely veriable speed lathe.
3. It can fulfill the reparation of the brake drum disc and shoe of auto-mobiles from mini-car to medium heavy trucks.
4. The unusual feature of this equipment is its twin-spindle each other perpendicular structure.
5. The brake drum/shoe can be cut on the first spindle and the brake disc can be cut on the second spindle.
6. This equipment has higher rigidity, accurate workpiece positioning and is easy to operate.
SPECIFICATIONS:

MAIN SPECIFICATIONS		T8445	T8465	T8470
Processing Diameter mm	Brake Drum	180-450	≤650	≤700
Processing Diameter mm	Brake Disc	≤420	≤500	≤550
Rotating Speed of Work-piece r/min		30/52/85	30/52/85	30/54/80
Max. Travel of Tool mm		170	250	300
Feeding Rate mm/r		0.16	0.16	0.16
Packing Dimensions (L/W/H) mm		980/770/1080	1050/930/1100	1530/1130/1270
N.W/G.W kg		320/400	550/650	600/700
Motor Power kw		1.1		1.5

Contact Us:

Andy Wang

TENGZHOU HOTON MACHINERY CO.,LTD
Tel:0086 632 5633796
MP:0086 13506328892
www.hotonmachinery.com

Company Profile:

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers.

Quality first,Constantly perfecting skills.

Prod Model:	T8465 T8445
Max.Travel Of Tool:	170mm
Color:	Blue or Red
Precision:	High Precison
Motor:	1.1KW
Weight:	400Kgs
Certification:	CE
Update Method:	by Hard Disk
Type:	Horizontal Lathe

Company Profile

Tengzhou Hoton Machinery Co., Ltd was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46, 000 square meter, general assets 30, 000, 000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines, Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories. Some products have national patent. It has fourteen series, over eighty models by itself. It has the ability of making 100, 000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co., Ltd. is willing to make common progress and developments with all the customers.

Quality first; Constantly perfecting skills.
