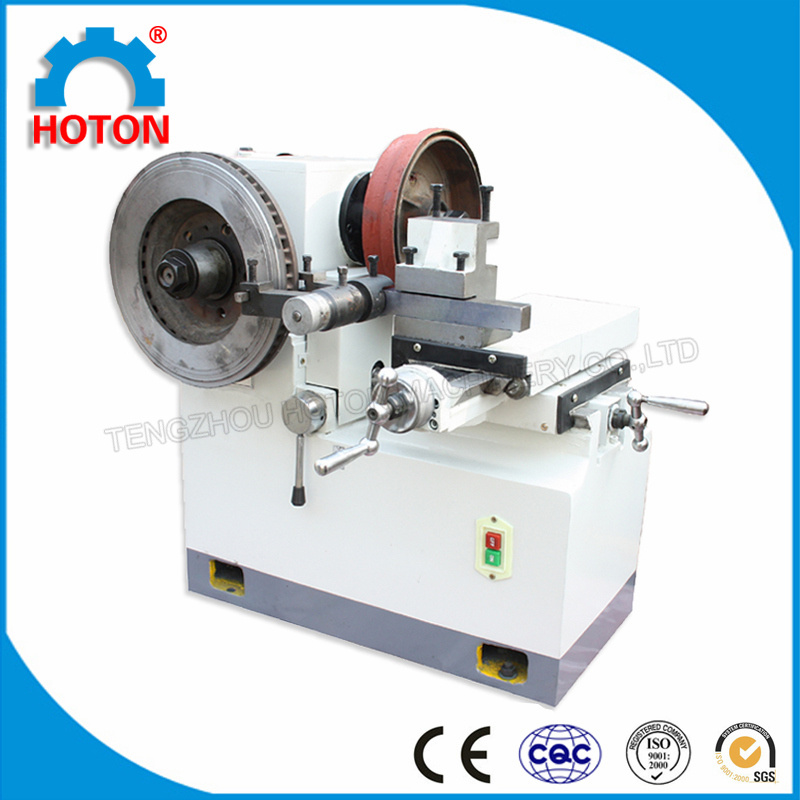

Brake Disk Drum Lathe ( Disc Cutting Machine C9335)
Price: |
US $ 2000-3000/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
BRAKE DRUM DISC LATHE FEATURES: 1. Quickly, accurately and efficiently to cutting rotor. 2. Fast and slow setting allow cutting rotor. 3. Quickly, accurately and efficiently to cutting drum. 4. Finitely adjustable setting allow cutting drum. 5. Three kinds of speed 70, 88, 118 rpm to choose for spindle speed. 6. A convenient design allows to quickly change from rotor to drum, with cross feed extension plate will be increase the maximum rotor diameter to 22'/588mm. 7. Position of stop make the lathe stop automatically after cutting. 8. Fully equipped with adapter package.SPECIFICATIONS:SPECIFICATION | UNIT | C9335 |
Range of processing diameter | Brake drum | mm | φ180-φ350 |
Brake plate | mm | φ180-φ350 |
Rotating speed of workpiece | r/min | 75/130 |
Max. travel of tool | mm | 100 |
Overall dimension(LxWxH) | mm | 695x565x635 |
Packing dimension(LxWxH) | mm | 750x710x730 |
N.W/G.W | kg | 200/260 |
Motor power | kw | 1.1 |
Contact Us: |
Andy Wang
TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 www.hotonmachinery.com |
Company Profile: |
Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers.
Quality first,Constantly perfecting skills. |
Prod Model: |
C9335 C9350 C9365 |
Max. Travel Of Tool: |
100mm |
Color: |
Blue or Red |
Precision: |
High Precison |
Motor: |
1.1KW |
Weight: |
260kgs |
Certification: |
CE |
Update Method: |
by Hard Disk |
Type: |
Horizontal Lathe |
Company Profile
Tengzhou Hoton Machinery Co., Ltd was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46, 000 square meter, general assets 30, 000, 000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.
The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines, Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories. Some products have national patent. It has fourteen series, over eighty models by itself. It has the ability of making 100, 000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.
Tengzhou Hoton Machinery Co., Ltd. is willing to make common progress and developments with all the customers.
Quality first; Constantly perfecting skills.
