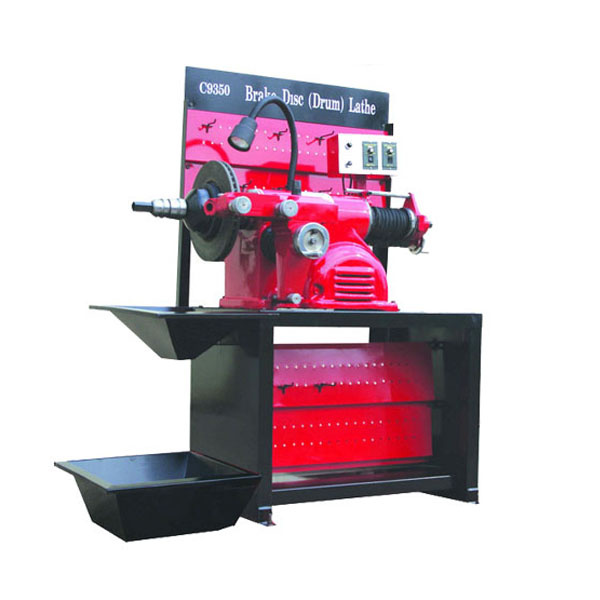

Brake Disc Lathe machine for metal(C9350 )
Advantage:
1. Brake lathe;
2. Cutting drum & rotor;
3. 3kinds of spindle speed;
Main Features:
1. Quickly, accurately and efficiently to cutting rotor.
2. Fast and slow setting allow cutting rotor.
3. Quickly, accurately and efficiently to cutting drum.
4. Finitely adjustably setting allow cutting drum.
5. Three kinds of speed 70, 88, 118 rpm to choose for spindle speed.
6. A convenient design allows to quickly change from rotor to drum, with cross feed extension plate will be increase the maximum rotor diameter to 22'/588mm.
7. Position of stop make the lathe stop automatically after cutting.
8. Fully equipped with adapter package.
Specification:
| Model | C9350 |
| Range of processing | brake drum | Φ152-Φ500mm |
| | Brake plate | Φ180-Φ330mm |
| Max depth of processing brake drum | 175mm |
| Rotor thickness | 1-7/8" (48mm) |
| Spindle Speed | 70,80,115r/min |
| Spindle feed speed | 0.002"-0.02" (0.05-0.5mm)Rev |
| Cross feed speed | 0.002"-0.02" (0.05-0.5mm)Rev |
| Max processing depth | 0.5mm |
| Machine Power | 0.75kw |
| Motor | 110V/220V/380V,50/60HZ |
| Gross weight | 290 kg |
| Dimension (L×W×H) | 970×920×1140mm |
