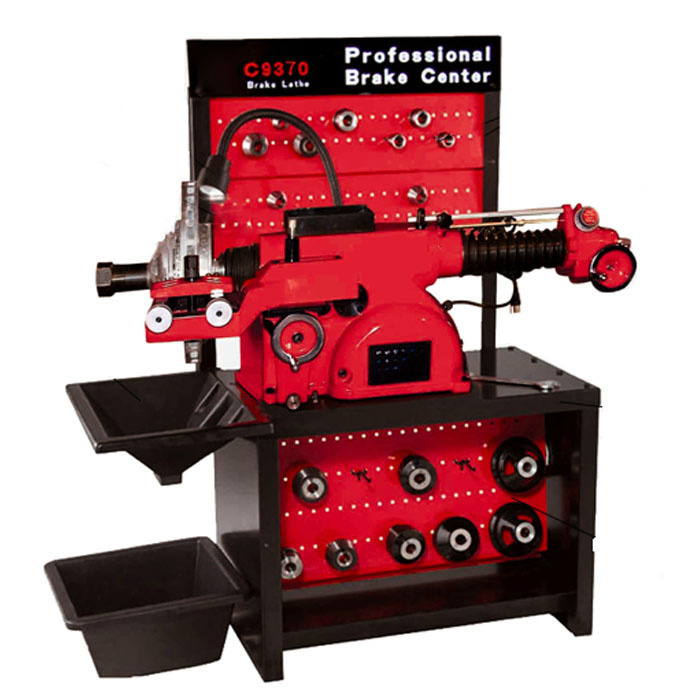

Brake Drums and Discs lathe Machine(C9370)
Machine Advantage:
1. Brake lathe;
2. Cutting drum & rotor;
3. 3kinds of spindle speed;
Main features:
1.C9370 brake lathe is capable of faster, more accurate and easier resurfacing the lathe
2.Infinitely adjustable feed rates allow you to easily modify cut drum
3.Fast and slow setting allow cutting the rotor
4.There are three kinds of spindle speeds to choose 70,88,118RPM
5.With cross feed extension plate will be increase the maximum rotor diameter to 22''/588mm
Specification:
| Model | C9370 |
| Rotor diameter(mm) | 180-457 |
| Rotor thickness(mm) | 102 |
| Drum diameter(mm) | 152-711 |
| Drum depth(mm) | 251 |
| Power | 1PH-3PH |
| Dimension(mm) | 1100×1070×1140 |
| Packing size(mm) | 1525×1270×1780 |
Standard accessories:
| No. | Description | Qty. |
| 1 | Main Machine | 1 |
| 2 | Lathe Bench(include 20 hooks) | 1 |
| 3 | Twin-Cutter Assembly(disc) | 1 |
| 4 | Spindle assembly (include sphere washer and nut) | 1 |
| 5 | Square wrench | 1 |
| 6 | Triangle tips | 3 |
| 7 | V-belt A610 | 1 |
| 8 | Dustproof Cover | 1 |
| 9 | Manual | 1 |
| 10 | Certificate | 1 |
| 11 | Toolbox | 1 |
| 12 | Double Taper Adapter 1.34"x1.66"(34x42mm) | 1 |
| 13 | Double Taper Adapter 1.36"x1.69"(35x43mm) | 1 |
| 14 | Double Taper Adapter 1.72"x2.06"(44x52mm) | 1 |
| 15 | Double Taper Adapter 2.06"x2.44"(52x62mm) | 1 |
| 16 | Double Taper Adapter 2.45"x2.81"(62x71mm) | 1 |
| 17 | Double Taper Adapter 2.84"x3.19"(72x81mm) | 1 |
| 18 | Double Taper Adapter 3.19"x3.54"(81x90mm) | 1 |
| 19 | Vibration Band | 2 |
| 20 | Spacer(5,10,20,25.4,50.8,50.8mm) | 6 |
| 21 | Hatch Wrench 27-30 | 1 |
| 22 | Special Wrench /T9 | 1 |
| 23 | Hub Localizer | 1 |
| 24 | Localizer Big Taper Cone 3.125"x4.25"(79x108mm) | 1 |
| 25 | Localizer Small Taper Cone 2.125"x3.25"(54x82.5mm) | 1 |
| 26 | Nut | 1 |
| 27 | Big Spacer 6.75"(171.5mm) | 1 |
| 28 | Small Spacer 5.25"(133mm) | 1 |
| 29 | Big Adapter 6.75"(171.5mm) | 1 |
| 30 | Small Adapter 5.25"(133mm) | 1 |
| 31 | Step Adapter 1"x2"(25.4x50.8mm) | 1 |
| 32 | Spring | 1 |
| 33 | Bend Wrench 78-85 | 1 |
Package informations:
1.packing size:1525×1270×1780mm
2.package in fully closed wooden case.
