| Prod Model: |
BEWR-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Alumunium |
| Own Weight: |
45kg |
| Type: |
Auto Ramp |
Product Description
1. INTRODUCTION

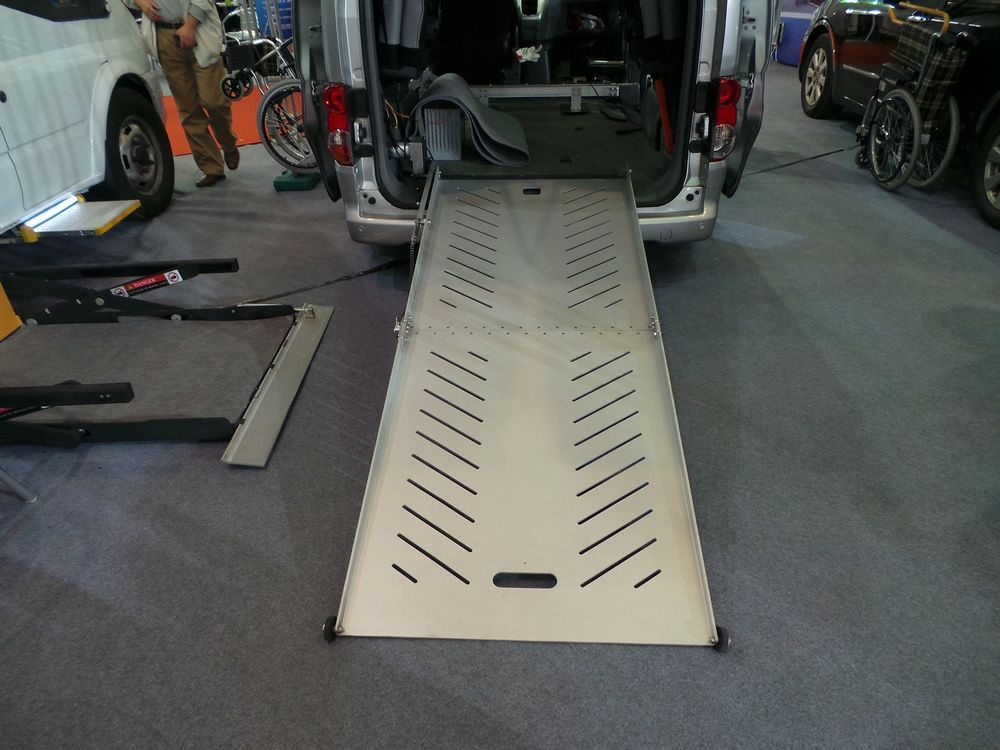

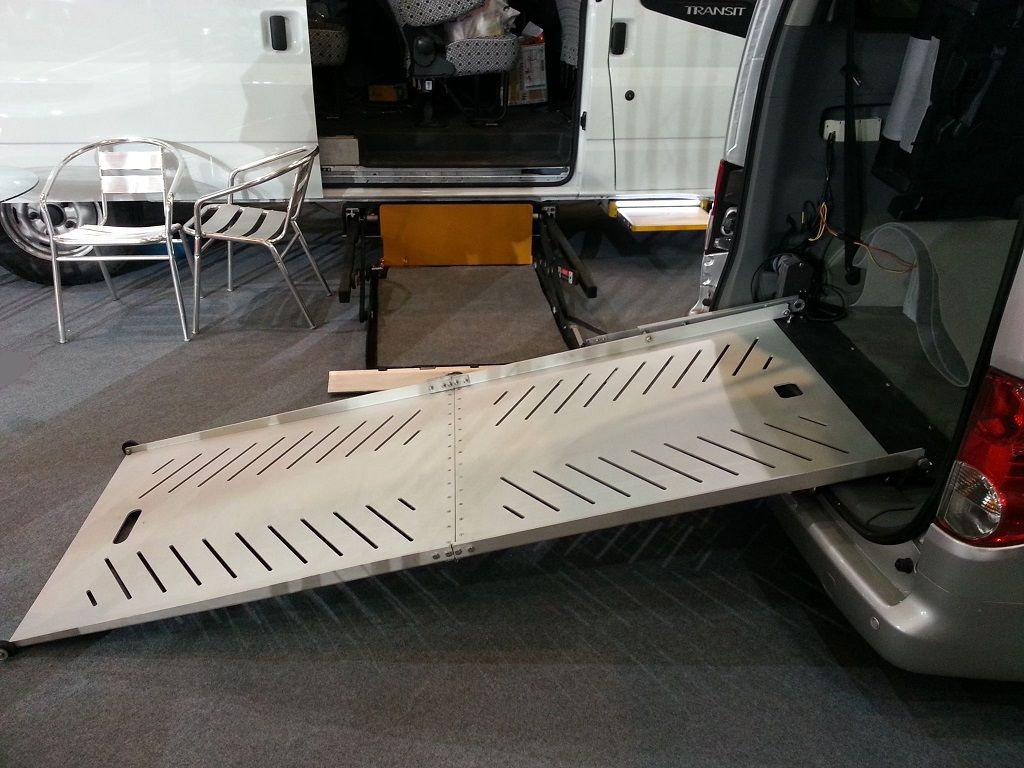

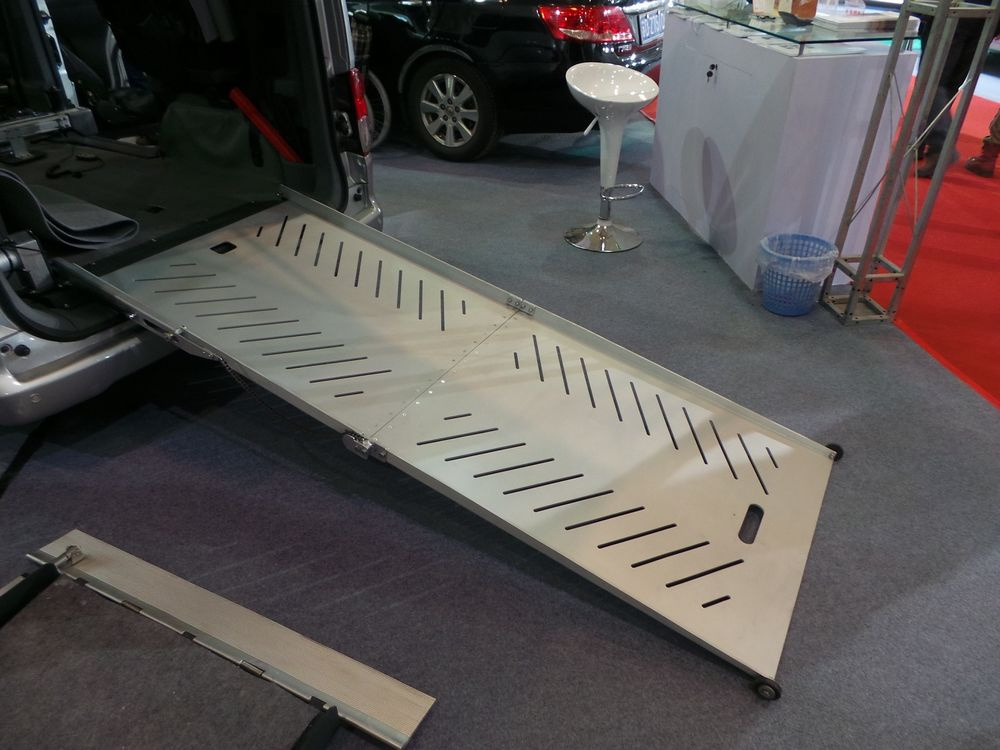

This electric wheelchair ramp is mainly combined with 2 pieces of ramps. The operation is very easy.
This ramp is wildly used for vehicle with high floor and limited installation room for ramp. This kind of ramp is your best choice.
The main material of this ramp is high-strength aluminunm alloy with ribbed plate, which is anti-skidding, light and with strong loading capacity.
Sometimes, according to customer's requirement, we can stick 3M anti-slip covering on ramp working surface.
Model | Drive Mode | Platform Size( mm) | overall width | Height after stow | volt | Loading Capacity | Installation |
| BEWR-1 | Electric | 2060*803 | 1085 mm | 1156mm | 12-24V | 350 KG | at rear door |
2. ADVANTAGES
Easy installation: this ramp will be assembled before delivery. User only needs to make installation room on floor. And then mount it according to right way in user manual, which is easy and simple.
Platform: the main material of platform is high-strength aluminunm alloy, which is light, strong loading capacity and excellent corrosion resistance
Less installation requirement: this ramp is mainly used for van, minivan and cars. It is installed at the rear door. It is installed on the floor, so there is no requirement of space under floor. If the floor height is less than 400mm, it is better.
3. DIMENSIONS
| Model | Platform Size | Overall Width when stowed | Overall height when stowed | Overall length when stowed | Loading Capacity |
| BEWR-1 | 2060*803mm | 1085 mm | 1156 mm | 251 mm | 350kg |
4. SPERCIFICATIONS
model: BEWR-1
loading capacity: 350 kg
own weight: 45kg
test: 100000 times
installation: at the rear door of vehicle
Safety function:
The main material of platform is high-strength aluminunm alloy, which is anti-skidding and with strong loading capacity
There is warning sticker at the edge of ramp

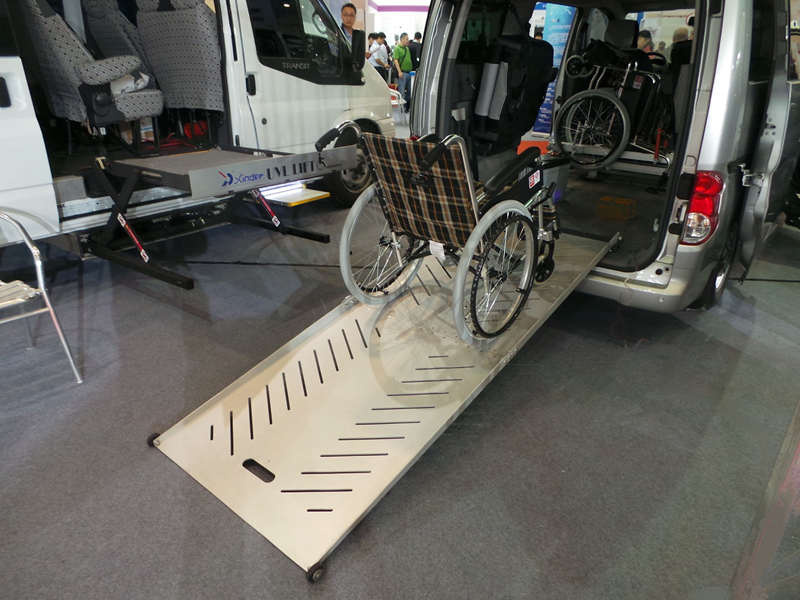

Installation: It is installed at the rear door of van, minivan or car. After this ramp unfolded, there is slop between vehicle floor and ground, which make wheelchair get into vehicle easily. and during working, this ramp will first reduce the floor height, so it can be widly used for van, minivan and car.
Adjustment: This series wheelchair ramp has several sizes for choice. Customer should inform us the size needed or the size of vehicle door, we will provide the suitable wheelchair ramp.
Operation:
When this ramp is needed, the driver should first stop vehicle, and pull brake.
And then press the switch to open/unfold ramp. There will be slop which makes entrance easy.
After wheelchair get into/out of vehicle, press the switch again to stow this ramp.
5. INSTALLATIOM ROOM
Net width of door: 1100 mm
Net height of door: 1200 mm
Accessible depth: 680 mm
Located in Changzhou New North District, Xinder-Tech Electronics (original Xinder Electronics) specializes in designing, manufacturing and selling wheelchair ramps, wheelchair lifts, electric step, manual step, wheelchair restraint system, seat fixing system, manual driving system, electronic accelerator pedal and other disabled products.
Xinder-Tech is the leader company of this line in China, and our products have taken up 90% of inner market. Meanwhile, our products has been exported to may countries, such as France, Italy, New Zealand, Finland, Brazil, Poland, Costa Rica, Korea, Australia, Malaysia, Bulgaria, Turkey, Israel, Philippines, Iran, India, South Africa and so on. Service includes R&D of product, manufacture, system debugging, on-site field visit to customer. Main engineers occupy 40% of staffs, with good experience, and they have been professionally and systemically trained in America, Italy, Malaysia and Brazil.
There are over 3000 ramps used for the Beijing Olympics, over 700 ramps exported to Korea. 100 PCS of WL-UVL wheelchair lift, about 500 PCS of electric wheelchair ramp and more than 1000 sets of wheelchair tie down system to Guangzhou Asia Game.
Our goal is to provide the best solutions for customer's requirements.
Xinder-Tech is an ISO 9001: 2016 compliant company. Our WL-D series wheelchair lift, WL-UVL series wheelchair lift, WL-T series wheelchair lift and ES Series electric step have got CE certificate, and EWR series wheelchair ramp has passed the EMC test, wheelchair tie down system has passed test of ISO 10542-2.
