Qingdao Risense Mechatronics Co., Ltd.
Since Jan 1st, 2010, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on.

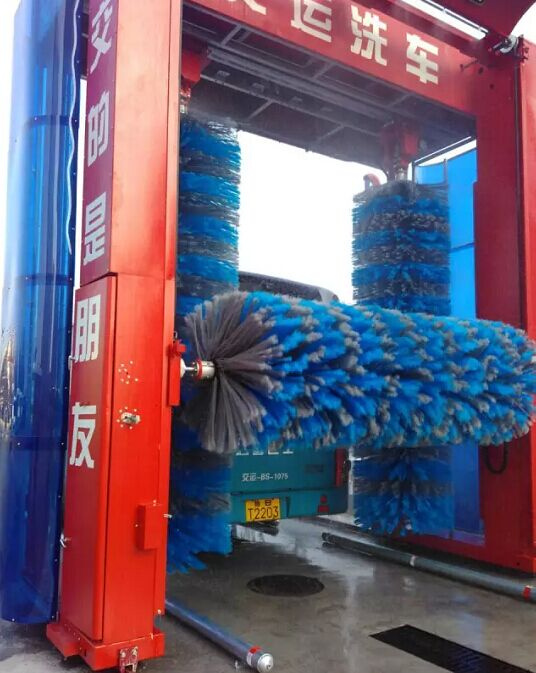

Bush/lorry washing machine
Equipment introduction ..................
Risense bus & truck wash system is equipped with two-key washing system for easy operation; self-detection of faults for easy failure recovery; program intelligence for free washing procedures; the tilted side brush improving the cleaning performance. And it also has other features as follows:
1.Hot-dip galvanized steel frame can keep the whole machine stable and long life use.
2.PLC electronic control system can easy to operate and maintenance.
3.The dovetail foam and nylon brushes keep the bus body no damage and quite clean.
4.High pressure water washing and shampoo sprinkling.
5.Main parts and motors from abroad keep the machine great running performance.
6.Its ideal for bus wash and repair center, logistics company and public transport company.
7) With one year warranty and lifelong maintenance service.
8) Technician to customer site installation and maintenance training.
Specification ..................
| Model | CB-720
(Reciprocating) | CB-730
(Reciprocating) | CB740
(Drive- through) | CB-750
(Drive- through) |
| Machine dimension | 2.15x4.68x5.2m | 2.15x4.68x5.2m | 2.15x4.68x5.2m | 2.15x4.68x5.2m |
| Assembling range | 21x5.2m | 21x5.2m | 21x5.2m | 21x5.2m |
| Available size for car | L≤14x2.7xH≤4.2m | L≤14x2.7xH≤4.2m | L≤14x2.7xH≤4.2m | L≤14x2.7xH≤4.2m |
| Main voltage | 380v 3phase 50HZ | 380v 3phase 50HZ | 380v 3phase 50HZ | 380v 3phase 50HZ |
| Total power | 8.48kw | 8.86kw | 9.26kw | 9.66kw |
| Water supply | DN25mm water flow rate≥120L/min | DN25mm water flow rate≥120L/min | DN25mm water flow rate≥120L/min | DN25mm water flow rate≥120L/min |
| Air pressure | 0.75-0.9MPa Air flow rate≥0.6m³/min | 0.75-0.9MPa Air flow rate≥0.6m³/min | 0.75-0.9MPa Air flow rate≥0.6m³/min | 0.75-0.9MPa Air flow rate≥0.6m³/min |
| Shampoo consumption | 25-30ml/car | 25-30ml/car | 25-30ml/car | 25-30ml/car |
| Washing time | 4''/car | 4''/car | 4''/car | 4''/car |
| Car wash capacity | 12-15cars/hour | 12-15cars/hour | 12-15cars/hour | 12-15cars/hour |
| Top brush | / | 1 set | / | 1 set |
| Big side brush | 2 set | 2 set | 4 set | 4 set |
Since Jan 1st, 1998, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on. The advanced technology reaching the same level of foreign counterparts and the technical elites cultured by the Risense with the support of cooperative partners ensure the quality of products and make them the best-sellers. Since the date that our products entering the market, Risense has built its reputation as the high-end technical innovation enterprise with its strong technical capacity holding a safe lead of more than 15 years against other insiders and applause of customers for the quality and operational security of products.

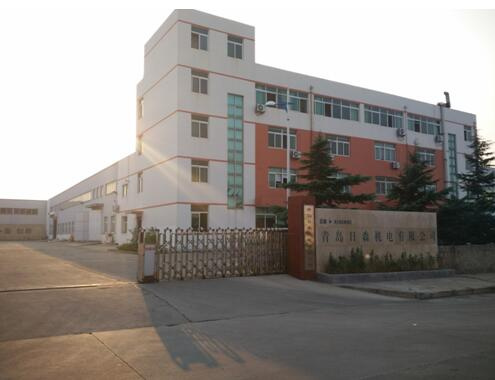

Located at Haier Industrial Park of Economic and Technological Development Zone, Qingdao, Risense covers a total area of 40 mu with floor area of more than 10000 square meters and plants in service of more than 7000 square meters. At present, Risense boasts to possess more than 120 personnel, including 32 senior technicians and the annual production capacity of 1000 car wash machines.
To answer the urgent call of customers, Risense has been launching a series of high-tech and high cost performance car wash machines since March, 2010 to effectively meet customer demands of less manpower, high efficiency, water conservation and environmental protection.
